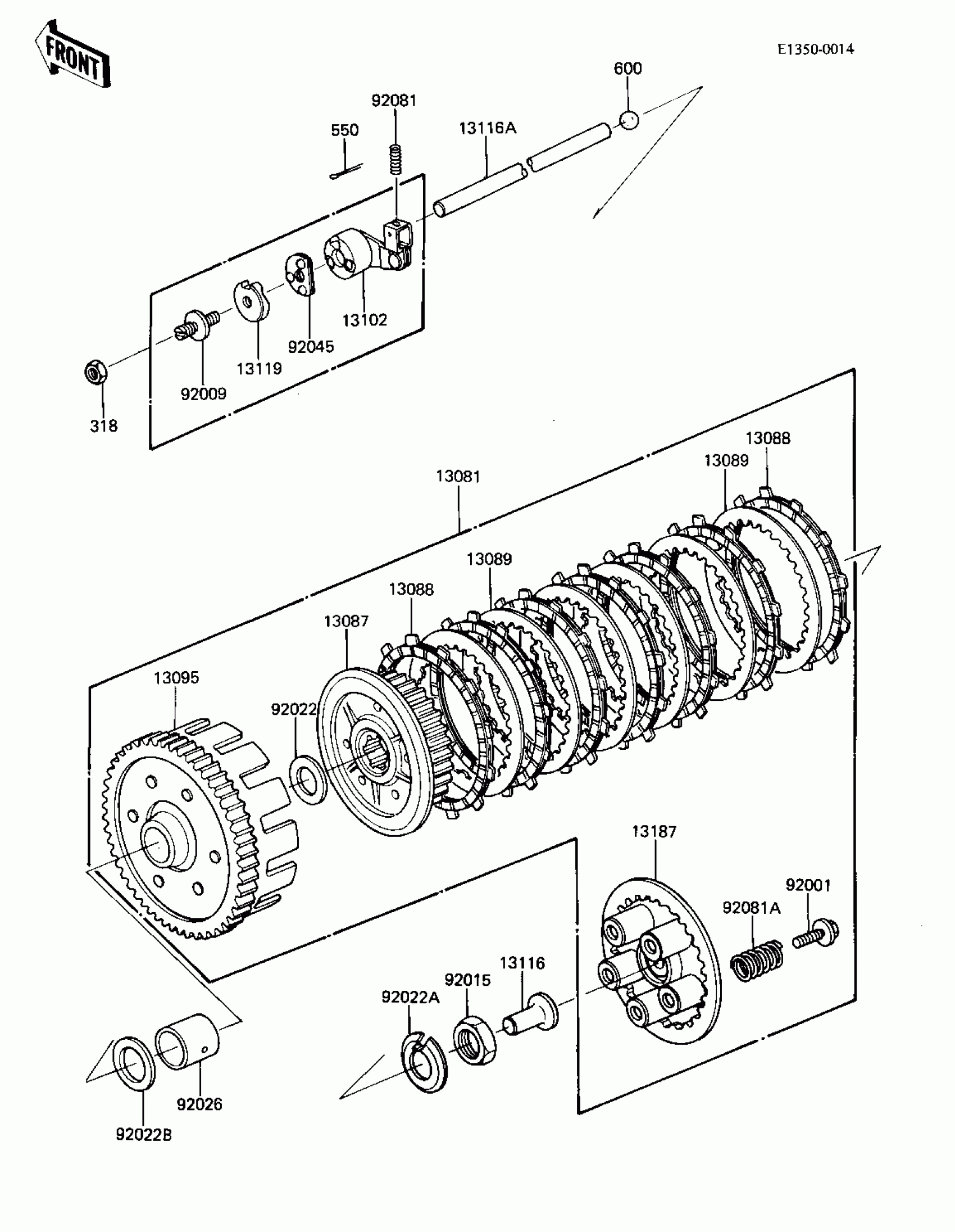

Kawasaki CSR CLUTCH (KZ305-A1) Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1048

Unavailable

13087

HUB-CLUTCH

13087-1005

Unavailable

13088

PLATE-FRICTION

13088-1009

Unavailable

13089

PLATE-CLUTCH,T=2.0

13089-1005

$10.14

13095

HOUSING-COMP-CLUTCH

13095-1020

Unavailable

13102

RELEASE, CLUTCH

13102-1004

Unavailable

13116

ROD-PUSH,CLUTCH

13116-1010

Unavailable

13116A

ROD-PUSH,CLUTCH,7X242

13116-1031

Unavailable

13119

CAM-RELEASE,CLUTCH

13119-1003

$15.92

13187

PLATE-CLUTCH OPERATIN

13187-1009

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$4.93

92009

SCREW,8MM

92009-1009

Unavailable

92015

NUT,20MM

92016-028

$7.86

92022

WASHER,25.5X38X2

92022-1075

Unavailable

92022A

WASHER,LOCK

92022-1142

$4.17

92022B

WASHER,25.5X38X1

92022-145

$7.22

92026

SPACER,CLUTCH

92026-1052

$14.34

92045

BEARING,BALL,CLUTCH

92045-1001

$9.19

92081

SPRING,CLUTCH RELEASE

92081-069

$5.98

92081A

SPRING,CLUTCH

92081-1078

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.63

550

PIN-COTTER,1.6X15

550D1615

$2.08

600

BALL-STEEL,3/8"

600A1200

$1.32
