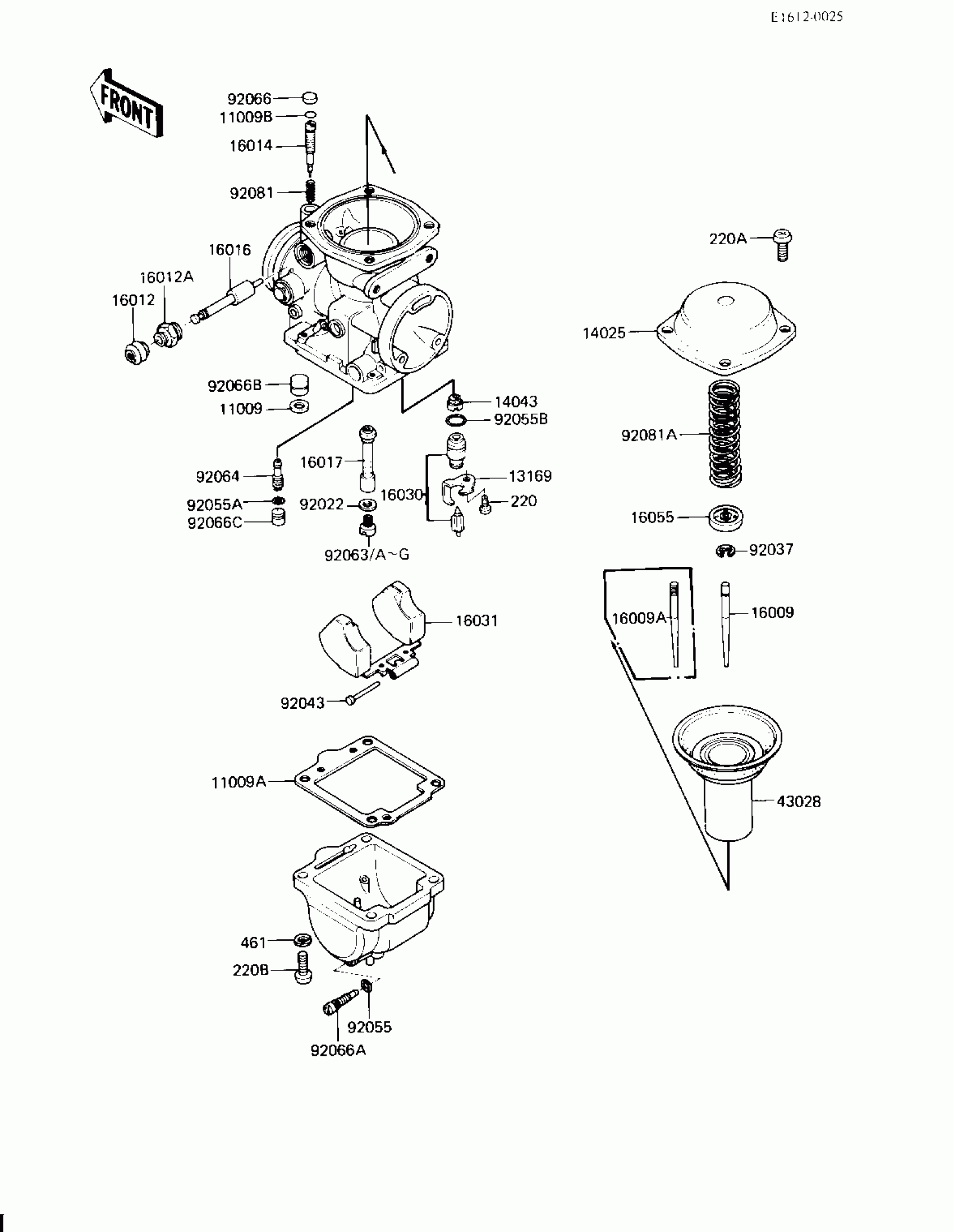

Kawasaki CSR CARBURETOR PARTS ('83 H3) Diagram

#

Description
Price

11009

GASKET,CARB. PLUG

11009-1240

Unavailable

11009A

GASKET,FLOAT CHAMBER

11009-1241

Unavailable

11009B

GASKET,"O"RING

16038-022

$5.85

13169

PLATE,FLOAT VALVE

13169-1482

$7.14

14025

TOP-CHAMBER,MIXING

14025-1395

$88.71

14043

FILTER,FLOAT VALVE

14043-1010

$14.68

16009

NEEDLE-JET,4D30

16009-1098

$12.63

16009A

NEEDLE-JET,4D31 (Canada)

16009-1099

Unavailable

16012

CAP-STARTER PLUNGER,RUBBER

16012-1010

$23.28

16012A

CAP-STARTER PLUNGER

16012-1011

$15.61

16014

SCREW-PILOT AIR

16014-1014

$25.85

16016

PLUNGER

16016-1019

$48.58

16017

JET-NEEDLE,Y-7

16017-1097

Unavailable

16030

VALVE-FLOAT,2.3

16030-1018

Unavailable

16031

FLOAT

16031-1013

$66.11

16055

PLATE,NEEDLE

16055-010

$11.83

43028

DIAPHRAGM,VALVE

43028-1027

$172.45

92022

WASHER,MAIN JET

16034-001

$3.57

92037

CLAMP,E-TYPE

16008-014

$9.34

92043

PIN,FLOAT

16032-008

$5.95

92055

RING-O

92055-044

$8.24

92055A

"O" RING,CHECK VALVE

92055-1059

$9.19

92055B

RING-O

92055-1105

$4.15

92063

JET-MAIN NO 115R

92063-076

$12.20

92063A

MAIN JET,#A102.5

92063-1028

Unavailable

92063B

MAIN JET,#110R

92063-1038

Unavailable

92063C

MAIN JET,#110R

92063-1038

Unavailable

92063D

JET-MAIN,#A107.5R

92063-1041

Unavailable

92063E

JET-MAIN,#A107.5R

92063-1041

Unavailable

92063F

MAIN JET,#A105R

92063-1042

$12.79

92063G

JET-MAIN,#A112.5

92063-1110

$14.61

92064

JET-PILOT,#A37.5

92064-1036

$18.64

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$4.01

92066A

PLUG,DRAIN

92066-1064

$9.80

92066B

PLUG,CARBURETOR

92066-1086

Unavailable

92066C

PLUG,PILOT JET

92066-1087

$5.06

92081

SPRING,PILOT SCREW

16022-016

$7.23

92081A

SPRING,DIAPHRAGM VALV

92081-1415

$13.78

220

SCREW PAN HEAD 4X6

220B0406

$1.46

220A

SCREW PAN HEAD 5X8

220B0508

Unavailable

220B

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable
