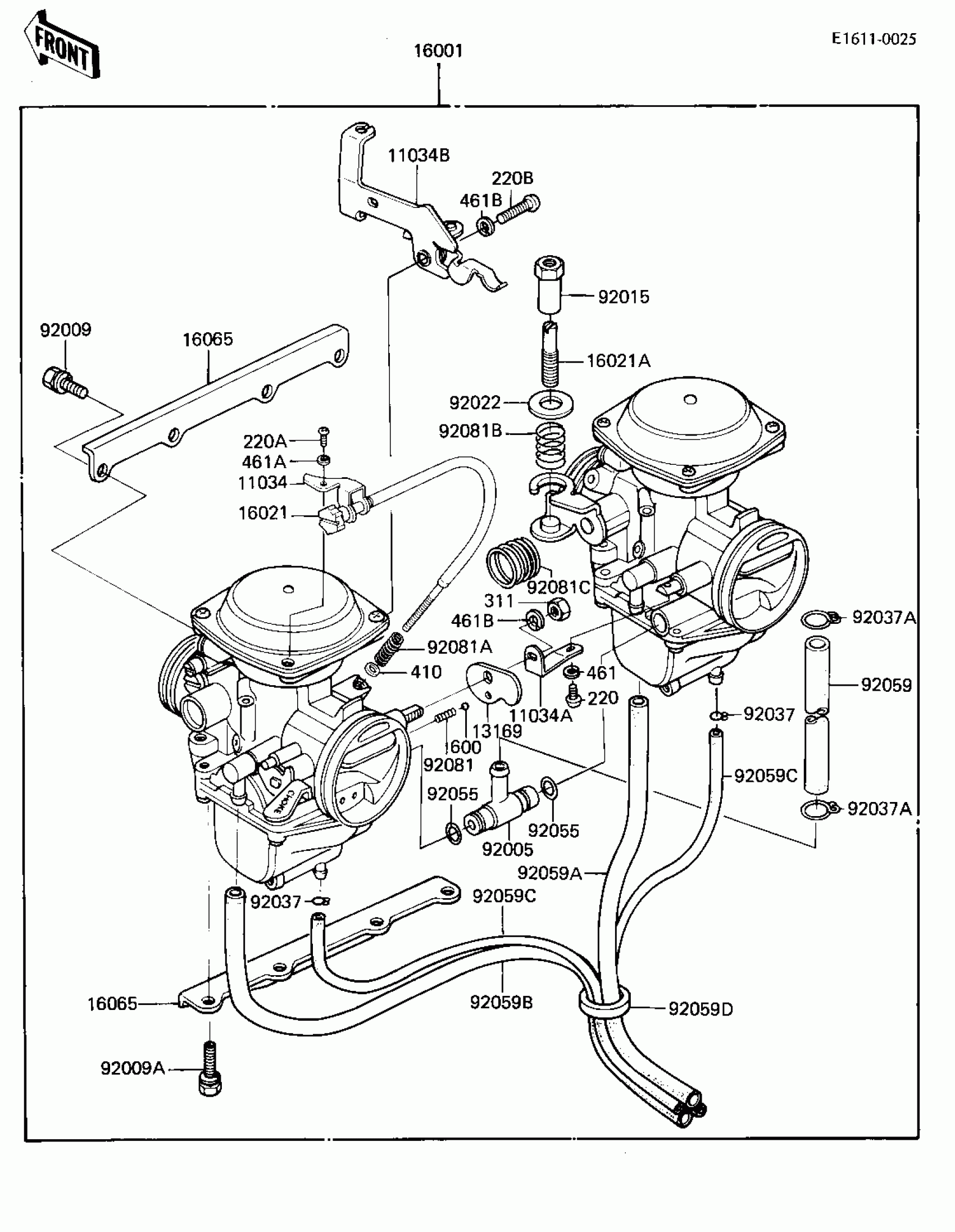

Kawasaki CSR CARBURETOR ASSY Diagram

#

Description
Price

11034

BRACKET,STOP SCREW

11034-1202

Unavailable

11034A

BRACKET,CHOKE LEVER

11034-1203

Unavailable

11034B

BRACKET,THROTTLE CABLE

11034-1826

Unavailable

13169

PLATE,CHOKE LINK

13169-1151

Unavailable

16001

CARBURETOR

16001-1363

$875.82

16021

SCREW-THROTTLE STOP

16021-1007

$34.12

16021A

SCREW-THROTTLE STOP

16021-1027

Unavailable

16065

PLATE,STAY

16065-1012

Unavailable

92005

FITTING,FUEL HOSE

92005-1032

$45.82

92009

SCREW,6X16

92009-1129

Unavailable

92009A

BOLT,6X22

92009-1006

$4.22

92015

NUT,5MM

92015-1118

Unavailable

92022

WASHER

92022-1204

Unavailable

92037

CLAMP,TUBE

92037-1142

$3.29

92037A

CLAMP,TUBE

92037-1682

$4.64

92055

RING-O

92055-1004

$3.29

92059

TUBE,5.3X10.5X200

92059-1001

Unavailable

92059A

TUBE,4.5X8X380

92059-110

Unavailable

92059B

TUBE,4.5X8X450

92059-1106

$16.32

92059C

TUBE,3.5X6.5X330

92059-111

$20.69

92059D

TUBE,CLAMP

92059-1114

$11.49

92081

SPRING

92081-1004

Unavailable

92081A

SPRING,STOP SCREW

92081-1062

Unavailable

92081B

SPRING

92081-1252

Unavailable

92081C

SPRING,THROTTLE RETURN

92081-1453

$9.24

220

SCREW-PAN-CROS,3X6

220B0306

Unavailable

220A

SCREW PAN HEAD 4X10

220B0410

Unavailable

220B

SCREW-PAN-CROS

220B0520

$0.62

311

NUT-HEX

311B0500

$0.47

410

WASHER PLAIN 5MM

410B0500

Unavailable

461

WASHER SPRING 3MM

461F0300

Unavailable

461A

WASHER SPRING 4MM

461F0400

Unavailable

461B

WASHER SPRING 5MM

461F0500

Unavailable

600

BALL,STEEL,1/8"

600A0400

$1.66
