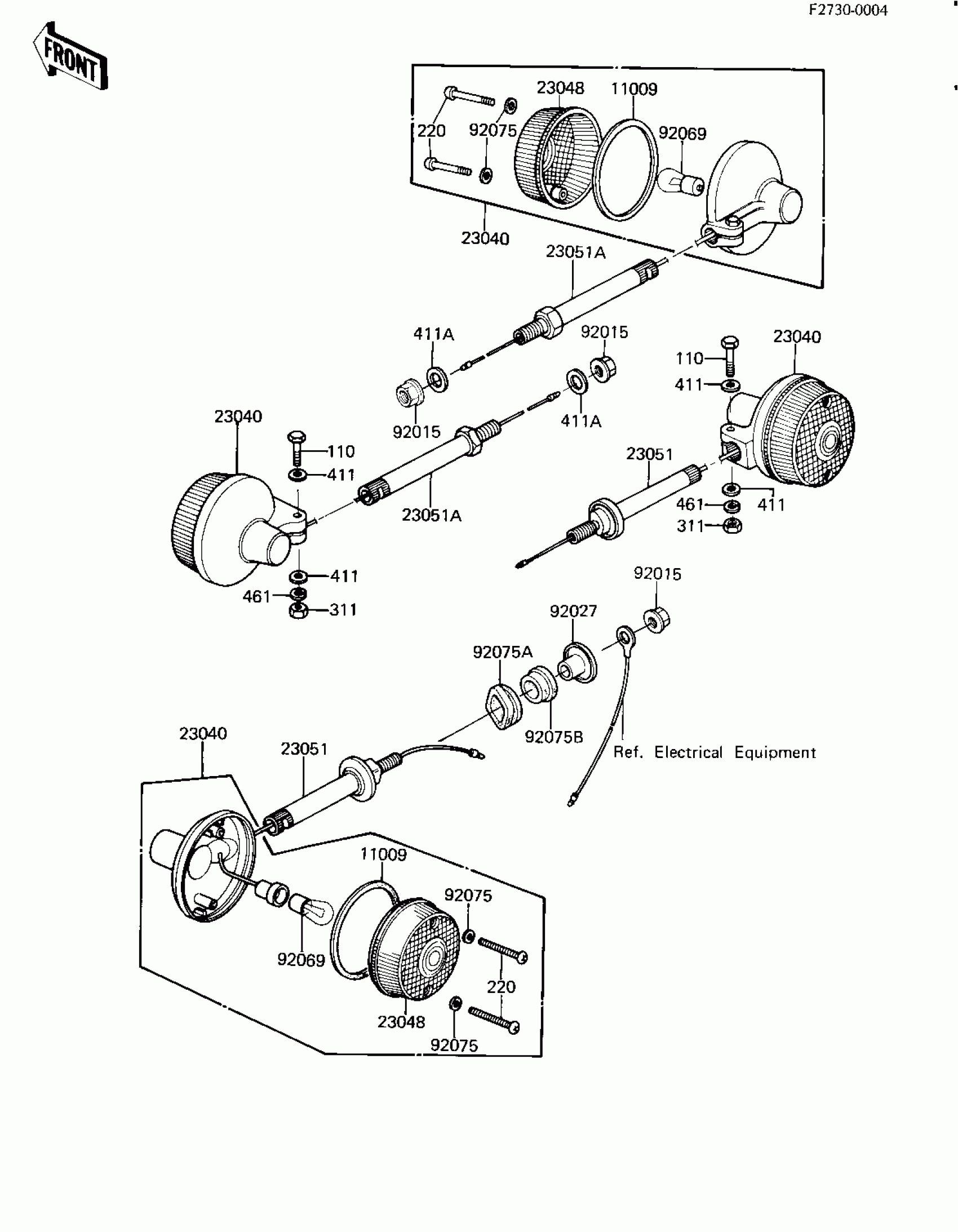

Kawasaki CSR Belt TURN SIGNALS Diagram

Description

Price

11009

GASKET,SIGNAL LAMP

23050-003

$5.80

23040

LAMP-SIGNAL

23040-054

Unavailable

23048

LENS-SIGNAL LAMP,"045-6588"

23048-1001

$10.57

23051

BRACKET-SIGNAL LAMP

23051-1014

$39.04

23051A

BRACKET,SIGNAL LAMP

23051-1024

$32.73

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92027

COLLAR

92027-147

$15.20

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92075

WASHER,PLAIN,4MM

23058-002

$2.49

92075A

DAMPER,LAMP

92075-128

$5.86

92075B

DAMPER RUBBER,SIG LM

92075-158

$5.47

110

BOLT-UPSET

112G0630

Unavailable

220

SCREW-PAN HEAD,4X20

220E0420A

Unavailable

311

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER-PLAIN,10MM

411D1000

$4.02

461

WASHER SPRING 6MM

461F0600

Unavailable
