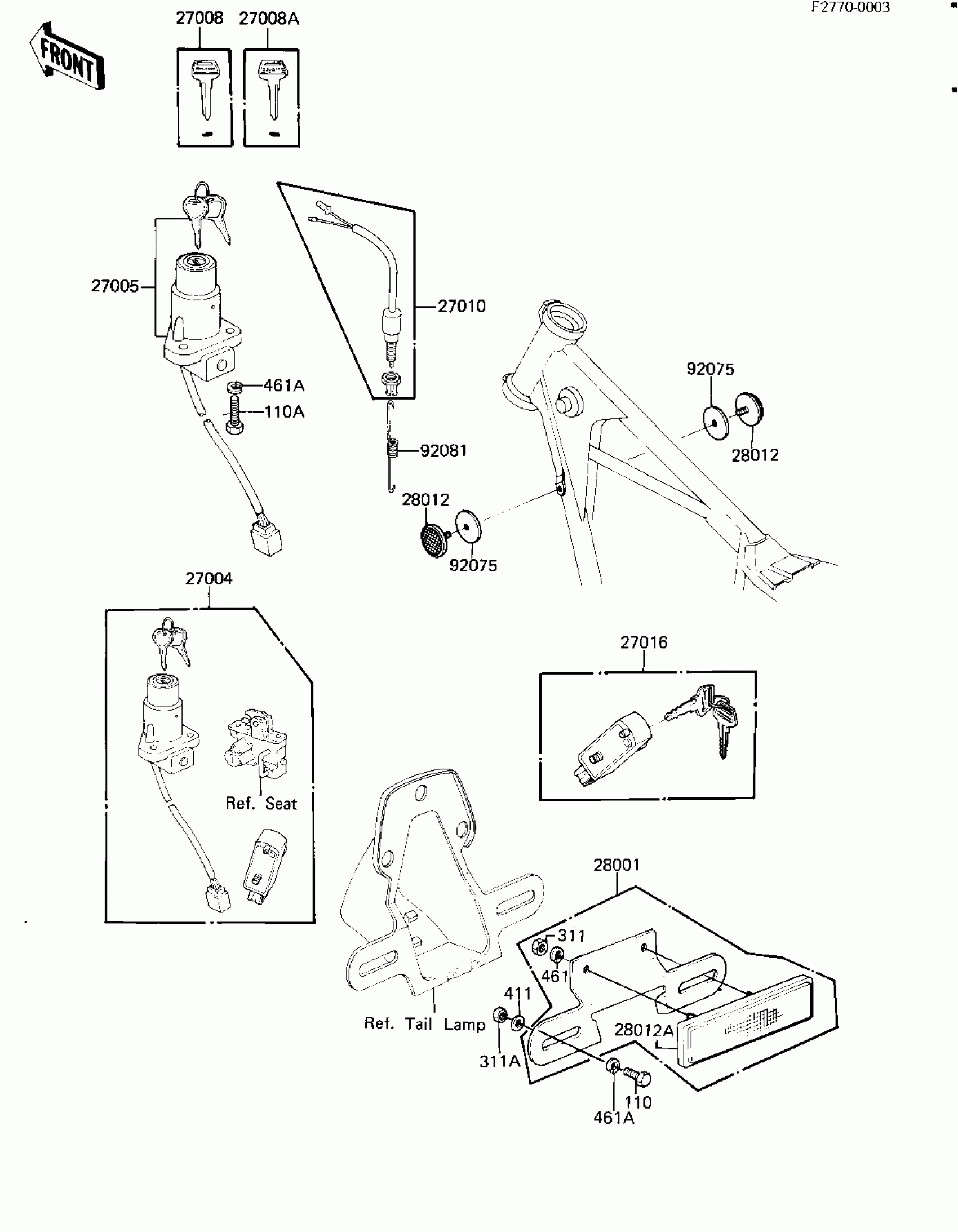

Kawasaki CSR Belt IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

27004

SWITCH ASSY

27004-5111

$131.07

27005

SWITCH ASSY,IGNITION

27005-1031

Unavailable

27008

KEY-LOCK,BLANK,#A

27008-1034

$17.63

27008A

KEY-LOCK,BLANK,#B

27008-1035

Unavailable

27010

SWITCH,BRAKE LAMP

27010-025

$26.96

27016

LOCK-ASSY,HELMET

27016-5029

$43.25

28001

REFLECTOR-ASSY-REFLEX

28001-1012

$58.72

28012

REFLECTOR-REFLEX,FR

28012-016

$18.77

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.89

92075

DAMPER,REFLECTOR

92094-011

$4.08

92081

SPRING,BRAKE LAMP SWITCH

27011-017

$9.73

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET,6X16

112G0616

Unavailable

311

NUT-HEX

311B0500

$0.47

311A

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
