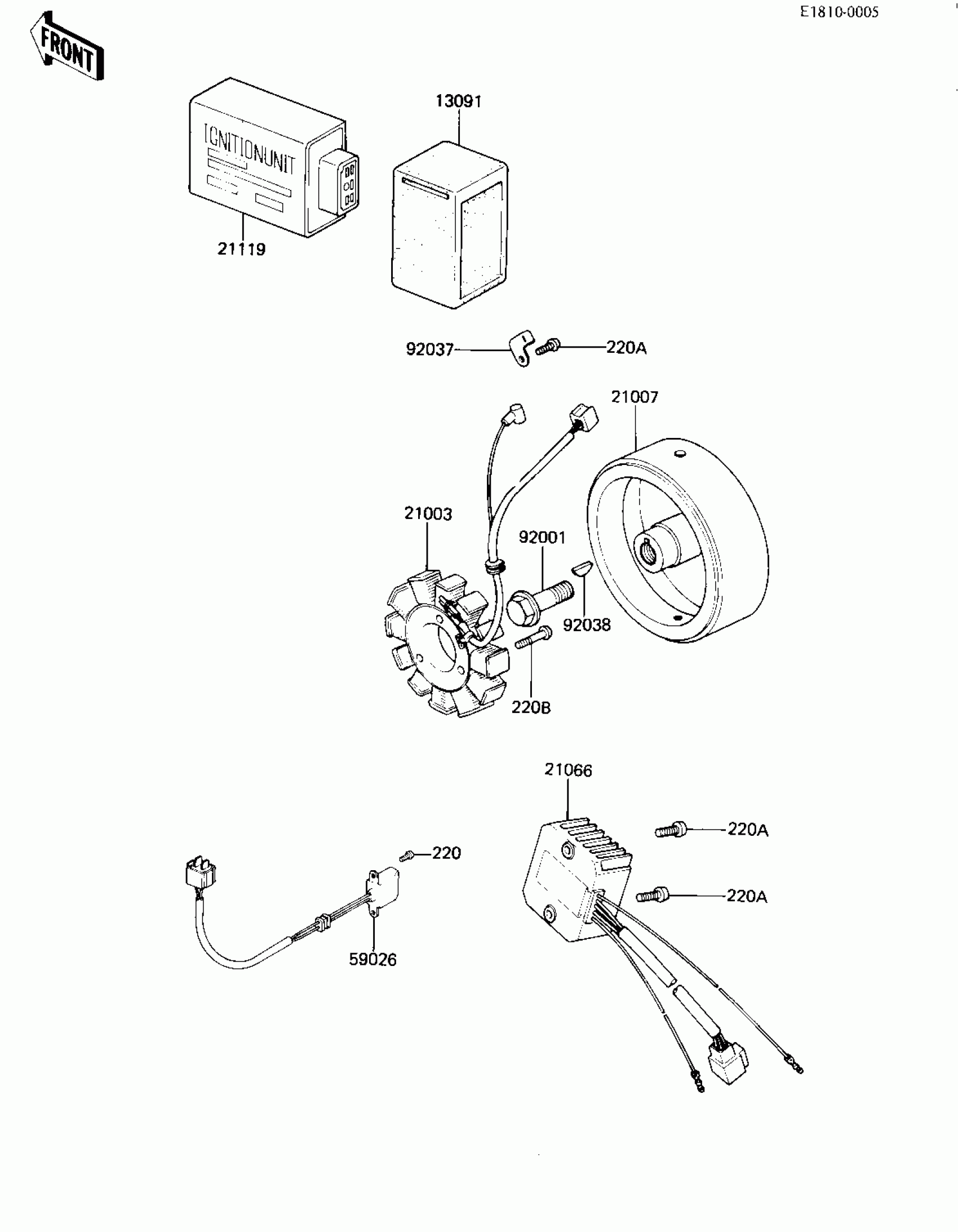

Kawasaki CSR Belt IGNITION/GENERATOR/REGULATOR Diagram

Description

Price

13091

HOLDER

13091-1095

Unavailable

21003

STATOR ASSY

21003-1002

Unavailable

21007

ROTOR

21007-1032

$446.37

21066

REGULATOR,VOLTAGE

21066-1014

Unavailable

21119

IGNITER

21119-1193

$844.38

59026

COIL-PULSING

59026-1013

Unavailable

92001

BOLT,10X40

92001-1201

$8.10

92037

CLAMP

92037-194

$3.64

92038

KEY,WOODRUFF

92038-001

$3.78

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14

220B

SCREW PAN HEAD 6X25

220B0625

Unavailable
