Partiron

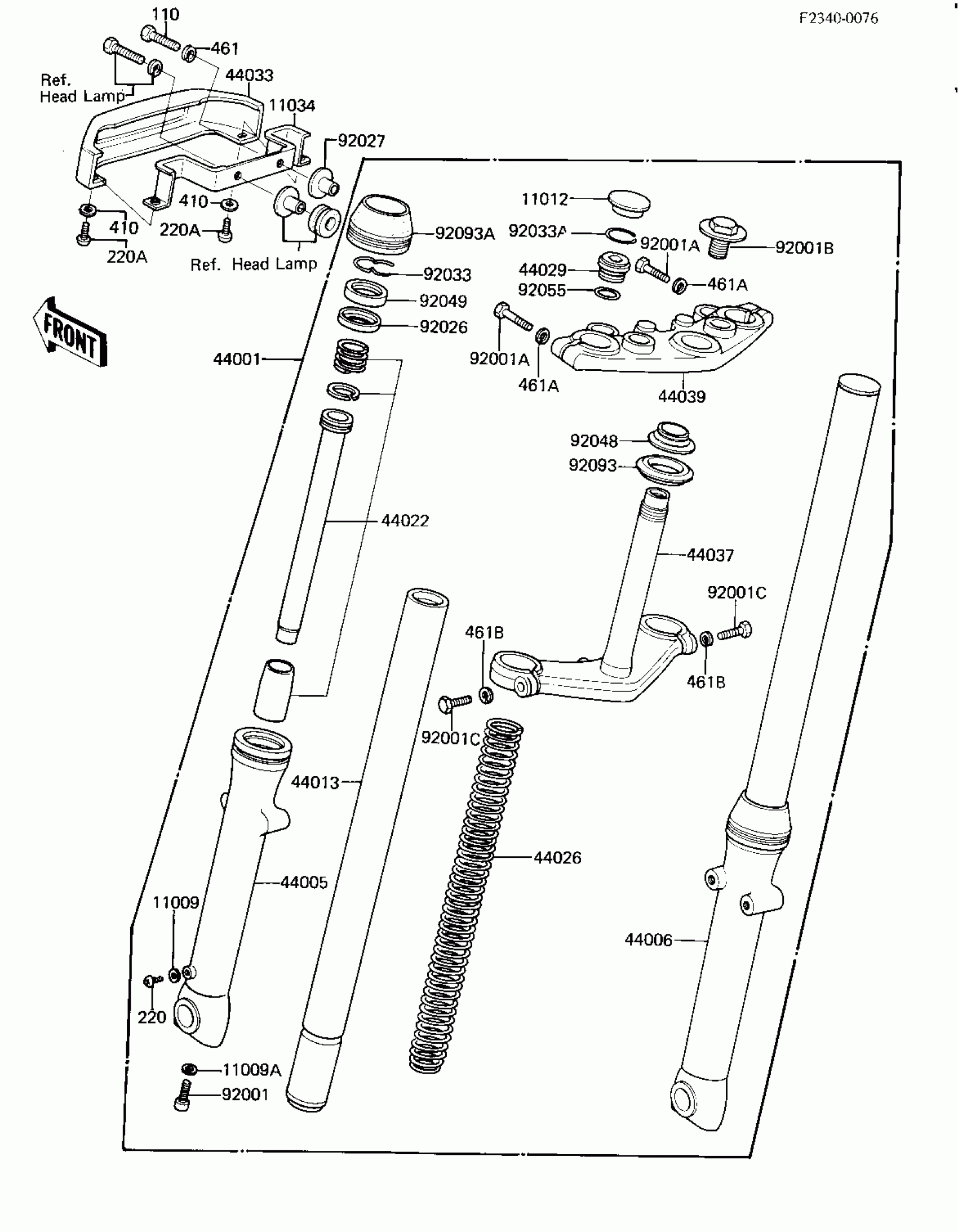

Kawasaki CSR Belt FRONT FORK Diagram

#

Description
Price

11009

GASKET,FORK DRAIN PLUG

44045-046

$7.51

11009A

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

11012

CAP,FORK

11012-1124

$9.39

11034

BRACKET,FORK COVER

11034-1698

Unavailable

44001

FORK-FRONT

44001-1300

$843.85

44005

TUBE,LH,FORK OUTER

44005-1047

$134.92

44006

TUBE,RH,FORK OUTER

44006-1047

$149.51

44013

PIPE-FORK INNER

44013-1074

$290.40

44022

CYLINDER-FORK

44022-1040

$62.46

44026

SPRING,FORK

44026-1054

$35.53

44029

SEAT-FORK SPRING

44029-022

$11.61

44033

COVER-FORK

44033-1062

Unavailable

44037

STEM,STEERING

44037-1036

$332.00

44039

HEAD,STEERING STEM

44039-078

$233.39

92001

BOLT,FORK CYLINDER

44041-078

$9.89

92001A

BOLT,8X40

92001-1063

$9.63

92001B

BOLT,STEERING STEM HE

92001-1741

Unavailable

92001C

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

92026

SPACER,FORK OUTER

92026-1099

$8.08

92027

COLLAR,L=13.1

92027-251

Unavailable

92033

RING-SNAP,45MM

44044-020

$13.58

92033A

RING-SNAP

44044-023

$5.46

92048

RACE,STEERING STEM BEARING

92047-010

$10.51

92049

SEAL-OIL,FORK OUTER

92049-1080

$23.21

92055

RING-O

44046-025

$6.57

92093

SEAL,STEERING STEM

44010-027

Unavailable

92093A

SEAL,FORK OUTER

92093-1066

Unavailable

110

BOLT-UPSET

112G0625

Unavailable

220

SCREW PAN HEAD 4X6

220B0406

$1.21

220A

SCREW PAN HEAD 4X10

220B0410

Unavailable

410

WASHER PLAIN 4MM

410B0400

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable

461B

WASHER SPRING 10MM

461F1000

Unavailable
