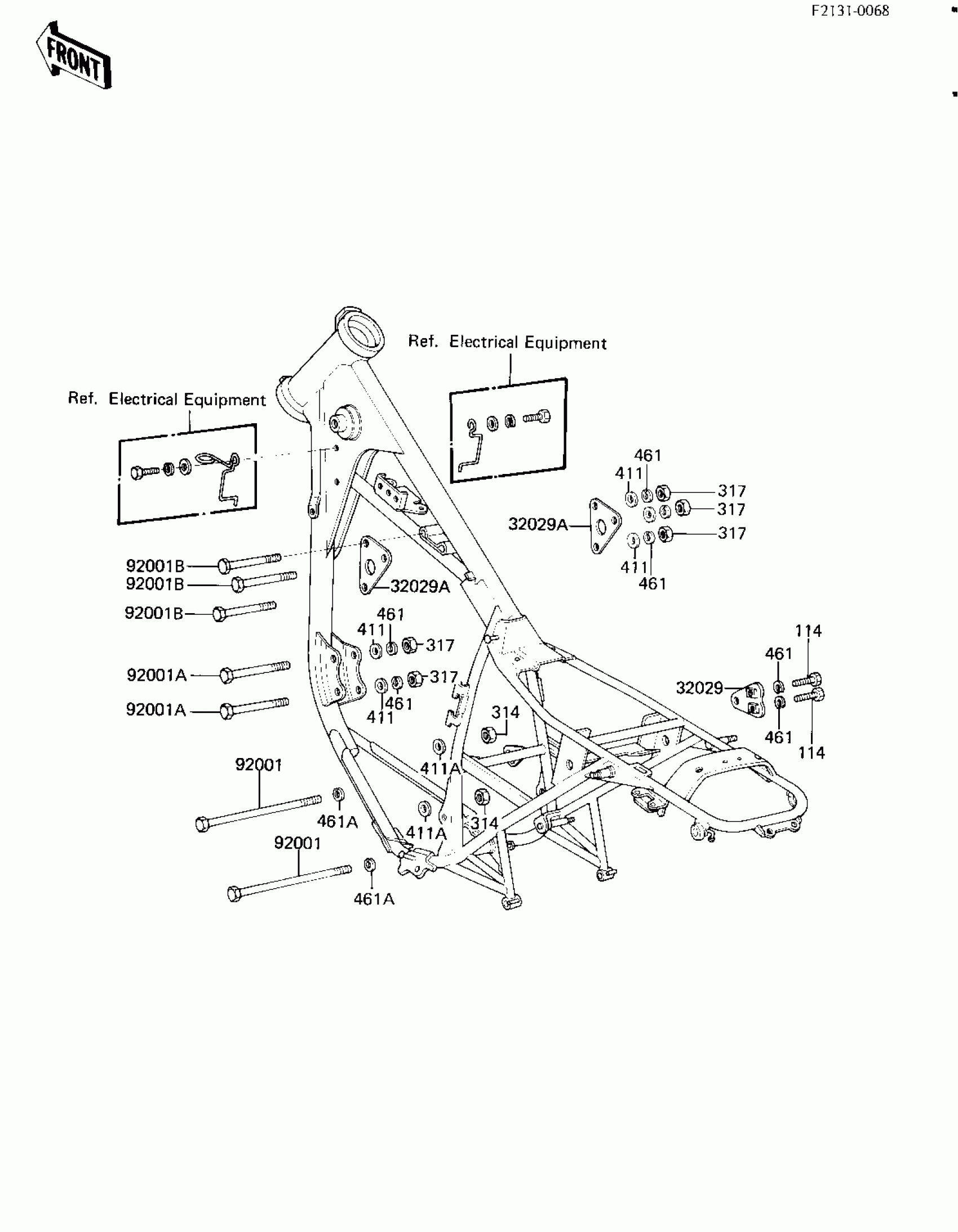

Kawasaki CSR Belt FRAME FITTINGS Diagram

Description

Price

32029

BRACKET,ENGINE

32029-1008

$8.58

32029A

PLATE,ENGINE HEAD

32030-069

$13.17

92001

BOLT,FLANGED,10X115

92001-1603

$10.25

92001A

BOLT,FLANGED,8X70

92001-1583

$9.27

92001B

BOLT,8X63

92001-1397

$3.91

114

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

314

NUT-HEX-FINE,10MM

314B1000

Unavailable

317

NUT-HEX-SMALL,8MM

317B0800

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

411A

WASHER-PLAIN,10MM

411B1000

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable
