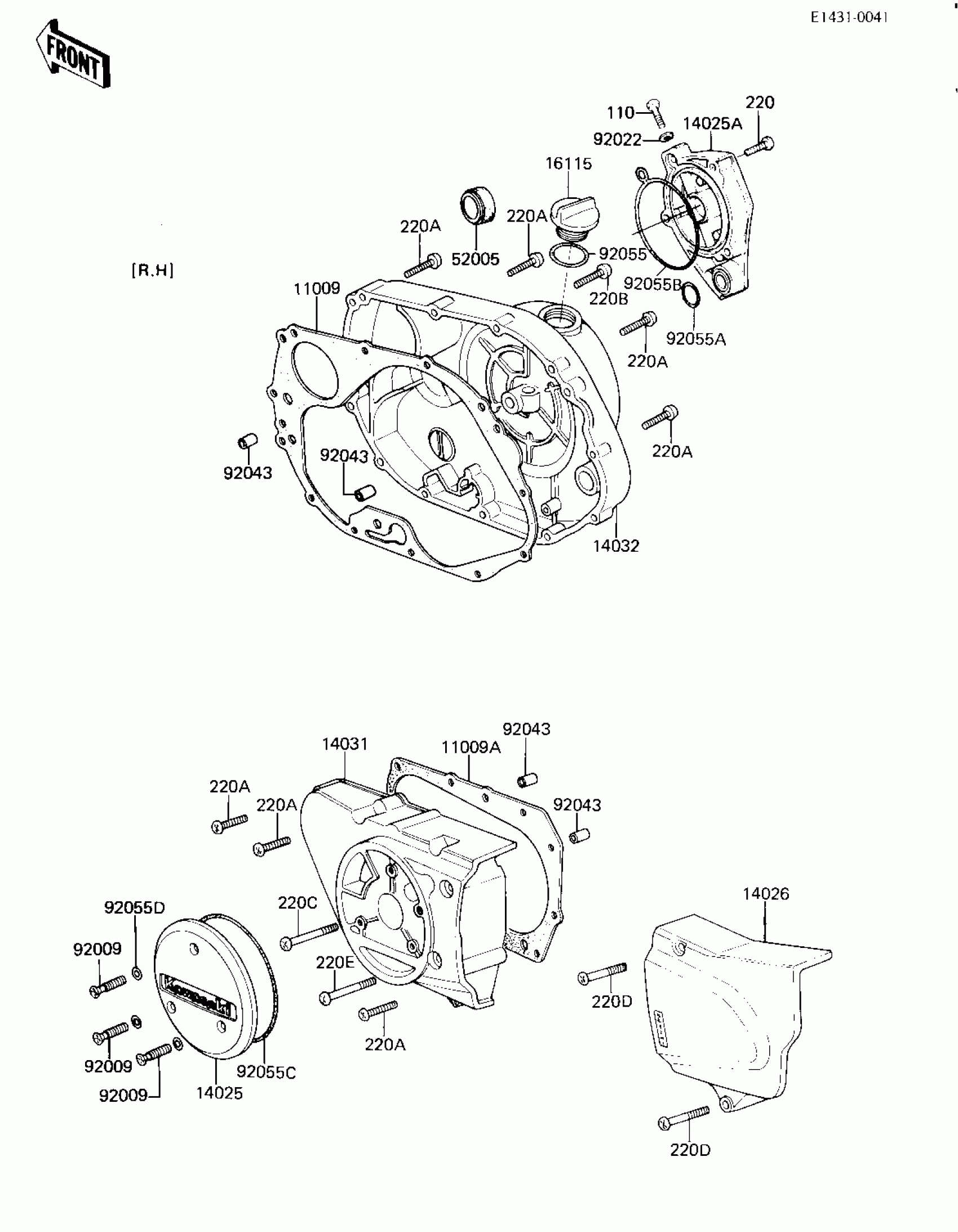

Kawasaki CSR Belt ENGINE COVERS Diagram

#

Description
Price

11009

GASKET,ENGINE COV,RH

11009-1235

Unavailable

11009A

GASKET,L.H ENGINE COV

14045-031

Unavailable

14025

COVER,GENERATOR

14025-1107

Unavailable

14025A

COVER,FILTER

14025-1190

Unavailable

14026

COVER-CHAIN

14026-1049

Unavailable

14031

COVER-GENERATOR

14031-1070

Unavailable

14032

COVER-CLUTCH

14032-1062

Unavailable

16115

CAP-OIL FILLER

16115-013

$18.64

52005

GAUGE,OIL LEVEL

52005-1009

$14.84

92009

SCREW OVL CNTSK 6X25

222E0625

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O

92055-098

$9.27

92055B

"0" RING,FILTER COVER

92055-1048

$13.75

92055C

"O" RING,DYNAMO COVER

92055-108

$14.15

92055D

RING-O,5.28X1.78

92055-109

$3.35

110

BOLT HEX HEAD 6X8

110B0608

Unavailable

220

SCREW PAN HEAD 6X25

220B0625

Unavailable

220A

SCREW PAN HEAD 6X30

220B0630

Unavailable

220B

SCREW PAN HEAD 6X40

220B0640

Unavailable

220C

SCREW PAN HEAD 6X45

220B0645

$1.33

220D

SCREW PAN HEAD 6X55

220B0655

$3.19

220E

SCREW-PAN-CROS,6X60

220B0660

Unavailable
