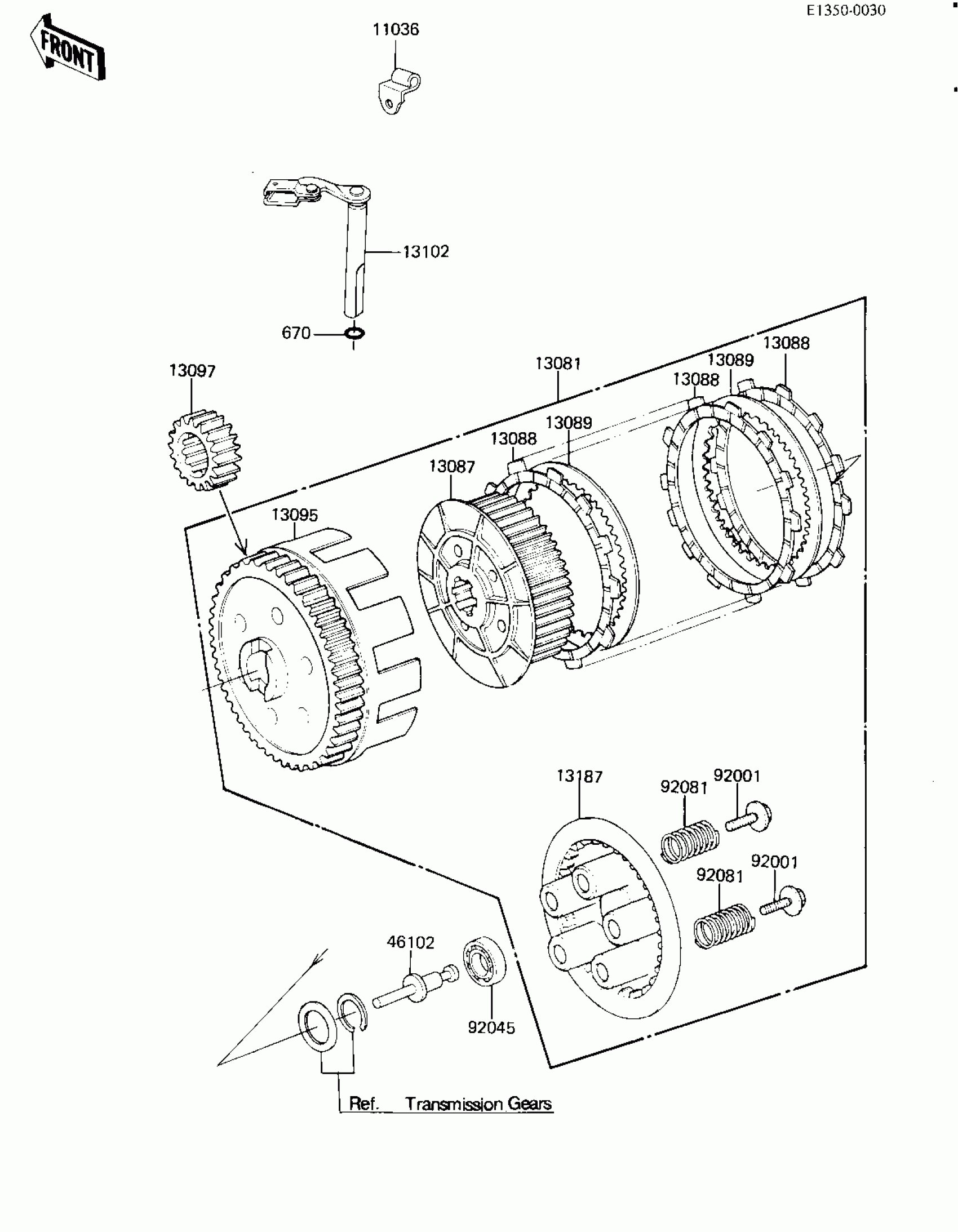

Kawasaki CSR Belt CLUTCH Diagram

Description

Price

11036

BRACKET,CLUTCH CABLE

11045-1081

Unavailable

13084

CLUTCH-ASSY

13081-1068

Unavailable

13087

HUB,CLUTCH

13087-1001

$108.45

13088

PLATE,CLUTCH FRICTION

13088-1008

Unavailable

13089

PLATE-CLUTCH,T=1.6

13089-013

$13.16

13095

HOUSING,CLUTCH

13095-1015

Unavailable

13097

GEAR,PRIMARY

13121-035

Unavailable

13102

RELEASE,CLUTCH

13102-1011

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1008

Unavailable

46102

ROD,CLUTCH PUSH

46102-1033

Unavailable

92001

BOLT,CLUTCH SPRING,6X18

92001-1576

Unavailable

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92081

SPRING,CLUTCH

92081-083

$8.53

670

O RING,9MM

670B1509

$3.65
