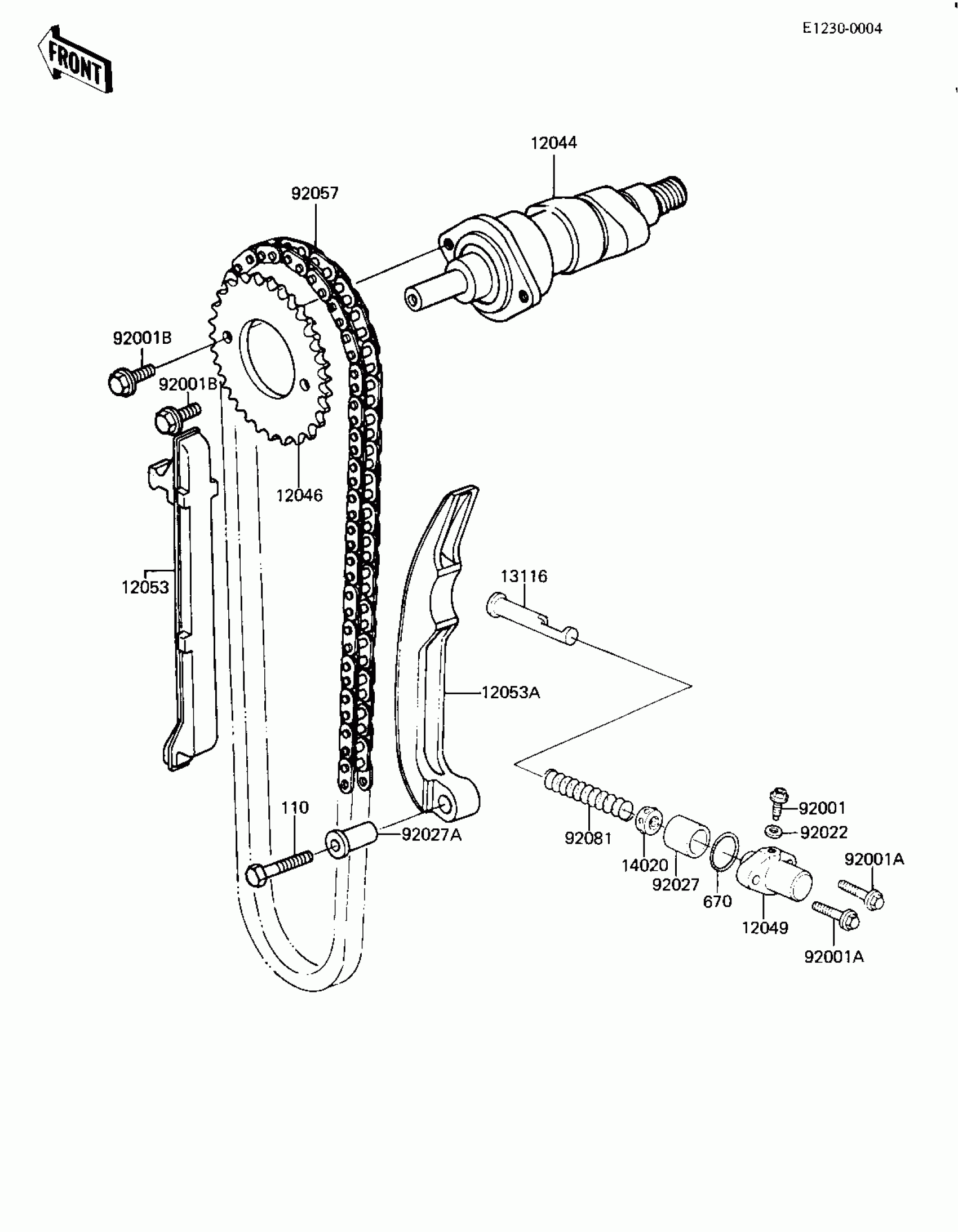

Kawasaki CSR Belt CAMSHAFT/CHAIN/TENSIONER Diagram

Description

Price

12044

SHAFT,CAM

12044-1028

Unavailable

12046

SPROCKET,CAM SHAFT

12046-1007

Unavailable

12049

TENSIONER,CAM CHAIN

12049-1055

$46.14

12053

SLIPER,CAM CHAIN

12053-023

$36.12

12053A

SLIPER,CAM CHAIN

12053-024

$49.12

13116

ROD,PUSH,CAM CHAIN

13116-1019

$16.13

14020

RETAINER,TENSIONER

14020-1002

$15.92

92001

BOLT,TENSIONER ADJUST

92001-1155

$5.33

92001A

BOLT,FLANGED,6X22

92001-1352

$4.31

92001B

BOLT,FLANGED,6X11

92003-208

$4.31

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92027

COLLAR,TENSIONER

92027-1273

$32.58

92027A

COLLAR

92027-155

$8.19

92057

CHAIN,CAM

21070-013

$150.60

92081

SPRING,TENSIONER

92081-1105

$4.55

110

BOLT-UPSET

112G0630

Unavailable

670

O RING,22MM

670B2022

$4.69
