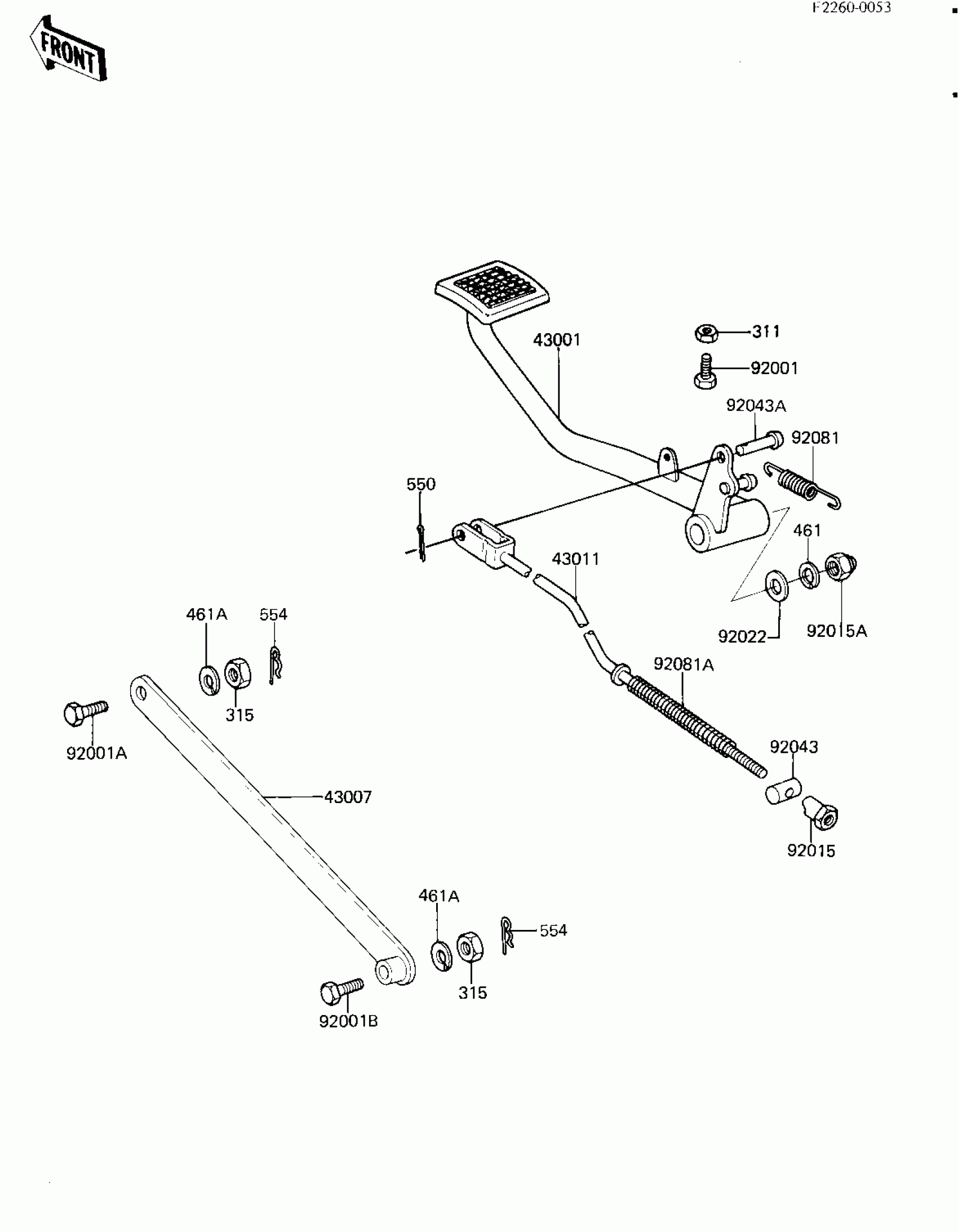

Kawasaki CSR Belt BRAKE PEDAL/TORQUE LINK Diagram

Description

Price

43001

PEDAL,BRAKE

43001-1044

$72.92

43007

ROD-TORQUE

43007-1027

$30.98

43011

ROD,BRAKE

43011-1041

$16.51

92001

BOLT,6X25

92001-1090

Unavailable

92001A

BOLT,10X25

92003-017

Unavailable

92001B

BOLT-HEX HEAD,10X42

92003-085

$2.97

92015

NUT,BRAKE ROD

92015-042

$4.67

92015A

NUT,CAP,LOCK,8MM

92015-1131

Unavailable

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92043

PIN,BRAKE ROD

92043-039

$4.80

92043A

PIN,BRAKE ROD FITTING

92043-090

Unavailable

92081

SPRING,BRAKE PEDAL

43005-029

Unavailable

92081A

SPRING,BRAKE ROD

43012-001

$3.54

311

NUT 6MM

311B0600

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable
