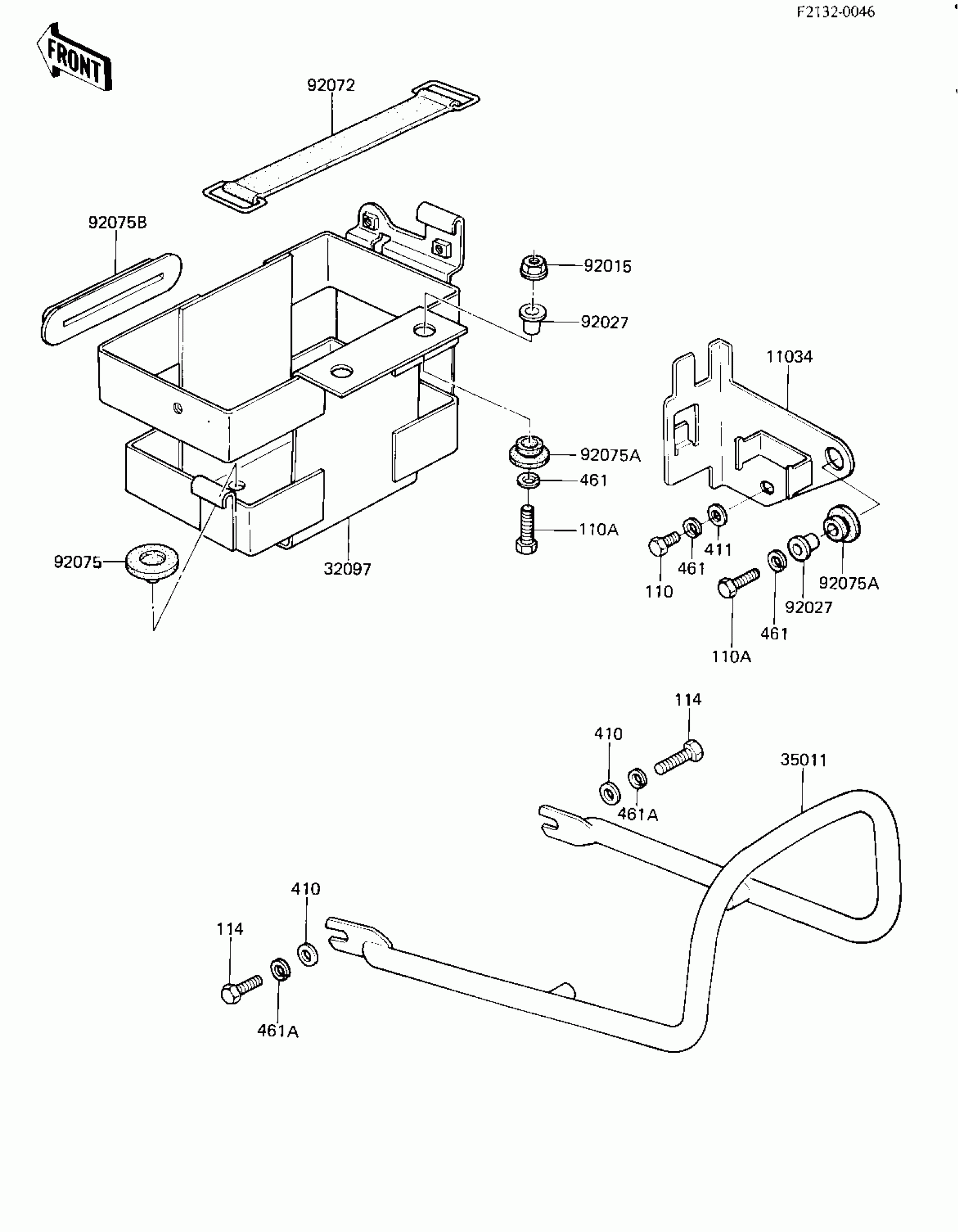

Kawasaki CSR Belt BATTERY CASE/ELECTRO BRACKET Diagram

Description

Price

11034

BRACKET,RELAY

11034-1672

Unavailable

32097

CASE-BATTERY

32097-1053

$82.61

35011

STAY

35011-1105

$116.23

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR

92027-194

$5.52

92072

BAND,L=142.1

92072-006

$12.76

92075

DAMPER,RUBBER

92075-078

$4.39

92075A

DAMPER

92075-277

$2.84

92075B

DAMPER

92075-280

Unavailable

110

BOLT-UPSET,6X12

112G0612

$1.49

110A

BOLT 6X22

112B0622

Unavailable

114

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
