1972 Yamaha CS5 (CS5) Side Cover - BOX Diagram

← All diagrams

Find the part on the Side Cover - BOX diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

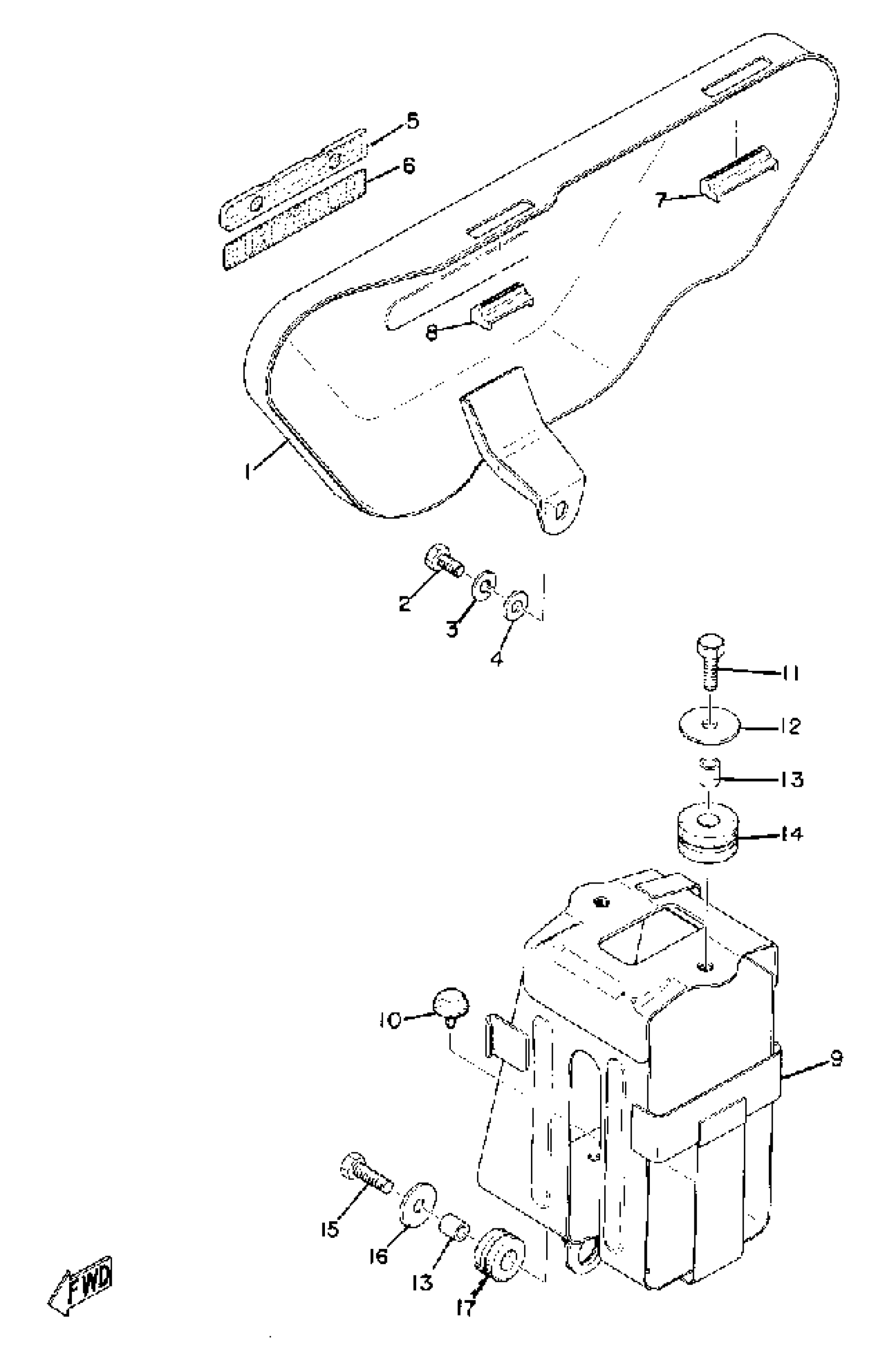

1972 Yamaha CS5 (CS5) Side Cover - BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SIDE COVER ASSEMBLY 1

(337-21710-00-R9)

1
Out of stock

2

BOLT (661)

97013-06012-00

1

$4.71

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

EMBLEM 6

(337-21786-00-34)

1
Out of stock

6

EMBLEM 7

(320-21787-00-00)

1
Out of stock

7

DAMPER

(326-21717-00-00)

1
Out of stock

8

DAMPER

278-21717-00-00

1
Out of stock

9

BOX, BATT.

(337-21170-00-00)

1
Out of stock

10

DAMPER, SIDE COVER

141-21717-00-00

1

$6.48

In stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER PLATE 248217570000

90201-06074-00

1

$6.29

In stock

13

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

14

DAMPER

248-21717-00-00

1
Out of stock

15

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

16

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

17

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock
