1972 Yamaha CS5 (CS5) Carburetor Diagram

← All diagrams

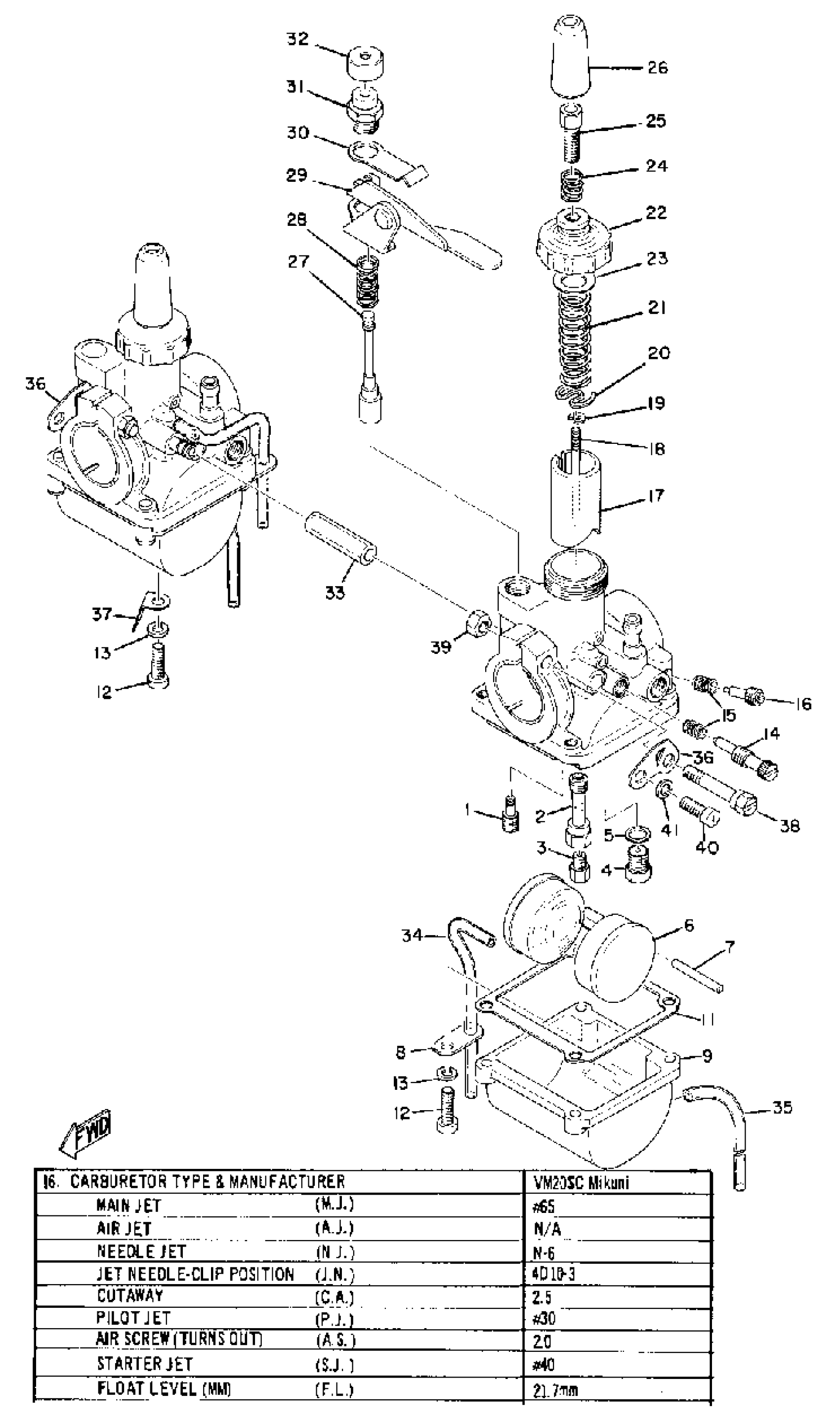

Find the part on the Carburetor diagram for your 1972 Yamaha CS5 (CS5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha CS5 (CS5) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 25)

193-14142-25-A0

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(337-14101-60-00)

1
Out of stock

2

NOZZLE, MAIN

(174-14141-32-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(337-14102-60-00)

1
Out of stock

3

JET, MAIN #50

(137-14143-10-00)

1
Out of stock

3

. JET, MAIN #55

137-14143-11-00

1
Out of stock

3

JET, MAIN (#60)

137-14143-12-00

1
Out of stock

3

JET, MAIN #65

(137-14143-13-00)

1
Out of stock

4

VALVE SEAT ASSY

353-14190-15-00

—

$36.18

In stock

5

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

6

FLOAT

205-14185-00-00

1

$58.29

In stock

7

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

8

PLATE

132-14146-00-00

—

$6.65

In stock

9

BODY, FLOAT CHMBR 1

(174-14181-01-00)

1
Out of stock

10

BODY, FLOAT CHMBR 2

(293-14183-00-00)

1
Out of stock

11

GASKET, FLOAT CHAMBER

164-14184-00-00

—

$14.25

In stock

12

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

14

THROTTLE SCREW SET

53L-14103-00-00

—
Out of stock

15

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

16

AIR SCREW SET

22K-14104-00-00

—

$9.95

In stock

16

. PIN, COTTER

91401-12018-00

1
Out of stock

17

VALVE, THROTTLE 1

(193-14112-20-00)

1
Out of stock

17

VALVE, THROTTLE 2

(193-14113-20-00)

1
Out of stock

17

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

18

. NEEDLE

156-14116-10-00

1
Out of stock

18

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

19

CLIP

3FA-14137-00-00

—

$6.80

In stock

19

SCREW, BIND

98980-04008-00

1

$3.26

In stock

20

. SEAT, SPRING

137-14136-00-00

1
Out of stock

20

GASKET 137131870000

90430-04004-00

—
Out of stock

21

SPRING, THROTTLE VALVE

3X3-14131-00-00

—

$12.38

In stock

21

HOSE (L700)

90445-05M07-00

1
Out of stock

22

TOP, MIXING CHAMBER

193-14158-00-00

—
Out of stock

22

HOSE (L700)

90445-05M07-00

1
Out of stock

23

GASKET

193-14126-00-00

—

$5.35

In stock

23

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

24

SPRING, THRTL STOP

(193-14133-00-00)

1
Out of stock

24

BOLT, UNION

90401-06011-00

1
Out of stock

25

SCREW, CABLE ADJUSTING

(193-14124-26-00)

1
Out of stock

25

HOLDER, OIL PIPE

(293-13174-00-00)

1
Out of stock

26

CAP

307-14169-10-00

—

$7.09

In stock

27

. PLUNGER, STARTER

174-14171-00-00

1
Out of stock

28

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

29

LEVER, STARTER 1

(337-14175-00-00)

1
Out of stock

30

PLATE, STARTER LVR

(174-14178-00-00)

1
Out of stock

31

. CAP, PLUNGER

802-14174-00-00

1
Out of stock

32

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

33

PIPE

(293-14149-00-00)

1
Out of stock

34

PIPE

23F-14197-00-00

—

$24.11

In stock

35

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

36

PLATE 1

(337-14247-00-00)

1
Out of stock

37

PLATE 2

(307-14248-00-00)

1
Out of stock

38

SCREW, BODY FITTING

(137-14125-00-00)

1
Out of stock

39

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

40

SCREW, PAN HEAD

(92503-05012-00)

1
Out of stock

41

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
