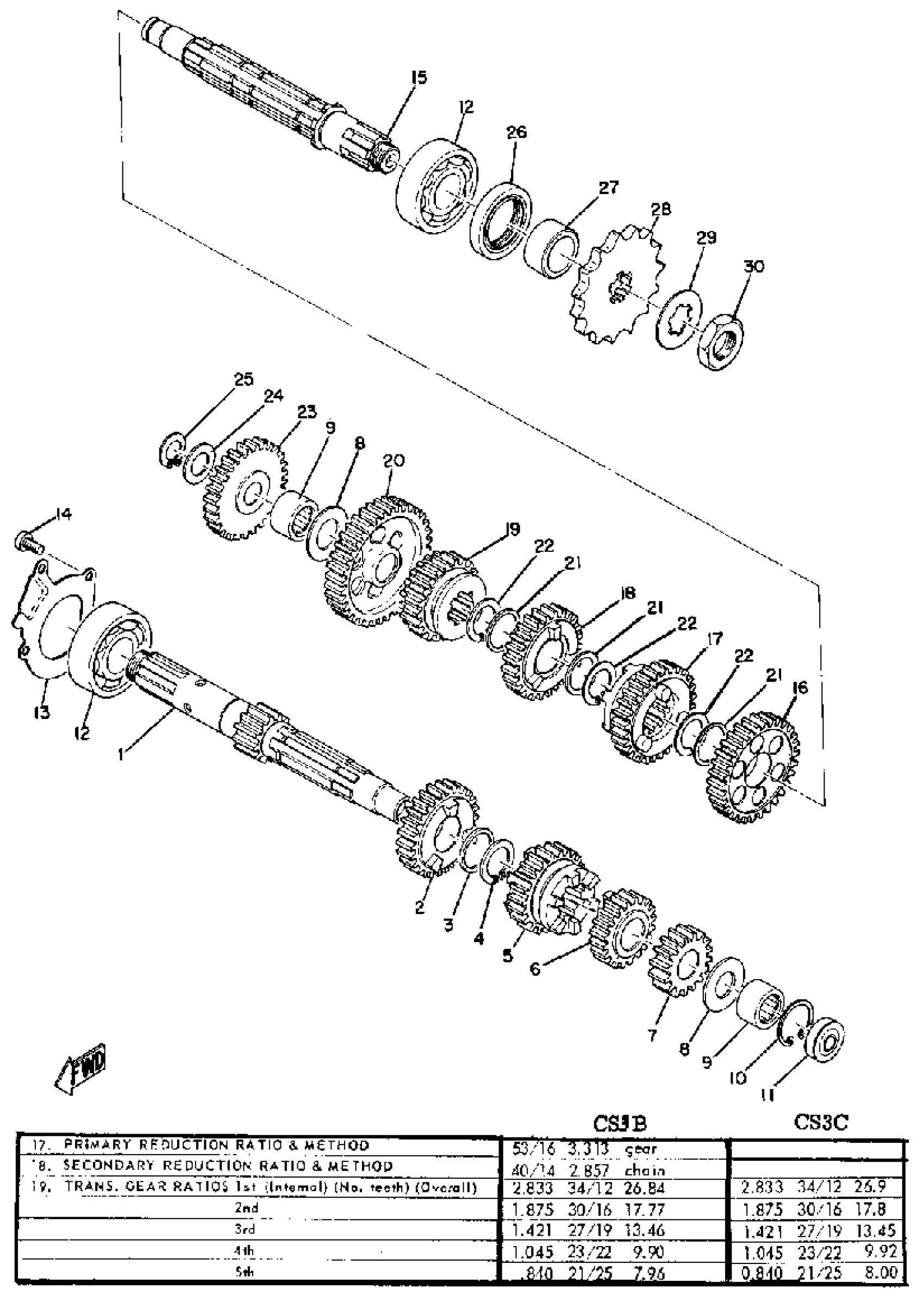

Yamaha CS3C (CS3C) 1970 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(174-17411-01-00)

Unavailable

2

GEAR, 5TH PINION

(174-17151-00-00)

Unavailable

3

WASHER PLATE 132172160000

90201-20266-00

$9.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

GEAR, 4TH PINION

(174-17141-00-00)

Unavailable

6

GEAR, 3RD PINION

(174-17131-00-00)

Unavailable

7

GEAR, 2ND PINION

(174-17121-00-00)

Unavailable

8

SHIM, DRIVE AXLE

164-17427-00-06

$5.49

8

SHIM, DRIVE AXLE

164-17427-00-06

$5.49

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

10

CIRCLIP, R-TYPE

93420-22026-00

Unavailable

11

OIL SEAL(12E)

93109-08061-00

$7.49

12

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

$65.99

13

PLATE, COVER

(248-17471-01-00)

Unavailable

14

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

15

AXLE, DRIVE

(174-17421-00-00)

Unavailable

16

GEAR, 2ND WHEEL

(174-17221-00-00)

Unavailable

17

GEAR, 3RD WHEEL

(174-17231-00-00)

Unavailable

18

GEAR, 4TH WHEEL

(174-17241-00-00)

Unavailable

19

GEAR, 5TH WHEEL

(174-17251-00-00)

Unavailable

20

GEAR, 1ST WHEEL

(174-17211-01-00)

Unavailable

21

WASHER PLATE 132172160000

90201-20266-00

$9.49

22

CIRCLIP (525)

93410-20038-00

$3.76

23

GEAR, KICK IDLE

(180-15651-01-00)

Unavailable

24

WASHER

(132-15653-00-10)

Unavailable

25

CIRCLIP(13M)

99009-13400-00

Unavailable

26

OIL SEAL

93106-28043-00

Unavailable

27

COLLAR

90387-20346-00

Unavailable

28

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

28

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

28

SPROCKET,DRIVE 16T(10V1746160)

93822-16095-00

Unavailable

29

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

30

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable
