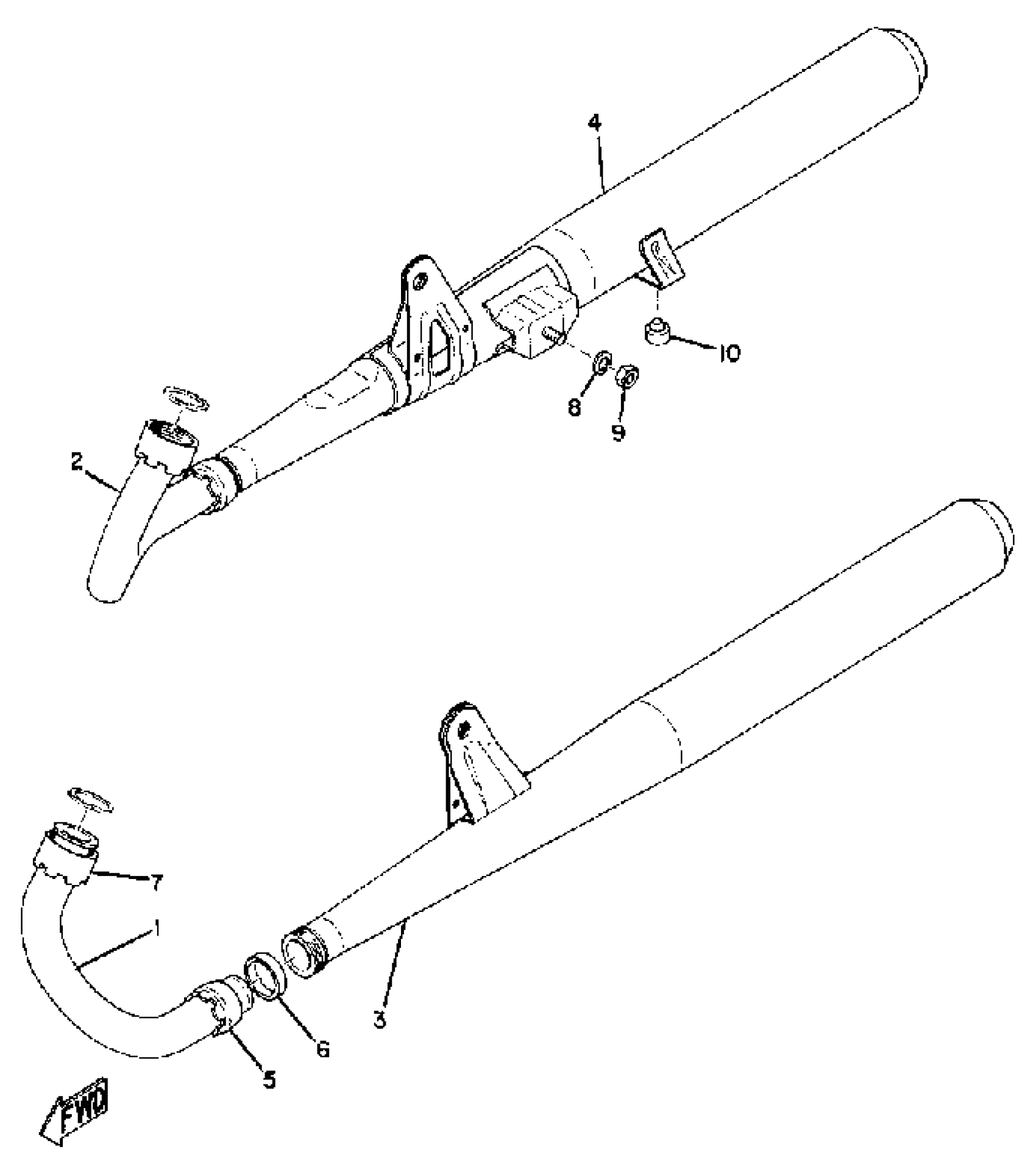

Yamaha CS3C (CS3C) 1970 MUFFLER Diagram

#

Description

Price

1

PIPE, EXHAUST L

(174-14611-00-00)

Unavailable

2

PIPE, EXHAUST R

(174-14621-00-00)

Unavailable

3

MUFFLER ASSEMBLY L

(293-14710-01-00)

Unavailable

4

MUFFLER ASSEMBLY R

(293-14720-01-00)

Unavailable

5

NUT, MUFFLER JOINT

132-14713-00-00

Unavailable

6

GASKET, MUFFLER

3NA-14714-01-00

Unavailable

7

NUT, RING

(174-14612-01-00)

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

NUT(6L2)

95333-08600-00

$2.49

10

STOPPER

1M3-27114-00-00

$8.99
