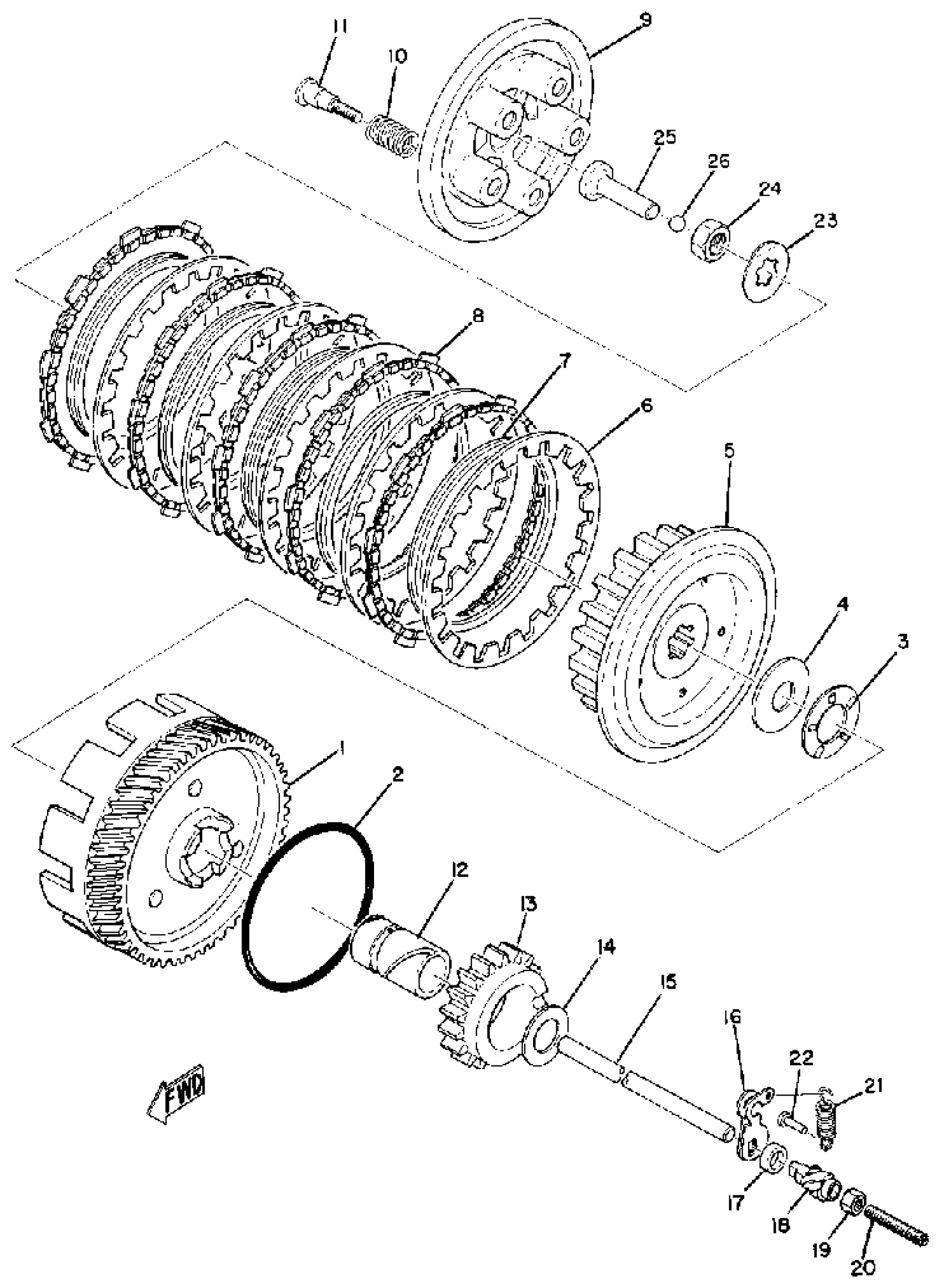

Yamaha CS3C (CS3C) 1970 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

(174-16105-01-00)

Unavailable

1

CLUTCH ASSEMBLY

(174-16301-02-00)

Unavailable

2

O-RING (173)

93210-85075-00

$4.99

3

. BEARING, FLAT #41

93341-22603-00

Unavailable

4

. PLATE, THRUST 1

174-16154-00-00

Unavailable

5

. BOSS, CLUTCH

174-16371-01-00

Unavailable

6

PLATE, CLUTCH 1

336-16324-10-00

$18.49

7

RING, CUSHION

137-16367-00-00

$17.49

8

PLATE, FRICTION

3HA-16321-00-00

$31.99

9

PLATE, PRESSURE

132-16351-00-00

$55.99

10

SPRING COMPRESSION137163336000

90501-20124-00

$8.49

11

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

12

COLLAR (174-16181-00)

90387-20439-00

Unavailable

13

GEAR, KICK PINION

174-15631-01-00

Unavailable

14

PLATE, THRUST 2

174-16164-00-00

Unavailable

15

ROD, PUSH 2

237-16357-01-00

Unavailable

16

LEVER, PUSH

241-16342-00-00

Unavailable

17

SEAL 0IL (2V7)

93104-10085-00

Unavailable

18

SCREW, PUSH

241-16341-01-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

BOLT SET 241163430000

90113-06013-00

Unavailable

21

SPRING TENSION 132163450000

90506-10019-00

Unavailable

22

HOOK, SPRING

132-16346-00-00

Unavailable

23

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

24

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

25

ROD, PUSH

174-16356-00-00

Unavailable

26

BALL

93505-16006-00

Unavailable
