1970 Yamaha CS3C (CS3C) Carburetor Diagram

← All diagrams

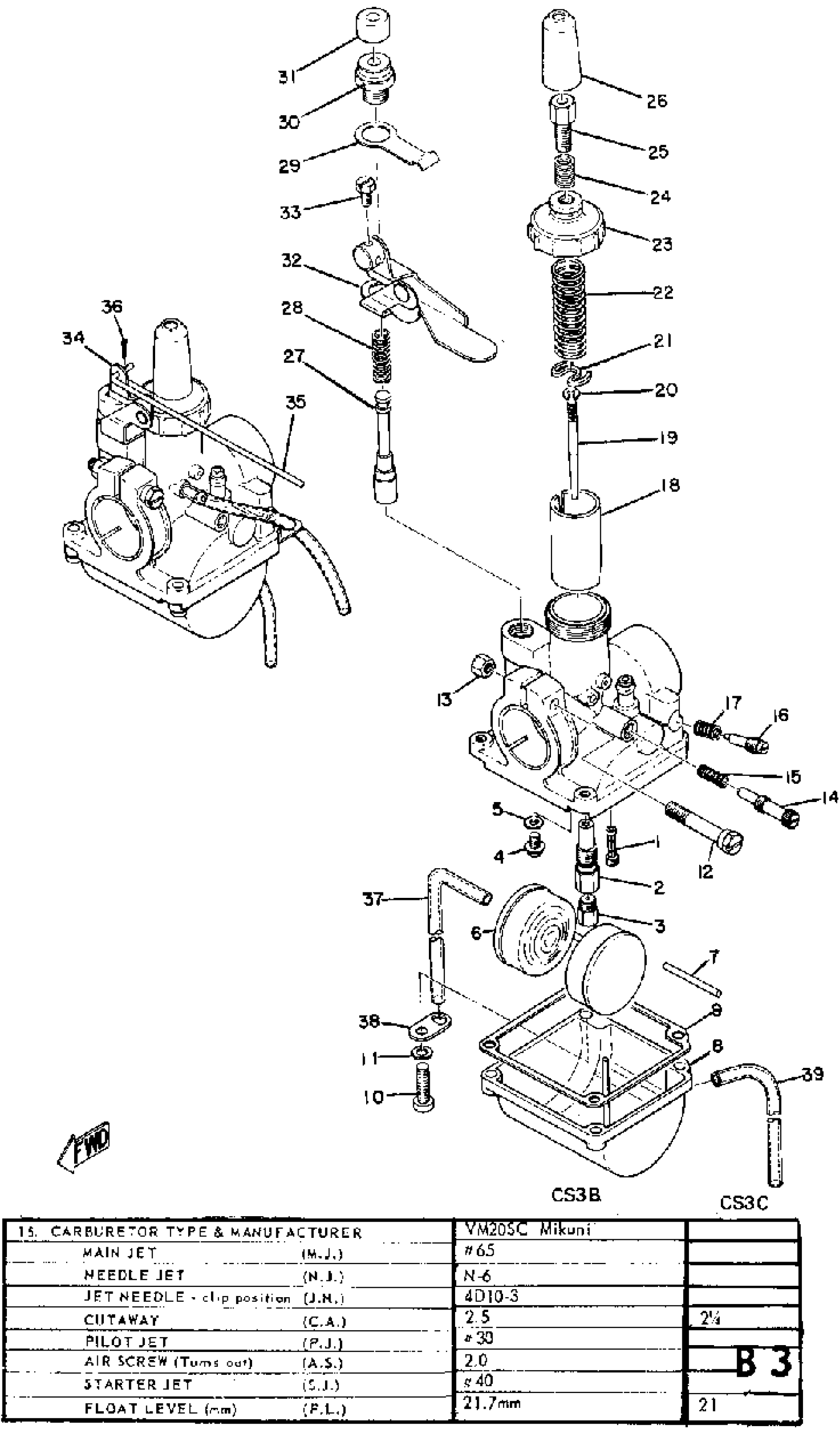

Find the part on the Carburetor diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CS3C (CS3C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(193-14101-61-00)

1
Out of stock

1

VALVE, THROTTLE 2

(193-14113-25-00)

1
Out of stock

1

JET, PIL0T (# 30)

193-14142-30-A0

—
Out of stock

2

NOZZLE, MAIN

(174-14141-26-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(193-14102-61-00)

1
Out of stock

3

. JET, MAIN #55

137-14143-11-00

1
Out of stock

3

JET, MAIN (#60)

137-14143-12-00

1
Out of stock

3

JET, MAIN #65

(137-14143-13-00)

1
Out of stock

3

JET, MAIN (#70)

137-14143-14-00

1
Out of stock

3

JET, MAIN #75

(137-14143-15-00)

1
Out of stock

4

VALVE SEAT ASSY

353-14190-15-00

—

$36.18

In stock

5

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

6

FLOAT

205-14185-00-00

1

$58.29

In stock

7

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

8

BODY, FLOAT CHMBR 1

(174-14181-01-00)

1
Out of stock

9

GASKET, FLOAT CHAMBER

164-14184-00-00

—

$14.25

In stock

10

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

12

SCREW, BODY FITTING

(137-14125-00-00)

1
Out of stock

13

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

14

THROTTLE SCREW SET

53L-14103-00-00

—
Out of stock

15

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

16

AIR SCREW SET

22K-14104-00-00

—

$9.95

In stock

17

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

18

VALVE, THROTTLE 1

(193-14112-25-00)

1
Out of stock

19

. NEEDLE

156-14116-10-00

1
Out of stock

20

CLIP

3FA-14137-00-00

—

$6.80

In stock

21

. SEAT, SPRING

137-14136-00-00

1
Out of stock

22

SPRING, THRTL VALVE

(152-14131-00-00)

1
Out of stock

23

TOP, MIXING CHAMBER

193-14158-00-00

—
Out of stock

24

SPRING, THRTL STOP

(193-14133-00-00)

1
Out of stock

25

SCREW, CABLE ADJUSTING

(193-14124-26-00)

1
Out of stock

26

CAP

(174-14169-01-00)

1
Out of stock

27

. PLUNGER, STARTER

174-14171-00-00

1
Out of stock

28

SPRING, PLUNGER

132-14135-00-00

—

$4.57

In stock

29

PLATE, STARTER LVR

(174-14178-00-00)

1
Out of stock

30

CAP, PLUNGER

(132-14174-00-00)

1
Out of stock

31

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

32

LEVER, STARTER 1

(193-14175-01-00)

1
Out of stock

33

SCREW, ROD

(193-14486-00-00)

1
Out of stock

34

LEVER, STARTER 2

(193-14176-00-00)

1
Out of stock

35

ROD, STARTER LEVER

(174-14177-00-00)

1
Out of stock

36

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

37

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

38

PLATE

132-14146-00-00

—

$6.65

In stock

39

PIPE

23F-14197-00-00

—

$24.11

In stock
