1990 Yamaha Ovation (CS340P) Track Suspension 2 Diagram

← All diagrams

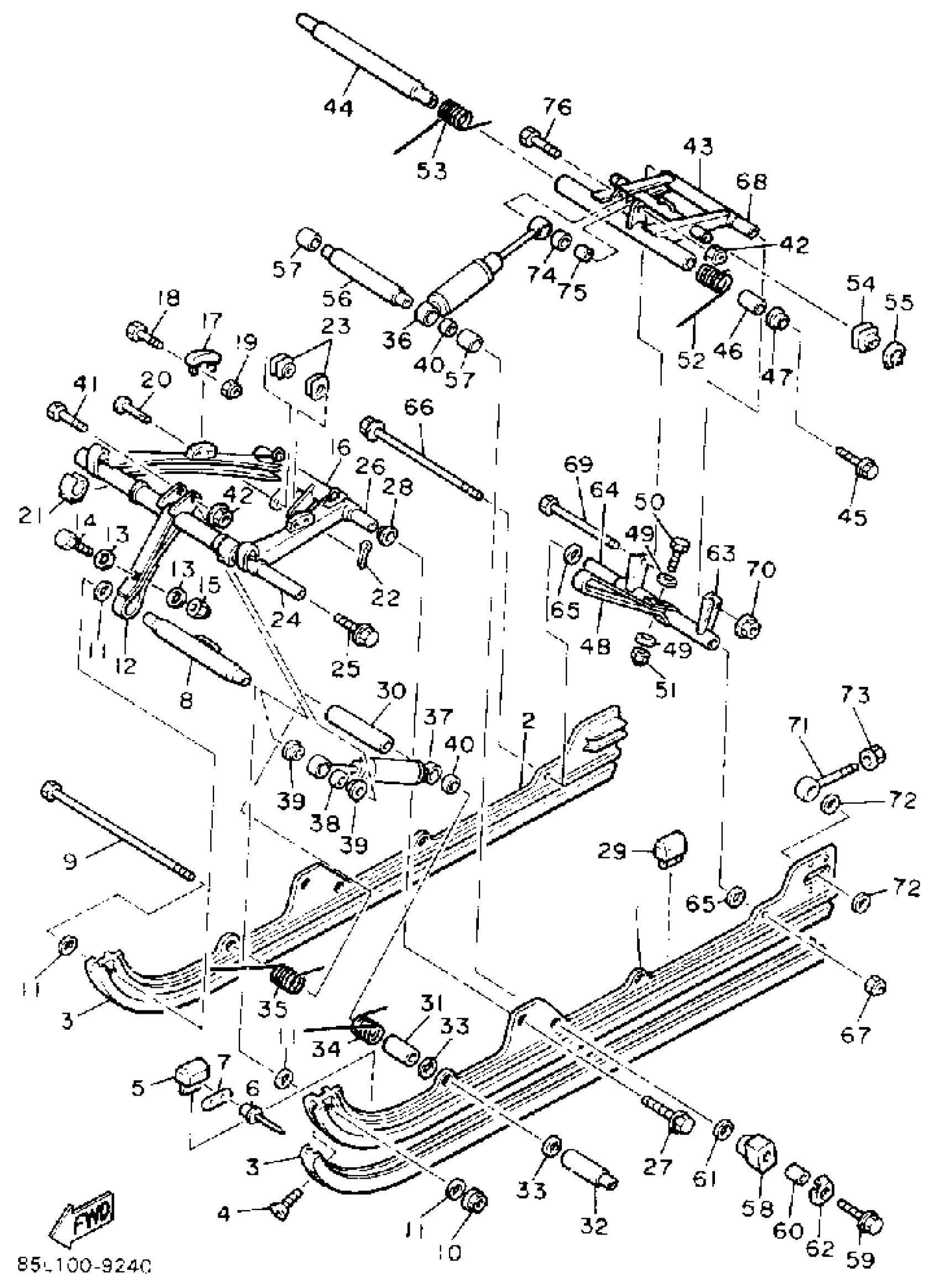

Find the part on the Track Suspension 2 diagram for your 1990 Yamaha Ovation (CS340P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Ovation (CS340P) Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME,SLIDING

85L-W4741-00-00

1
Out of stock

2

FRAME,SLIDING

85L-W4741-00-00

1
Out of stock

3

RUNNER, SLIDING 1 (8Y3-47421-00-00)

8Y3-47421-00-XX

1
Out of stock

4

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

5

DAMPER 1

8V0-47456-00-00

1
Out of stock

6

RIVET, BLIND (8K4)

90267-48062-00

1
Out of stock

7

PLATE, DAMPER

8K2-47458-01-00

1
Out of stock

8

BRACKET 1

8V0-47415-00-00

1
Out of stock

9

BOLT,HEXAGON

97027-08255-00

1
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

.. WASHER, PLATE

92990-08600-00

1
Out of stock

12

STOPPER 1

8Y3-47495-00-00

1
Out of stock

13

WASHER, PLATE

90201-06747-00

1
Out of stock

14

BOLT, HEXAGON

97017-06025-00

1
Out of stock

15

NUT, NYLON

95707-06300-00

1
Out of stock

16

ARM, PIVOT 1

85L-47331-00-00

1
Out of stock

17

RUNNER, SLIDING 2

8F3-47422-01-00

—
Out of stock

18

BOLT, HEXAGON

97017-06025-00

1
Out of stock

19

NUT, NYLON

95707-06300-00

1
Out of stock

20

PIN, CLEVIS (90240-12107-00)

90240-12136-00

1
Out of stock

21

HOOK 2

8V0-47447-01-00

—
Out of stock

22

PIN COTTER

91490-30025-00

—
Out of stock

23

HOOK 2

8R4-47447-00-00

1
Out of stock

24

SHAFT 1

8A5-47465-02-00

—
Out of stock

25

BOLT (8V0)

90109-10771-00

—
Out of stock

26

SHAFT 3

8K2-47485-00-00

1
Out of stock

27

BOLT, FLANGE

95817-10030-00

—
Out of stock

28

COLLAR (8U7)

90387-105G6-00

—
Out of stock

29

DAMPER 1

8V0-47456-00-00

1
Out of stock

30

COLLAR

90387-160M7-00

1
Out of stock

31

COLLAR

8V0-47319-00-00

1
Out of stock

32

COLLAR

90387-166M8-00

1
Out of stock

33

WASHER, PLATE

90201-161E5-00

1
Out of stock

34

SPRING, FRONT 1

85L-47471-00-00

1
Out of stock

35

SPRING,FRONT.2

85L-47472-00-00

—
Out of stock

36

SHOCK ABSORBER

85L-47480-00-00

1
Out of stock

37

SHOCK ABSORBER 2

85L-47481-00-00

1
Out of stock

38

COLLAR

90387-084J8-00

1
Out of stock

39

COLLAR (8U7)

90387-123G4-00

—
Out of stock

40

BUSH, PIVOT

8V0-47371-00-00

—
Out of stock

41

BOLT(3HN)

97017-08045-00

—
Out of stock

42

NUT, NYLON

95717-08300-00

1
Out of stock

43

ARM, PIVOT 2

85L-47332-00-00

1
Out of stock

44

SHAFT 2

8K2-47475-00-00

1
Out of stock

45

BOLT (8V0)

90109-10771-00

—
Out of stock

46

COLLAR 1

8V0-47365-00-00

1
Out of stock

47

WASHER

8V0-47384-00-00

1
Out of stock

48

STOPPER 2

8Y3-47496-00-00

1
Out of stock

49

WASHER, PLATE

90201-06747-00

1
Out of stock

50

BOLT, HEXAGON

97017-06025-00

1
Out of stock

51

NUT, NYLON

95707-06300-00

1
Out of stock

52

SPRING, REAR 1

85L-47473-00-00

1
Out of stock

53

SPRING, REAR 2

85L-47474-00-00

1
Out of stock

54

HOOK 1

86S-47446-01-00

1
Out of stock

55

CIRCLIP(13H)

99009-14400-00

—
Out of stock

56

SHAFT 4

83T-47486-00-00

1
Out of stock

57

COLLAR

8Y3-47319-00-00

1
Out of stock

58

HOOK 2

85K-47447-01-00

—
Out of stock

59

BOLT, FLANGE

95817-10060-00

—
Out of stock

60

COLLAR

90387-103U7-00

1
Out of stock

61

WASHER, PLATE (17K)

90201-106F2-00

—
Out of stock

62

PLATE, GUIDE

84J-47467-00-00

1
Out of stock

63

BRACKET 3

8V0-47417-00-00

1
Out of stock

64

COLLAR

90387-08632-00

1
Out of stock

65

WASHER (1T1)

90201-08649-00

—
Out of stock

66

BOLT, WASHER BASED(51X)

90105-08346-00

—
Out of stock

67

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

68

COLLAR

90387-084J9-00

1
Out of stock

69

BOLT,HEXAGON

97027-08165-00

1
Out of stock

70

NUT, NYLON

95717-08300-00

1
Out of stock

71

COLLAR 3

8K2-47479-01-00

—
Out of stock

72

WASHER, PLATE (888)

90201-20279-00

—
Out of stock

73

NUT, NYLON

95707-10300-00

—
Out of stock

74

BUSH, SOLID

90380-12161-00

1
Out of stock

75

COLLAR(82M)

90387-084R5-00

—
Out of stock

76

BOLT

97014-08040-00

—
Out of stock
