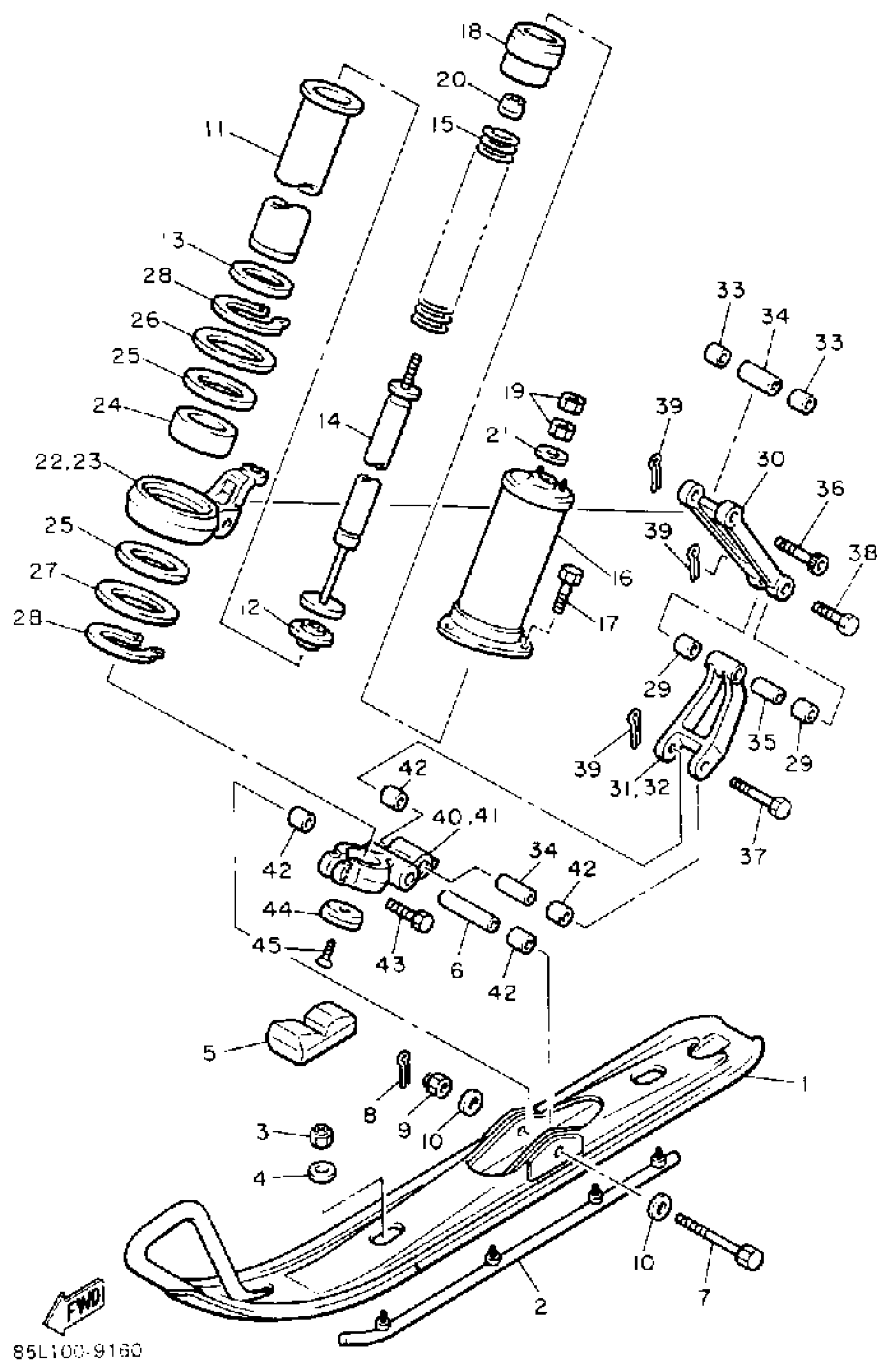

Find the part on the SKI diagram for your 1990 Yamaha Ovation (CS340P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Ovation (CS340P) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

85L-23710-00-00

—
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

STOPPER 1

85L-23743-00-00

1
Out of stock

6

COLLAR (8V0)

90387-106J3-00

1

$13.95

In stock

7

BOLT, WASHER BASED(83M)

90105-10438-00

—

$7.57

In stock

8

PIN, COTTER

91490-20025-00

1

$1.31

In stock

9

NUT, NYLON

95707-10300-00

1

$6.68

In stock

10

WASHER(6TA)

92907-10600-00

1
Out of stock

11

CYLINDER, SHOCK ABSORBER

85L-22471-00-00

—

$134.40

In stock

12

WASHER

81E-23779-00-00

1
Out of stock

13

REBOUND, STOP

85L-22494-00-00

1
Out of stock

14

ABSORBER ASSEMBLY 1

85L-2376A-00-00

1
Out of stock

15

SPRING, COMPRESSION

90501-653F9-00

1
Out of stock

16

HOLDER, ABSORBER

8V0-2376J-00-00

1
Out of stock

17

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

18

BUMP, STOP

85L-22493-00-00

1
Out of stock

19

. NUT

95380-08700-00

1

$3.07

In stock

20

CUSHION

8V0-2386J-00-00

1
Out of stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

ARM, OUTSIDE 1

85L-23851-00-00

1
Out of stock

23

ARM, OUTSIDE 2

85L-23852-00-00

1
Out of stock

24

BUSH, BIMETAL FORMED

90384-63188-00

1
Out of stock

25

OIL SEAL

93109-63044-00

1
Out of stock

26

WASHER, PLATE

90201-637F3-00

1
Out of stock

27

WASHER, PLATE

90201-635H7-00

1
Out of stock

28

CIRCLIP

93410-63066-00

1
Out of stock

29

—

$9.15

In stock

30

ARM, FRONT 1

8V0-2382E-01-00

1
Out of stock

31

ARM, FRONT 2 (L, H)

8V0-2382F-02-00

1
Out of stock

32

ARM, FRONT4 (R, H)

8V0-2383F-02-00

1
Out of stock

33

—

$9.29

In stock

34

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

35

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

36

—

$31.92

In stock

37

BOLT, WITH HOLE

90102-10054-00

1
Out of stock

38

BOLT, WITH HOLE

90102-10055-00

1
Out of stock

39

PIN, COTTER

91490-20025-00

1

$1.31

In stock

40

BRACKET 1 (L, H)

81E-2376E-00-00

1
Out of stock

41

BRACKET 2 (R, H)

81E-2377E-00-00

1
Out of stock

42

—

$9.15

In stock

43

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

44

WASHER 1

81E-23737-00-00

—

$10.09

In stock

45

SCREW, FLAT HEAD(4EM)

98707-06016-00

—

$6.68

In stock
