1989 Yamaha Ovation (CS340N) Generator Diagram

← All diagrams

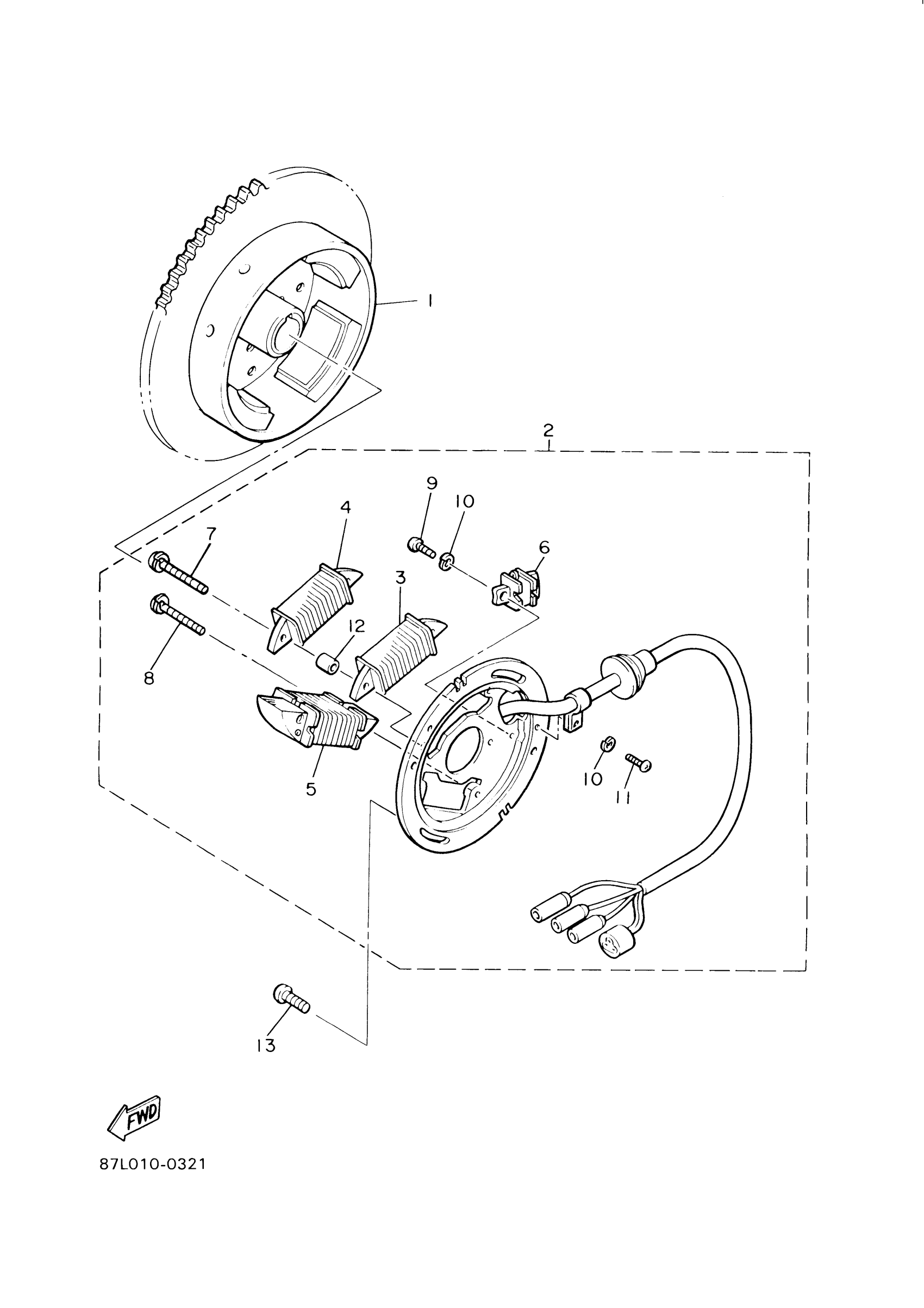

Find the part on the Generator diagram for your 1989 Yamaha Ovation (CS340N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Ovation (CS340N) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

85L-85550-02-00

1

$261.66

In stock

2

BASE ASSEMBLY

85L-85560-00-00

1
Out of stock

3

COIL, CHARGE

81L-85520-M0-00

—

$94.88

In stock

4

COIL, LIGHTING 2

81L-81314-M0-00

—

$95.42

In stock

5

COIL, LIGHTING 1

81L-81313-M0-00

1

$61.95

In stock

6

PULSER ASSY

8R4-85580-M0-00

—

$148.80

In stock

7

SCREW, WITH WASHER(81E)

90159-05129-00

1
Out of stock

8

SCREW, WITH WASHER(81E)

90159-05130-00

1

$1.49

In stock

9

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

12

COLLAR (1M1)

90387-06553-00

1
Out of stock

13

SCREW, PAN

98507-06014-00

1

$6.18

In stock
