1996 Yamaha Ovation Le (CS340EW) Shroud Diagram

← All diagrams

Find the part on the Shroud diagram for your 1996 Yamaha Ovation Le (CS340EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

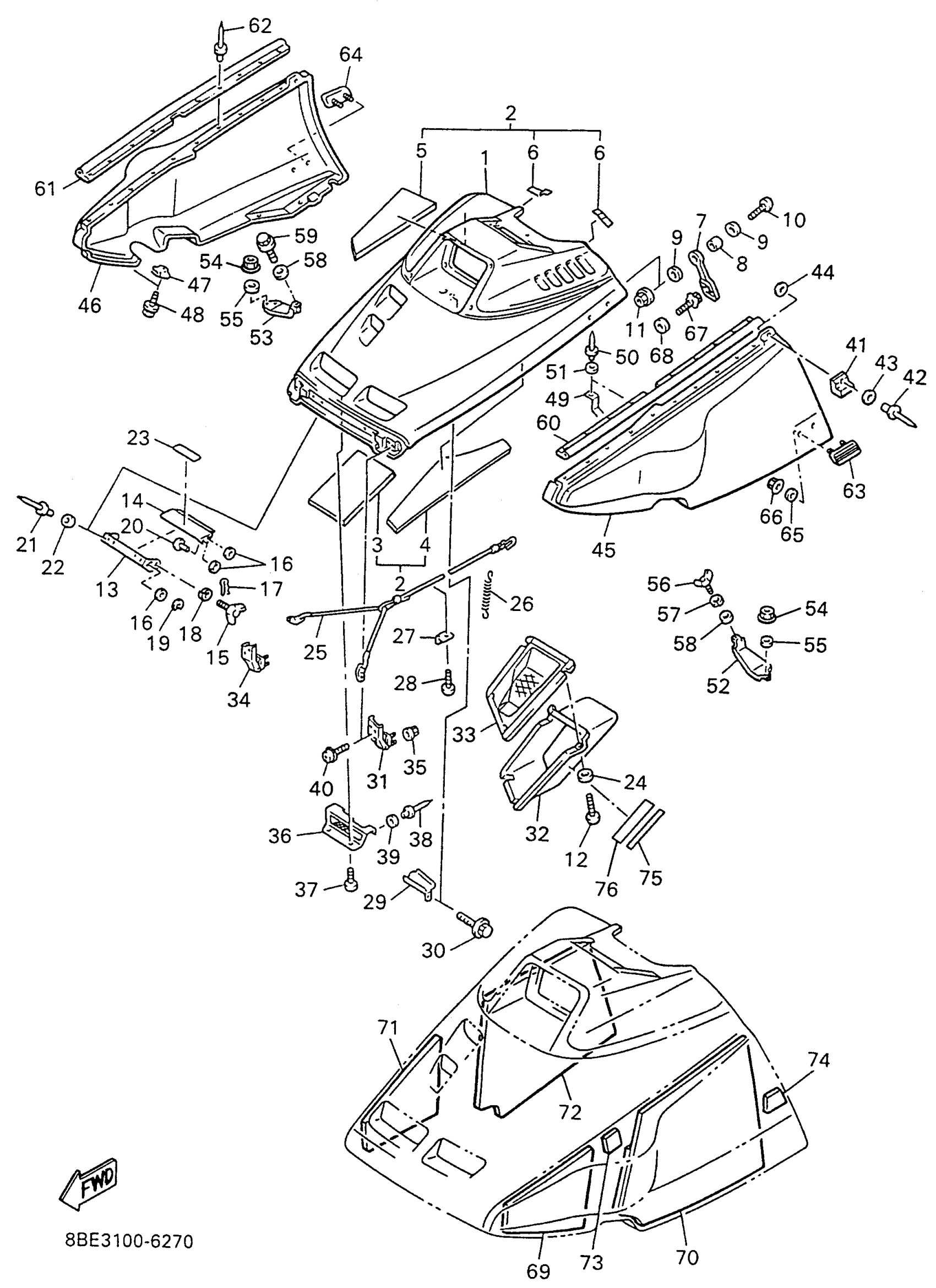

1996 Yamaha Ovation Le (CS340EW) Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD ASSEMBLY

88E-Y7711-10-00

1
Out of stock

2

LINING SET

89E-W7726-00-00

1
Out of stock

3

LINING, SHROUD 1

85L-77261-00-00

1
Out of stock

4

LINING, SHROUD 2

85L-77262-00-00

1
Out of stock

5

LINING, SHROUD 3

85L-77263-00-00

1
Out of stock

6

DAMPER, SHROUD

85L-77196-00-00

1
Out of stock

7

BODY, LATCH 1

8V0-77171-00-00

1
Out of stock

8

COLLAR (420)

90387-06241-00

1
Out of stock

9

WASHER, PLATE

90201-06020-00

1
Out of stock

10

SCREW, BINDING

98907-06025-00

1
Out of stock

11

NUT, FLANGE(4MV)

95707-06500-00

1
Out of stock

12

SCREW, TAPPING(4MV)

97707-50016-00

1
Out of stock

13

STAY 1

85L-77125-01-00

1
Out of stock

14

STAY 3

85L-77127-01-00

1
Out of stock

15

BOLT, WING(8W1)

90122-05022-00

1
Out of stock

16

. WASHER, PLATE

90202-05088-00

1
Out of stock

17

PIN, HAIR 6474123500

90468-10003-00

—
Out of stock

18

WASHER(3SX)

92907-05100-00

—
Out of stock

19

CIRCLIP (EU0)

99080-04600-00

1
Out of stock

20

PIN

90249-05136-00

1
Out of stock

21

RIVET (856)

90267-48014-00

—
Out of stock

22

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

23

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

24

WASHER, PLATE (8J0)

90201-05725-00

—
Out of stock

25

STOPPER,SHROUD

89X-77118-00-00

1
Out of stock

26

CLAMP, ROD

80L-77159-00-00

1
Out of stock

27

CLAMP(83R)

90461-08113-00

—
Out of stock

28

SCREW, TRUSS TAP.

97707-50014-00

—
Out of stock

29

PLATE 1

85L-77185-00-00

1
Out of stock

30

BOLT, WITH WASHER (4L0)

90119-05059-00

—
Out of stock

31

HINGE ASSEMBLY

85L-77140-00-00

1
Out of stock

32

DUCT

85L-77194-00-00

1
Out of stock

33

PROTECTOR 3

85L-77553-00-00

1
Out of stock

34

HINGE ASSEMBLY 2

85L-7714A-00-00

1
Out of stock

35

NUT, FLANGE(4MV)

95707-06500-00

1
Out of stock

36

PROTECTOR 4

85L-77554-00-00

1
Out of stock

37

SCREW, TRUSS TAP.

97707-50014-00

—
Out of stock

38

RIVET (856)

90267-48014-00

—
Out of stock

39

WASHER, PLATE (34L)

90201-043H7-00

—
Out of stock

40

SCREW, W/WASHER (4L0)

90159-06060-00

—
Out of stock

41

STOPPER

85L-77188-00-00

—
Out of stock

42

RIVET, BLIND (8M6)

90267-48051-00

—
Out of stock

43

WASHER, SPECIAL

85L-77116-00-00

1
Out of stock

44

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

45

HOOD 1

88E-21982-10-00

1
Out of stock

46

HOOD 2

88E-21983-10-00

1
Out of stock

47

NUT, SPRING (26H)

90183-06023-00

—
Out of stock

48

BOLT, WITH WASHER

90119-06226-00

—
Out of stock

49

STAY, BELT

85L-77338-00-00

1
Out of stock

50

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

51

WASHER, PLATE (8M6)

90201-047A2-00

—
Out of stock

52

BRACKET 3

85L-2196F-00-00

1
Out of stock

53

BRACKET 4

85L-2196G-00-00

1
Out of stock

54

NUT, NYLON

95707-05300-00

—
Out of stock

55

WASHER, PLAIN LARGE

92907-05200-00

—
Out of stock

56

BOLT, WING (36F)

90122-06020-00

—
Out of stock

57

WASHER, PLATE

90201-06020-00

1
Out of stock

58

WASHER, PLATE 1412342700

90202-06008-00

—
Out of stock

59

BOLT, WITH WASHER

90119-06226-00

—
Out of stock

60

BUSH, RUBBER 1

85L-77515-00-00

1
Out of stock

61

BUSH, RUBBER 2

85L-77516-00-00

1
Out of stock

62

RIVET(81E)

90269-05055-00

—
Out of stock

63

PROTECTOR 1

85L-77551-00-00

1
Out of stock

64

PROTECTOR 2

85L-77552-00-00

1
Out of stock

65

WASHER, PLATE 8067717800

90201-05029-00

—
Out of stock

66

NUT, NYLON

95707-05300-00

—
Out of stock

67

HOLDER, LATCH

8V0-77175-00-00

—
Out of stock

68

PLATE

4U5-2176E-00-00

—
Out of stock

69

LINING, SHROUD 4

85L-77264-00-00

1
Out of stock

70

LINING, SHROUD 5

85L-77265-00-00

1
Out of stock

71

DAMPER, NOISE 12

85L-77272-00-00

1
Out of stock

72

DAMPER, NOISE 13

85L-77273-00-00

1
Out of stock

73

TAPE 3

85L-7717G-01-00

1
Out of stock

74

TAPE 4

85L-7717H-01-00

1
Out of stock

75

LABEL, CAUTION

87D-1417E-01-00

1
Out of stock

76

LABEL 1

8Y7-47578-00-00

1
Out of stock
