1995 Yamaha Ovation LE (CS340EV) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1995 Yamaha Ovation LE (CS340EV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

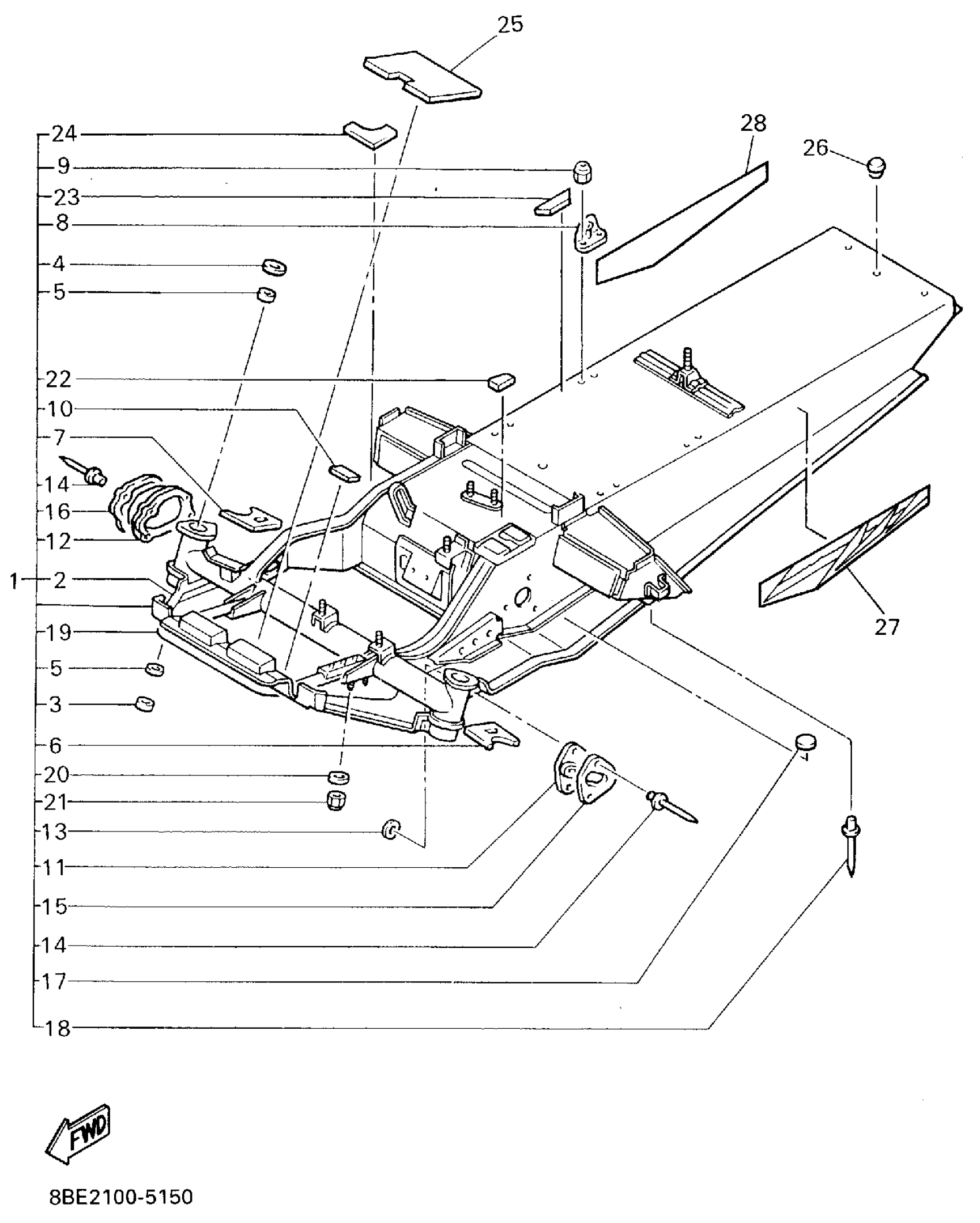

1995 Yamaha Ovation LE (CS340EV) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

89S-21910-00-00

1
Out of stock

2

PANEL,SUB FRAME 1

87E-21912-00-00

1
Out of stock

3

. OIL SEAL

93103-44134-00

1
Out of stock

4

. OIL SEAL

93104-44095-00

1
Out of stock

5

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

6

. TAPE 1

85L-7717E-00-00

1
Out of stock

7

. TAPE 2

85L-7717F-00-00

1
Out of stock

8

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

9

NUT, NYLON

95707-06300-00

1

$3.20

In stock

10

TAPE, 5

85L-7717J-00-00

1
Out of stock

11

. COVER 1

80L-2198F-00-00

1
Out of stock

12

. COVER 2

80L-2198G-00-00

1
Out of stock

13

WASHER, PLATE

90201-04027-00

1
Out of stock

14

RIVET, BLIND

90267-40029-00

1

$6.68

In stock

15

. WASHER 1

80L-77525-00-00

1
Out of stock

16

. WASHER 2

80L-77526-00-00

1
Out of stock

17

SPACER

80F-21998-00-00

—

$11.69

In stock

18

RIVET, BLIND

90267-48018-00

—

$7.35

In stock

19

. BUMPER, FRONT 2

85L-77512-00-00

1
Out of stock

20

WASHER, PLATE (3Y6)

90201-083A6-00

—
Out of stock

21

NUT, NYLON

95717-08300-00

—

$2.57

In stock

22

. DAMPER

85L-14409-00-00

1
Out of stock

23

. SHIELD, NOISE 2

85L-2199J-00-00

1
Out of stock

24

DAMPER, SHROUD

85L-77196-00-00

1
Out of stock

25

SHIELD, HEAT

85L-2199H-00-00

1
Out of stock

26

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

27

EMBLEM 1

8BE-77351-10-00

1
Out of stock

28

EMBLEM 2

8BE-77352-10-00

1
Out of stock
