1995 Yamaha Ovation LE (CS340EV) Electrical 3 Diagram

← All diagrams

Find the part on the Electrical 3 diagram for your 1995 Yamaha Ovation LE (CS340EV), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

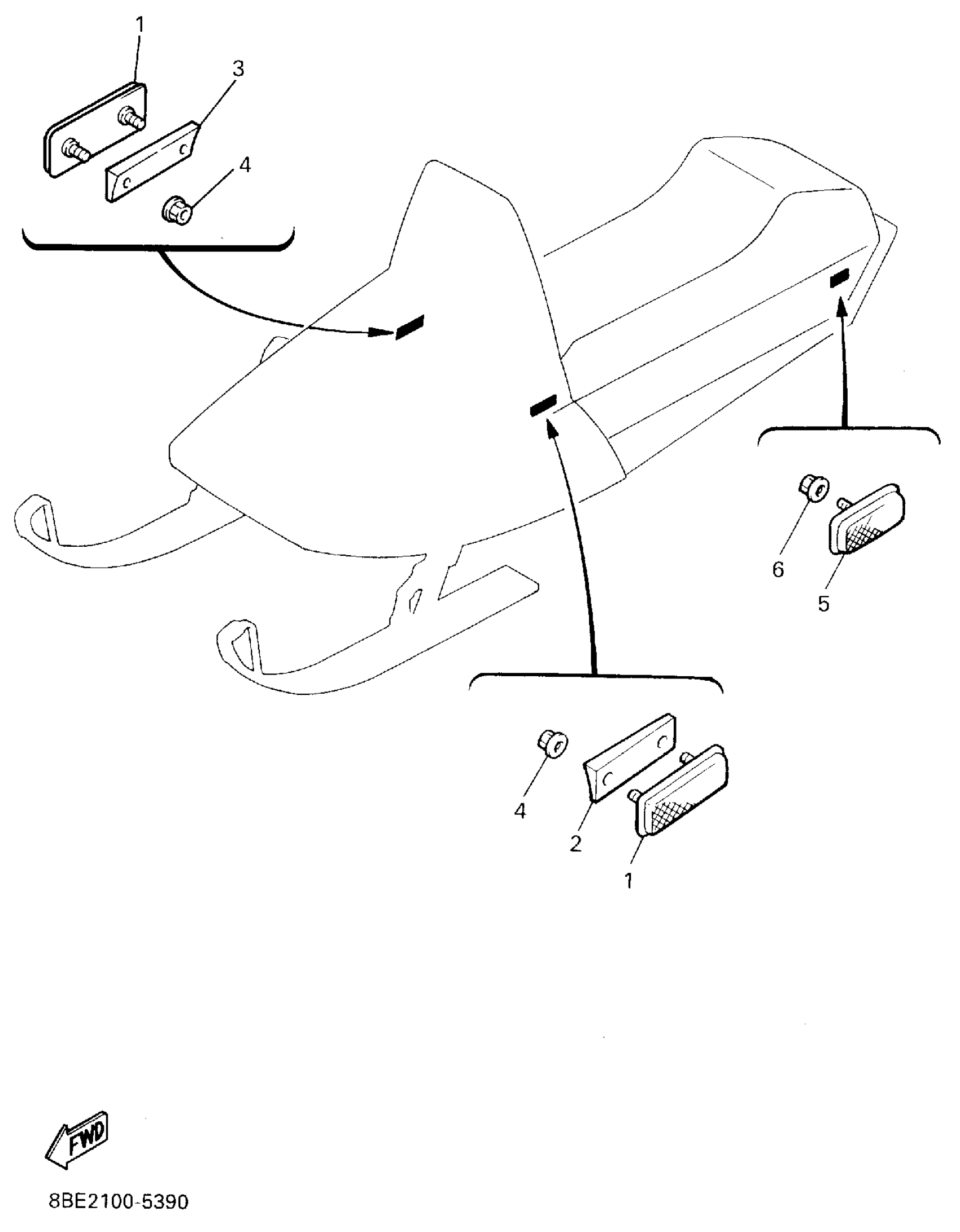

1995 Yamaha Ovation LE (CS340EV) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

2

BASE, REFLECTOR 2

85L-8511E-00-00

1
Out of stock

3

BASE, REFLECTOR 3

85L-8511F-00-00

1
Out of stock

4

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock

5

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

6

NUT, FLANGE(3GM)

95707-05500-00

1

$6.18

In stock
