2000 Yamaha CS340 (CS340ED) SKI Diagram

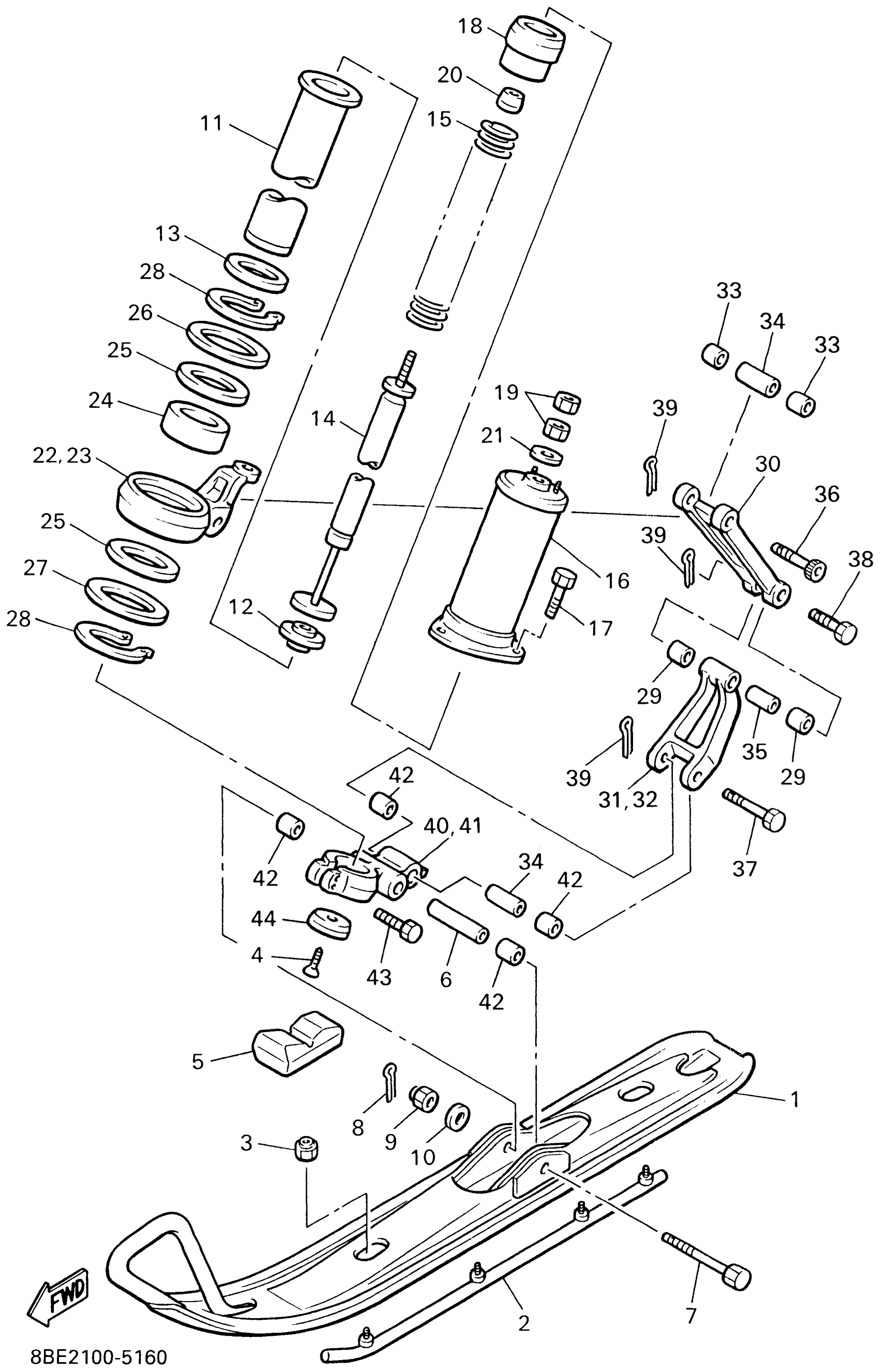

Find the part on the SKI diagram for your 2000 Yamaha CS340 (CS340ED), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SKI COMP. 1
85L-23710-00-00
2
SKI RUNNER,1
VMX-23731-01-XX
5
STOPPER 1
85L-23743-00-00
12
WASHER
81E-23779-00-00
13
REBOUND, STOP
85L-22494-00-00
14
ABSORBER ASSEMBLY 1
85L-2376A-00-00
15
SPRING, COMPRESSION
90501-653F9-00
16
HOLDER, ABSORBER
8V0-2376J-00-00
18
BUMP, STOP
85L-22493-00-00
20
CUSHION
8V0-2386J-00-00
21
WASHER(6TC)
92907-08200-00
22
ARM, OUTSIDE 1
85L-23851-00-00
23
ARM, OUTSIDE 2
85L-23852-00-00
24
BUSH, BIMETAL FORMED
90384-63188-00
25
OIL SEAL
93109-63044-00
26
WASHER, PLATE
90201-637F3-00
27
WASHER, PLATE
90201-635H7-00
28
CIRCLIP
93410-63066-00
30
ARM, FRONT 1
8V0-2382E-01-00
31
ARM, FRONT 2 (L, H)
8V0-2382F-02-00
32
ARM, FRONT4 (R, H)
8V0-2383F-02-00
37
BOLT, WITH HOLE
90102-10055-00
38
BOLT, WITH HOLE
90102-10054-00
40
BRACKET 1 (L, H)
81E-2376E-00-00
41
BRACKET 2 (R, H)
81E-2377E-00-00
