2000 Yamaha CS340 (CS340ED) Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 2000 Yamaha CS340 (CS340ED), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

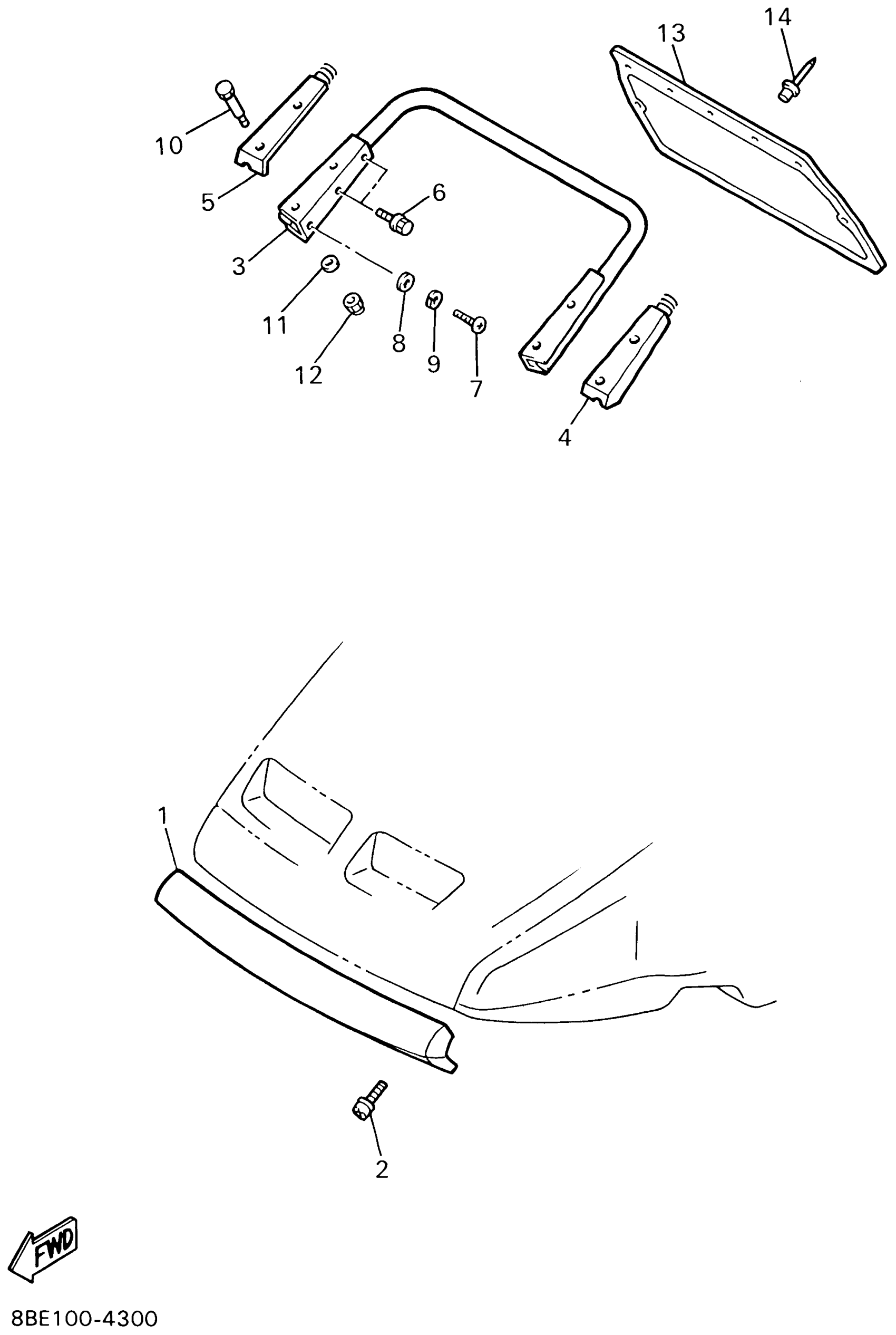

2000 Yamaha CS340 (CS340ED) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

88E-77511-00-00

1
Out of stock

2

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

3

BUMPER, REAR 1

85L-77541-00-00

1
Out of stock

4

BUMPER, REAR 2

8W6-77542-00-00

1
Out of stock

5

BUMPER, REAR 3

8W6-77543-00-00

1
Out of stock

6

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

7

SCREW, BINDING

98907-08020-00

1
Out of stock

8

WASHER(6TC)

92907-08200-00

1
Out of stock

9

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

10

BOLT

8W6-77519-00-00

1
Out of stock

11

WASHER, PLAIN LARGE

92907-05200-00

1
Out of stock

12

NUT, CAP

95307-05800-00

1

$5.62

In stock

13

FLAP

8V9-77595-00-00

1
Out of stock

14

RIVET, BLIND (8R6)

90267-48086-00

1

$3.49

In stock
