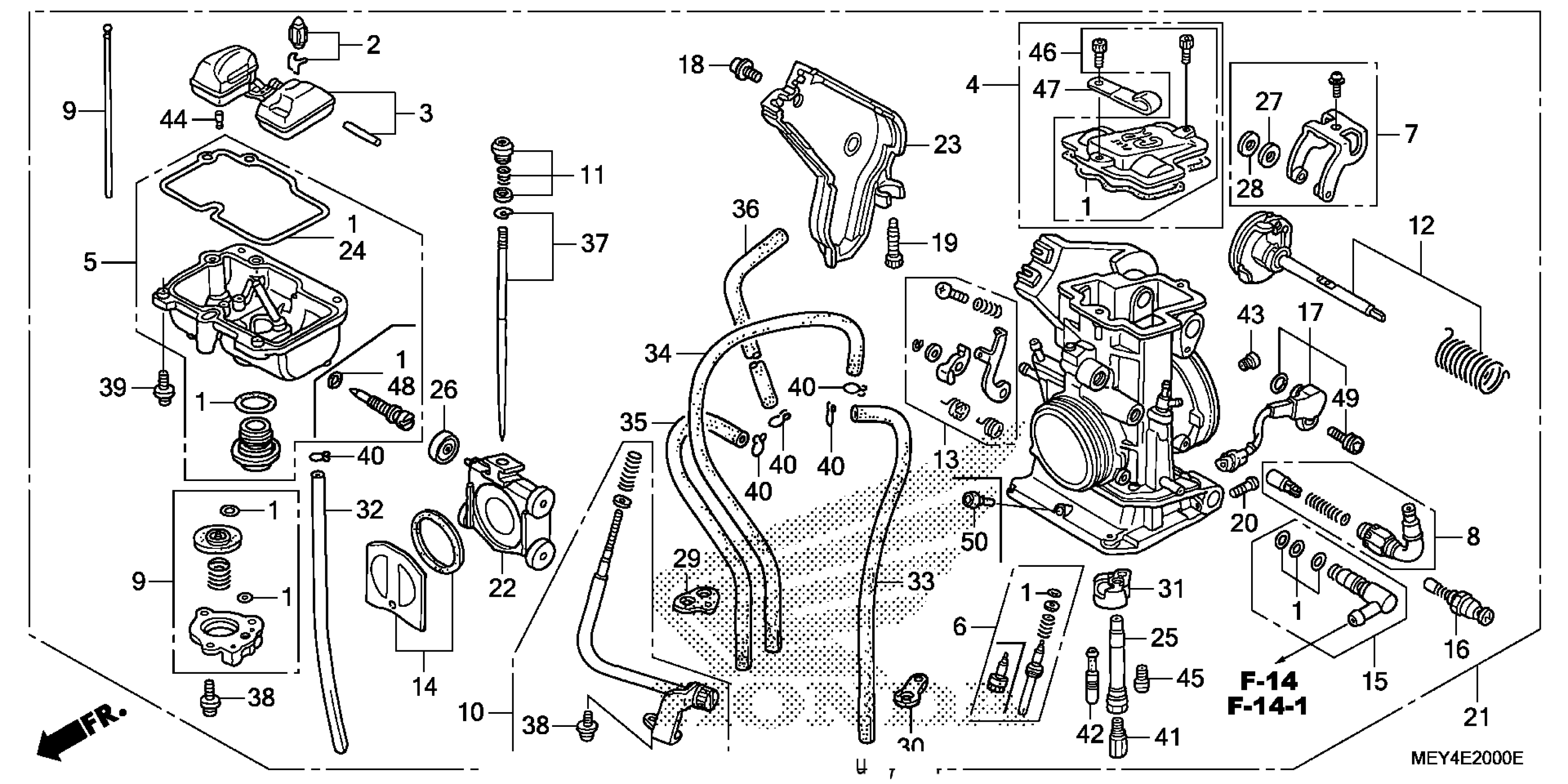

Honda CRF450XAC (05) CRF450X, JPN, VIN# JH2PE061-5K000001 TO JH2PE061-5K099999 CARBURETOR Diagram

#

Description
Price

1

GASKET SET (CARBURETOR NO.) | Use up to Engine SN FCR04A B

16010-MEN-671

$28.71

1

GASKET SET (CARBURETOR NO.) | Use from Engine SN FCR04A C

16010-MEN-851

$25.22

2

VALVE SET, FLOAT

16011-KZ3-J11

$35.41

3

FLOAT SET

16013-MEB-671

$28.96

4

TOP SET (CARBURETOR NO.) | Use up to Engine SN FCR04A A This part replaces 16014-MEN-731.

16014-MEN-732

Unavailable

4

TOP SET (CARBURETOR NO.) | Use from Engine SN FCR04A B

16014-MEN-732

Unavailable

5

CHAMBER SET, FLOAT (CARBURETOR NO.) | Use up to Engine SN FCR04A B

16015-KRN-731

Unavailable

5

CHAMBER SET, FLOAT (CARBURETOR NO.) | Use from Engine SN FCR04A C

16015-MEN-851

$83.42

6

SCREW SET A

16016-KSC-671

$28.48

7

ARM SET, LINK

16018-MEB-671

Unavailable

8

START SET, HOT

16019-MEB-671

$28.01

9

DIAPHRAGM SET, PUMP

16021-MEB-771

$29.89

10

SCREW SET B

16028-MEB-671

$27.63

11

SCREW SET, JET NEEDLE

16029-MEB-671

Unavailable

12

SHAFT SET, THROTTLE

16032-MEB-671

Unavailable

13

LEVER SET, PUMP

16033-MEB-671

Unavailable

14

VALVE SET, FLOATING

16037-MEB-671

$113.03

15

JOINT SET, FUEL

16038-MEB-671

$7.89

16

VALVE SET, STARTER

16046-MEB-671

$28.05

17

SENSOR ASSY., THROTTLE (CARBURETOR NO.) | Use up to Engine SN FCR04A A

16060-MEB-671

Unavailable

17

SENSOR ASSY., THROTTLE (CARBURETOR NO.) | Use from Engine SN FCR04A B

16060-MEY-671

$153.46

18

BOLT, COVER

16080-MEB-671

Unavailable

20

SCREW, PAN

16083-MEB-671

$1.46

21

CARBURETOR ASSY. (FCR04A C) (FRAME NO.) | Use up to Engine SN 5K001854 This part replaces 16100-MEY-673.

16100-MEY-674

Unavailable

21

CARBURETOR ASSY. (FCR04A C) (FRAME NO.) | Use up to Engine SN 5K001854

16100-MEY-674

Unavailable

21

CARBURETOR ASSY. (FCR04A C) (FRAME NO.) | Use from Engine SN 5K001855

16100-MEY-674

Unavailable

22

VALVE, THROTTLE

16112-MEB-671

Unavailable

23

COVER, THROTTLE

16157-MEN-671

$23.58

24

GASKET, FLOAT CHAMBER

16163-MEB-671

$12.61

25

HOLDER, NEEDLE JET

16165-MEB-671

Unavailable

26

ROLLER

16172-MEB-671

$7.46

27

WASHER, PLAIN (PO)

16177-MEB-671

$1.52

28

WASHER, PLAIN (SUS)

16178-MEB-671

$1.35

29

BINDER (CARBURETOR NO.) | Use from Engine SN FCR04A C

16178-MEN-851

$5.23

29

BINDER (CARBURETOR NO.) | Use up to Engine SN FCR04A B

16179-KZ4-690

$9.75

30

BINDER (CARBURETOR NO.) | Use from Engine SN FCR04A C

16179-MEY-671

$7.11

30

BINDER (NOT AVAILABLE) | Use up to Engine SN FGR04A B This part replaces 16179-428-670.

16179-428-671

Unavailable

31

PLATE, BUFFER

16185-MEN-671

$10.81

32

TUBE, OVERFLOW (CARBURETOR NO.) | Use up to Engine SN FCR04A B

16196-MEB-671

$4.81

32

TUBE, OVERFLOW (CARBURETOR NO.) | Use from Engine SN FCR04A C

16196-MEN-851

$8.08

33

TUBE, AIR VENT

16197-MEB-671

$6.31

34

TUBE, AIR VENT

16198-MEY-671

$11.91

35

TUBE, AIR VENT

16199-MEB-671

$6.31

36

TUBE, AIR VENT

16199-MEY-671

$9.94

37

NEEDLE SET, JET

16203-MEY-671

Unavailable

38

SCREW-WASHER (4X8)

93892-04008-08

$1.18

38

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.18

39

SCREW-WASHER (4X14)

93892-04014-08

$1.14

39

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.14

40

CLIP, TUBE (B7)

95002-02079

$1.15

41

JET, MAIN (#142)

99101-357-1420

$8.21

42

JET, SLOW (#45)

99103-GBF-0450

$13.85

42

JET, SLOW (#45) This part replaces 99103-KA3-0450.

99103-GBF-0450

$13.85

42

JET, SLOW (#45) This part replaces 99103-440-0450.

99103-GBF-0450

$13.85

43

JET, SLOW AIR (#100)

99104-MEB-1000

Unavailable

44

JET, LEAK (#70)

99108-KRN-0700

$12.45

45

JET, BY-STARTER (#70)

99112-MEY-0700

$12.43

46

TOP SET (CARBURETOR NO.) | Use from Engine SN FCR04A B

16072-MEN-731

Unavailable

47

CLIP (CARBURETOR NO.) | Use from Engine SN FCR04A B

16088-MEN-731

$7.26

48

O-RING (1.3X4.3) (CARBURETOR NO.) | Use from Engine SN FCR04A C

16076-ND5-004

$2.40
