Description

Price

1

MAINSHAFT (15T)

23210-MKE-A00

$152.17

2

COUNTERSHAFT

23220-MKE-A01

$147.58

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$13.40

4

GEAR, COUNTERSHAFT LOW (32T)

23411-MKE-A01

$106.46

5

GEAR, MAINSHAFT SECOND (17T)

23421-MKE-A00

$54.28

6

GEAR, COUNTERSHAFT SECOND (29T)

23431-MKE-A00

$100.83

7

COLLAR (27X30X13.2)

23432-MKE-A00

$16.09

8

GEAR, MAINSHAFT THIRD (19T) This part replaces 23441-MKE-A00.

23441-MKE-AF0

$98.42

9

GEAR, COUNTERSHAFT THIRD (27T)

23451-MKE-A00

$100.83

10

GEAR, MAINSHAFT FOURTH (19T)

23461-MKE-A00

$87.19

11

COLLAR, SPLINE (26X14.3)

23462-MKE-A00

$15.95

12

GEAR, COUNTERSHAFT FOURTH (23T)

23471-MKE-A00

$105.51

13

GEAR, MAINSHAFT FIFTH (23T)

23481-MKE-A00

$89.63

14

COLLAR (26X29X12.3)

23482-MKE-A00

$13.55

15

GEAR, COUNTERSHAFT FIFTH (24T)

23491-MKE-A00

$111.20

16

COLLAR (25X28X11)

23492-KY2-000

$21.43

17

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.10

18

SPROCKET, DRIVE (13T)

23802-MEN-730

$37.78

19

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$1.97

20

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.33

21

BOLT, UBS (8X33)

90112-413-000

$3.83

22

WASHER (25X32X1.0)

90401-HP1-670

$2.77

23

WASHER, SPLINE (26MM)

90402-HP6-A00

$2.31

24

PLATE, BEARING HOLDER

90441-KRM-840

$0.58

25

WASHER, THRUST (24.1X37X1.0)

90445-MKE-A00

$3.31

26

WASHER, THRUST (17.1X30X1.5)

90446-MKE-A00

$3.31

27

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.84

28

WASHER, THRUST INVOLUTE (25X31X1.5)

90451-MEY-670

$2.43

29

WASHER, SPLINE (26MM)

90461-MKE-A00

$3.06

30

WASHER, LOCK (26MM)

90462-MKE-A00

$3.25

31

WASHER, SPRING (24MM)

90501-KSC-670

$4.24

32

WASHER, THRUST (19MM)

90554-KA5-680

$4.35

33

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.12

34

CIRCLIP, SPECIAL (OUTER) (26MM)

90602-MKE-A00

$2.74

35

BEARING, RADIAL BALL SPECIAL (6205U)

91003-MEN-A71

$17.33

36

BEARING, RADIAL BALL (24X56X14)

91005-MKE-A01

$30.65

37

BEARING, RADIAL BALL (17X40X11)

91006-MEN-A71

$20.52

38

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$8.99

39

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.85

40

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.64

41

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.55

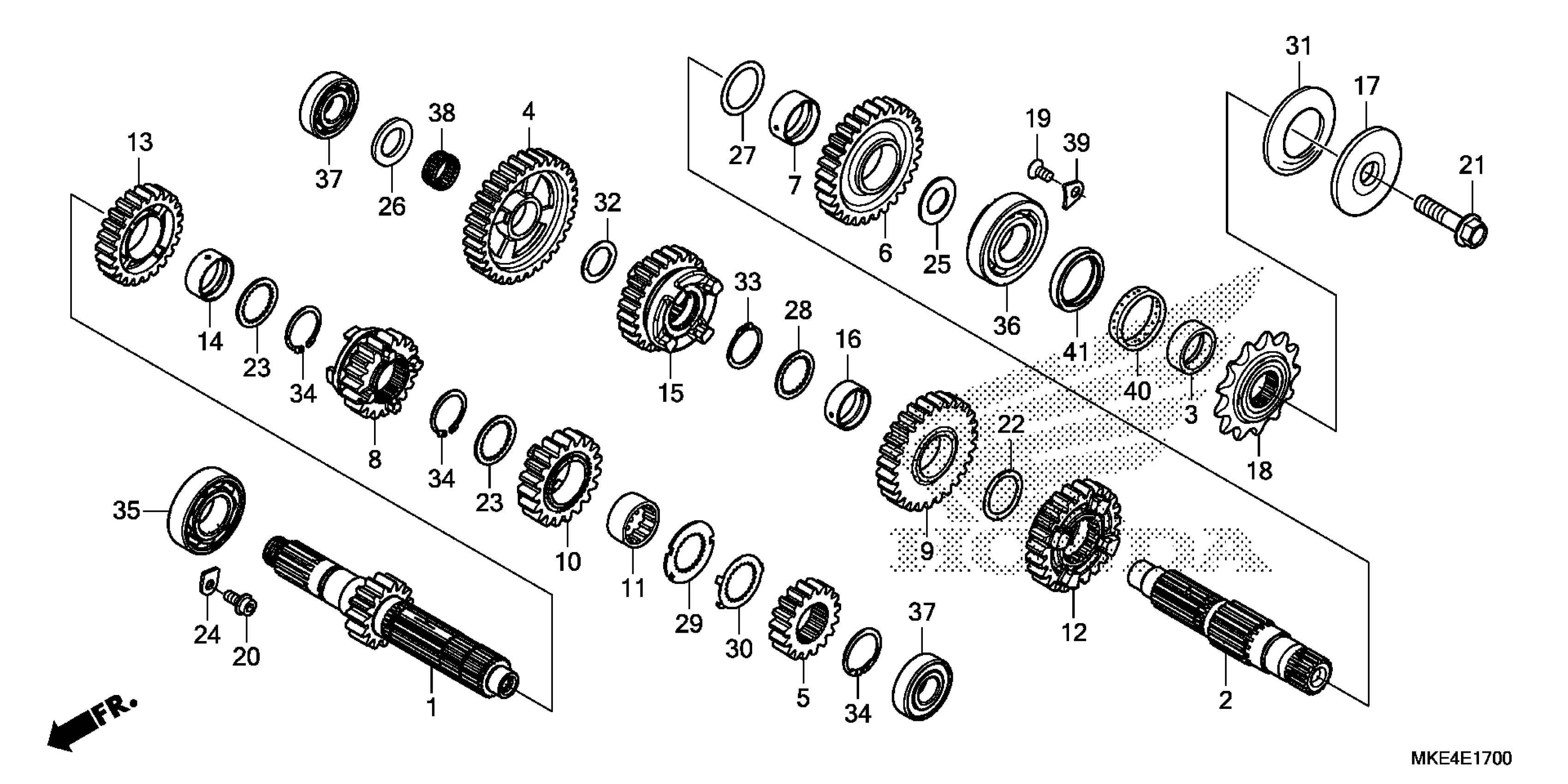

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 TRANSMISSION Diagram
