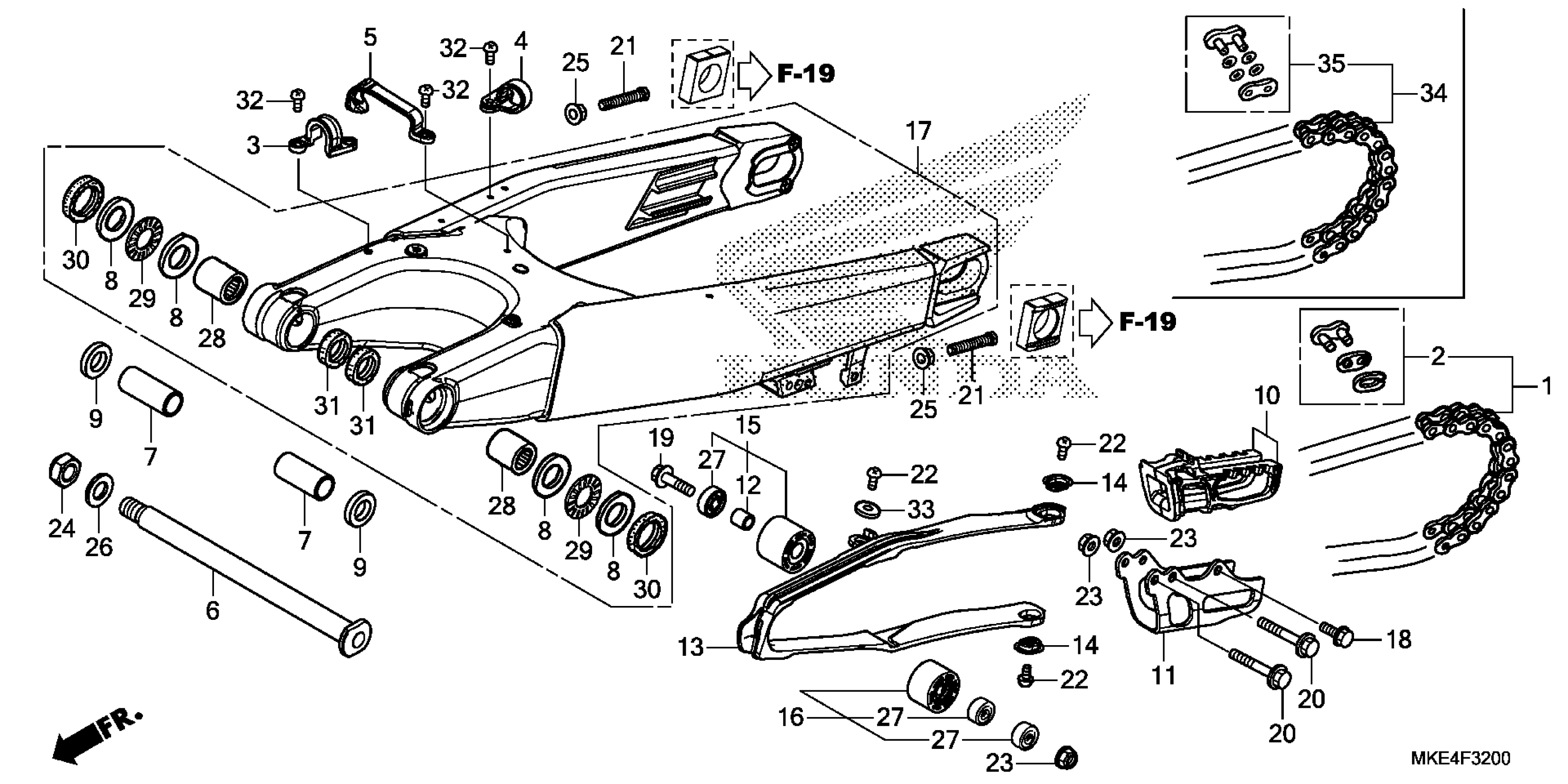

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO) (STANDARD LINK 114L) This part replaces 40530-KRN-A12.

40530-KRN-A31

Unavailable

1

CHAIN, DRIVE (DID520DMA4-114RB) (DAIDO) (STANDARD LINK 114L)

40530-KRN-A31

Unavailable

1

CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL) (STANDARD LINK 114L) | (Optional).

40540-KRN-A32

$198.40

2

MASTER LINK (RK EXCEL)

40531-KRN-A12

$7.58

3

GUIDE, BRAKE HOSE

43468-KRN-A90

$8.40

4

GUIDE A, BRAKE HOSE

43468-KRN-C90

$4.68

5

GUIDE B, BRAKE HOSE

43469-MKE-A00

$5.25

6

SHAFT, SWINGARM PIVOT

52101-KZ4-J40

$24.55

7

COLLAR, SWINGARM (45MM)

52141-MKE-A00

$21.95

8

WASHER, SWINGARM SIDE THRUST

52143-MEN-A30

$1.86

9

COLLAR, SWINGARM PIVOT SIDE

52143-MKE-A00

$11.72

10

GUIDE SET, CHAIN This part replaces 52146-MKE-A00.

52146-MKE-A01

$30.00

10

GUIDE SET, CHAIN

52146-MKE-A01

$30.00

11

PLATE, CHAIN GUIDE

52147-MEN-J00

$45.31

12

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.63

13

SLIDER, CHAIN

52170-MKE-A00

$77.08

14

WASHER, CHAIN SLIDER

52171-KR6-000

$2.49

15

ROLLER, CHAIN (34MM)

52175-MKE-A00

$52.40

16

ROLLER, CHAIN (LOWER) (34MM)

52176-MKE-A00

$52.40

17

SWINGARM SUB-ASSY., RR.

52200-MKE-A00

$999.48

18

BOLT (6X12)

90101-MEN-A60

$2.12

19

BOLT, FLANGE (8X32)

90101-MEN-A70

$3.18

20

BOLT (6X45)

90103-MEN-A60

$3.00

21

BOLT, HEX. (8X47.5)

90105-MEN-000

$2.92

22

SCREW, PAN (5X8)

90115-KV3-700

$2.52

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.05

24

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.79

25

NUT, HEX. (10MM)

90309-357-000

$3.39

26

WASHER (26X14X2.8)

90501-GAH-000

$6.59

26

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.59

27

BEARING, RADIAL BALL (608UU)

91051-KRN-A31

$12.82

28

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$35.23

28

BEARING, NEEDLE (THOMPSON)

91071-MJ0-004

$35.23

29

BEARING, NEEDLE THRUST

91072-KZ3-861

$12.92

30

DUST SEAL (30X37X3)

91251-MKE-A01

$6.55

31

DUST SEAL (22X29X3)

91252-MKE-A01

$5.27

32

SCREW, PAN (5X8)

93500-05008-0G

$0.94

33

WASHER, PLAIN (5MM)

94103-05700

$0.91
