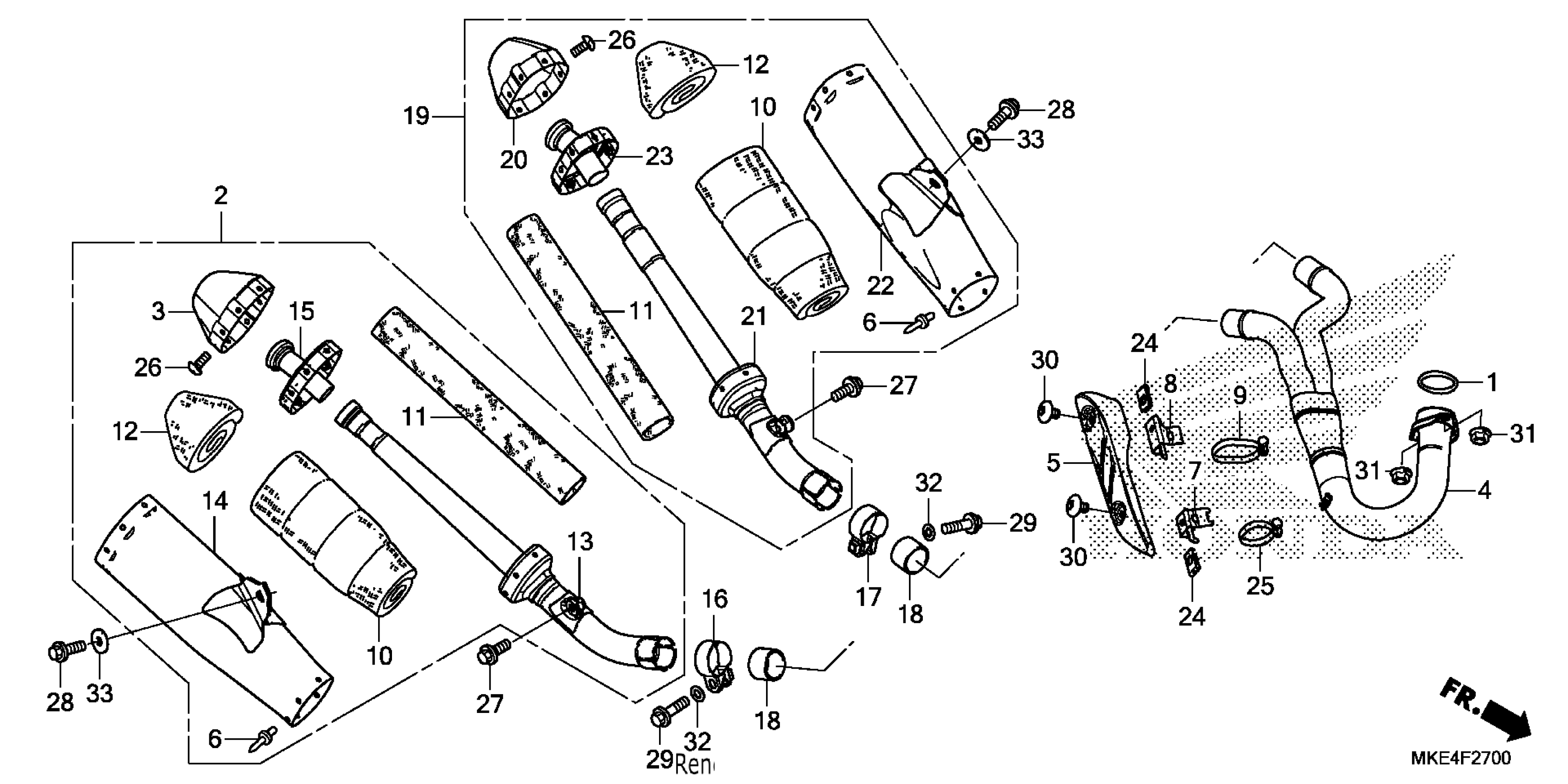

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MEB-670

$4.69

2

MUFFLER ASSY., R.

18300-MKE-A01

$729.85

3

COVER, R. END

18318-MKE-A00

$126.40

4

PIPE, EX.

18320-MKE-A00

$289.79

5

PROTECTOR, EX. PIPE

18323-MKE-A00

$59.28

6

RIVET, BLIND (3.2)

18326-KRN-A00

$1.15

7

STAY, EX. PIPE PROTECTOR

18327-KRN-A40

$5.87

8

STAY, RR. EX. PIPE PROTECTOR

18328-MKE-A00

$6.00

9

BAND, EX. PROTECTOR

18329-MEN-A30

$13.66

10

PACK, GLASS WOOL CENTER

18334-MKE-A00

$91.57

11

WOOL, SUS

18336-MKE-A00

$75.41

12

WOOL B, GLASS

18337-KRN-850

$15.41

13

MUFFLER, R. FR.

18360-MKE-A00

$97.49

14

BODY, R. MUFFLER

18361-MKE-A01

$312.40

15

SEPARATOR (R)

18362-MKE-A00

$38.81

16

BAND, R. EX. PIPE

18373-ML4-003

$29.78

17

BAND, L. EX. PIPE

18374-ML4-003

$15.03

18

GASKET, MUFFLER

18391-ML8-000

$8.48

19

MUFFLER ASSY., L.

18400-MKE-A01

$762.75

20

COVER, L. END

18418-MKE-A00

$126.40

21

MUFFLER, L. FR.

18460-MKE-A00

$97.49

22

BODY, L. MUFFLER

18461-MKE-A01

$312.40

23

SEPARATOR (L)

18462-MKE-A00

$41.16

24

NUT, SPRING (6MM)

19508-KA3-710

$5.47

25

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$12.46

26

BOLT, SPECIAL (5X12)

90101-MKE-A00

$1.81

27

BOLT (8X20)

90109-MEN-A30

$2.80

28

BOLT, FLANGE (8X25) (SH)

90109-MKE-A00

$2.80

29

BOLT, FLANGE (8X32)

90124-MEB-770

$1.88

30

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.66

31

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

32

WASHER, PLAIN (8MM)

94102-08800

$0.87

33

WASHER, PLAIN (8MM)

94103-08000

$0.60
