Description

Price

1

HOLDER, TUBE

17233-KCZ-J20

$1.78

2

CABLE, THROTTLE This part replaces 17910-MKE-A01.

17910-MKE-A71

$58.28

2

CABLE, THROTTLE

17910-MKE-A71

$58.28

3

CABLE, CLUTCH

22870-MKE-A01

$33.29

4

SWITCH ASSY., ENGINE STOP & MODE

35130-MKE-A02

$124.03

8

GRIP, THROTTLE

53140-KRN-A30

$21.63

8

GRIP, THROTTLE This part replaces 53140-MEN-305.

53140-KRN-A30

$21.63

9

GRIP, R. HANDLE (COO) This part replaces 53165-KRN-A30.

53165-MEN-305

$11.45

9

GRIP, R. HANDLE (COO)

53165-MEN-305

$11.45

10

GRIP, L. HANDLE

53166-KRN-A30

$9.92

10

GRIP, L. HANDLE This part replaces 53166-MEN-305.

53166-KRN-A30

$9.92

11

HOUSING, THROTTLE (UPPER)

53167-MKE-A00

$26.98

12

HOUSING, THROTTLE (LOWER)

53168-MKE-A00

$26.98

13

BRACKET, L. HANDLE LEVER

53172-KSK-670

$40.82

16

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.92

17

COVER, L. HANDLE LEVER

53177-KSK-670

$9.43

19

LEVER, L. HANDLEBAR

53178-MEN-A01

$23.79

19

LEVER, L. HANDLEBAR This part replaces 53178-MEN-305.

53178-MEN-A01

$23.79

20

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.81

21

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.88

22

BOLT (6X22)

90102-MEN-A60

$2.54

23

BOLT (6X20)

90106-KRN-A90

$2.40

24

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.92

25

BOLT, LEVER ADJUSTING

90118-MEN-670

$3.87

26

NUT, U (6MM)

90301-782-000

$1.57

27

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.10

28

CLIP, CABLE

90682-MKE-A01

$2.95

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.37

31

NUT, HEX. (6MM)

94001-06200-0S

$1.37

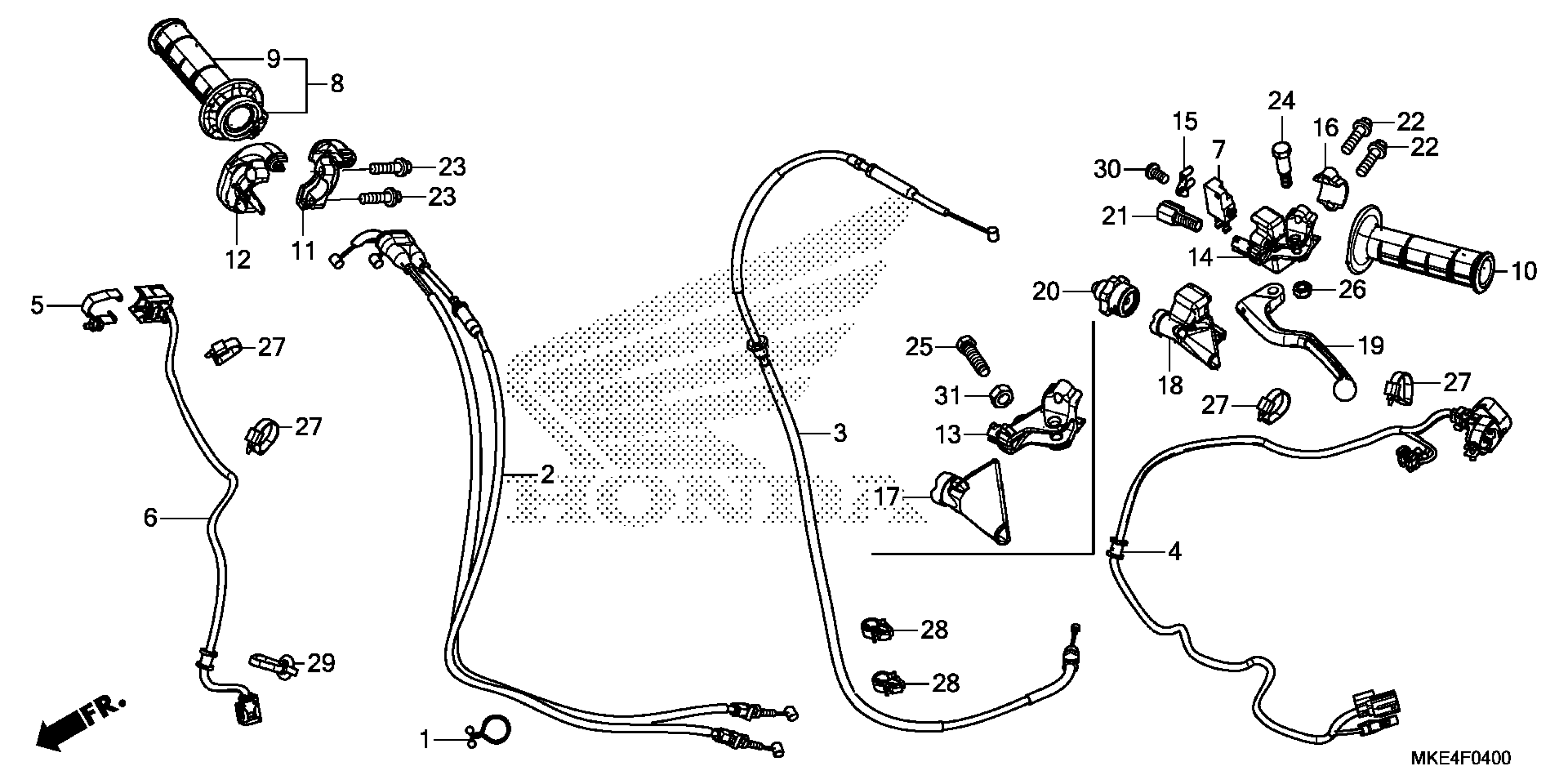

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 HANDLE LEVER@SWITCH@CABLE ('17) Diagram
