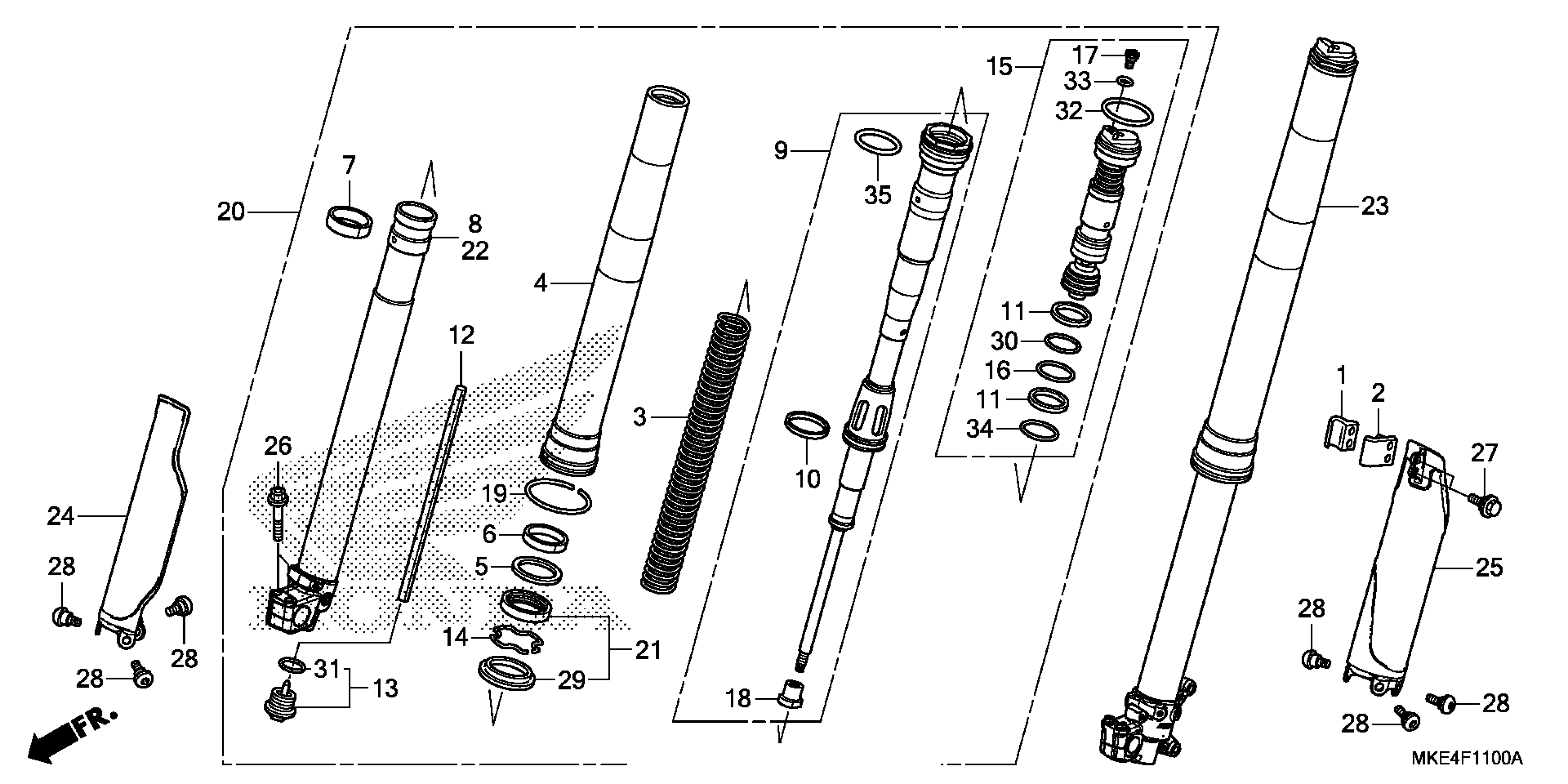

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$6.06

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.47

3

SPRING, FR. FORK (4.8N/MM)

51401-MKE-A01

$102.91

3

SPRING, FR. FORK (4.6N/MM) | (Optional).

51402-MKE-A01

$98.81

3

SPRING, FR. FORK (5.0N/MM) | (Optional).

51403-MKE-A01

$107.16

4

TUBE (OUTER)

51410-MKE-A01

$489.91

5

RING, BACK-UP

51412-KRN-A91

$7.74

6

BUSH, GUIDE

51414-KRN-A91

$12.01

7

BUSH, SLIDER

51415-KRN-A91

$11.82

8

PIPE, R. SLIDE

51420-MKE-A01

$376.37

9

DAMPER, FR.

51430-MKE-A01

$418.66

10

BUSH B, SLIDER

51431-MKE-A01

$11.32

11

BUSH, SLIDER

51436-KRN-A91

$12.68

12

COLLAR, REBOUND NEEDLE

51438-KRN-A91

$10.87

13

BOLT, CENTER

51440-KRN-A91

$35.87

14

RING, OIL SEAL STOP

51447-KRN-A91

$3.58

15

BOLT ASSY., FR. FORK

51450-MKE-A01

$222.85

16

RING, PISTON

51453-KRN-A91

$9.25

17

BOLT, PLUG

51456-KZ3-J41

$5.93

18

NUT, LOCK

51458-KRN-A91

$10.90

19

RING, WEAR

51476-KRN-A91

$7.38

20

FORK SUB-ASSY., R. FR. (COO)

51480-MKE-305

$1,467.56

21

SEAL SET, FR. FORK

51490-KRN-A91

$24.24

22

PIPE, L. SLIDE

51520-MKE-A01

$376.37

23

FORK SUB-ASSY., L. FR. (COO)

51580-MKE-305

$1,467.56

24

PROTECTOR, R. FR. FORK

51610-MKE-A00

$67.41

25

PROTECTOR, L. FR. FORK

51620-MKE-A00

$67.41

26

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.97

27

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.62

28

BOLT, PROTECTOR

90113-MAC-780

$3.36

29

DUST SEAL

91254-KRN-A91

$11.67

30

O-RING (31.6X1.8)

91256-KRN-A91

$2.85

31

O-RING (22.1X1.9)

91257-KRN-A91

$2.32

32

O-RING (42.2X2.4)

91258-GF4-003

$5.64

33

O-RING (3.5X1.5)

91301-KZ3-711

$2.50

34

O-RING (35.5X2)

91302-MA3-661

$2.37

35

O-RING (47.2X2.4)

91351-KRN-A41

$3.61
