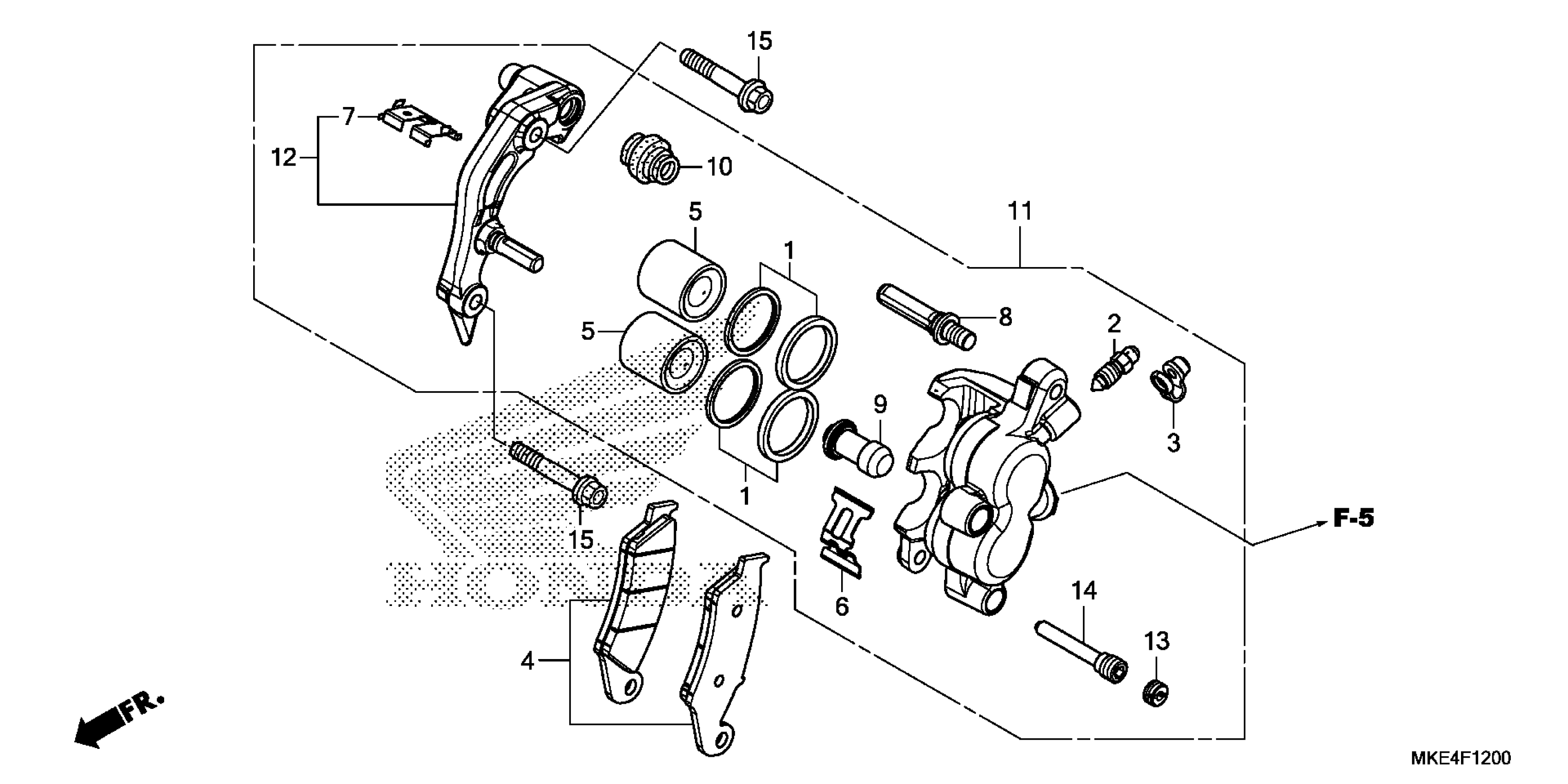

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.30

2

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

3

CAP, BLEEDER

43353-461-771

$5.03

4

PAD SET, FR.

45105-MY6-415

$43.71

5

PISTON

45107-KZ4-J31

$36.29

6

SPRING, PAD

45108-MY1-006

$10.32

7

RETAINER

45112-KS6-701

$6.05

8

BOLT A, BOLT

45131-HA5-672

$14.82

9

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.43

10

BOOT B

45133-MA3-006

$5.43

11

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MEN-006

$242.40

12

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MEN-006

$125.57

13

PLUG, PIN

45203-MG3-016

Unavailable

14

PIN, HANGER

45215-HA5-672

$10.21

15

BOLT, FLANGE (8X40)

90110-KZ4-J40

$2.92
