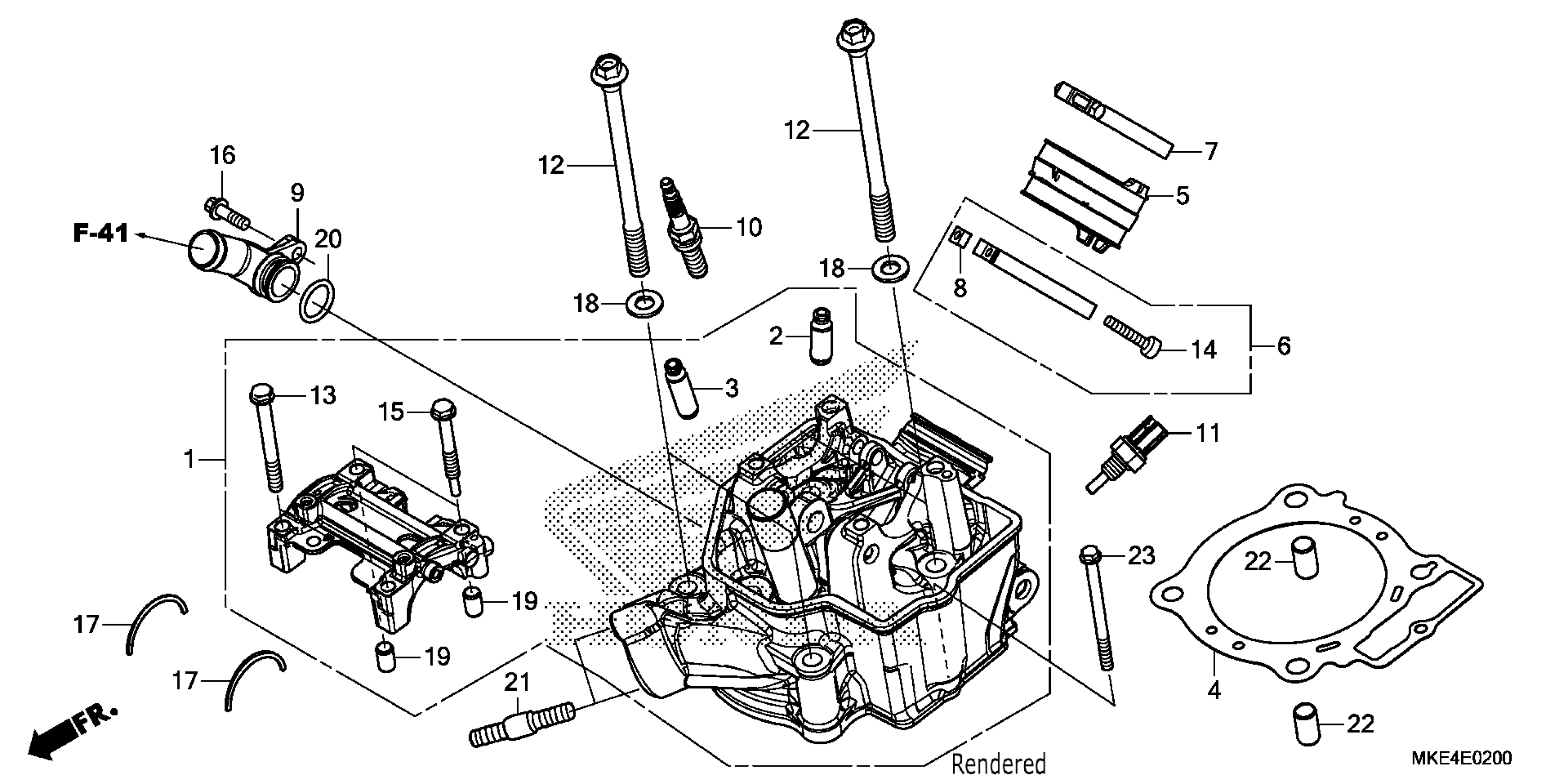

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 CYLINDER HEAD Diagram

Description

Price

CYLINDER HEAD ASSY.

12010-MKE-A00

$701.86

GUIDE, VALVE (OVER SIZE)

12204-MKE-P00

$14.66

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$15.33

GASKET, CYLINDER HEAD

12251-MKE-A01

$41.42

INSULATOR, THROTTLE BODY

16211-MKE-A00

$15.83

BAND A, INSULATOR

16217-MCJ-000

$8.97

BAND, INSULATOR

16218-MEN-A50

$6.86

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.08

JOINT, WATER

19501-MKE-A00

$22.48

SPARK PLUG (SILMAR9A9S) (NGK)

31909-MEN-A31

$17.52

SPARK PLUG (SILMAR10A9S) (NGK) | (Optional).

31910-MEN-A31

$17.52

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$47.64

BOLT, FLANGE (10X143)

90001-MKE-A00

$9.12

BOLT, FLANGE (7X65)

90003-MKE-A00

$2.97

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.46

BOLT, SPECIAL (7X45)

90005-MKE-A00

$2.97

BOLT, FLANGE (6X20) (SH)

90022-MKE-A00

$2.25

WASHER, CAMSHAFT THRUST

90446-KRN-670

$2.55

WASHER, PLAIN (10MM)

90453-MKE-A00

$2.74

PIN, DOWEL (9X14)

90701-MR7-000

$4.28

O-RING (19X3) (NOK)

91312-KE7-003

$2.52

BOLT, STUD (8X22)

92900-08022-0B

$2.83

PIN A, DOWEL (12X20)

94301-12200

$2.92

BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)

96001-06080-00

$2.14
