Partiron

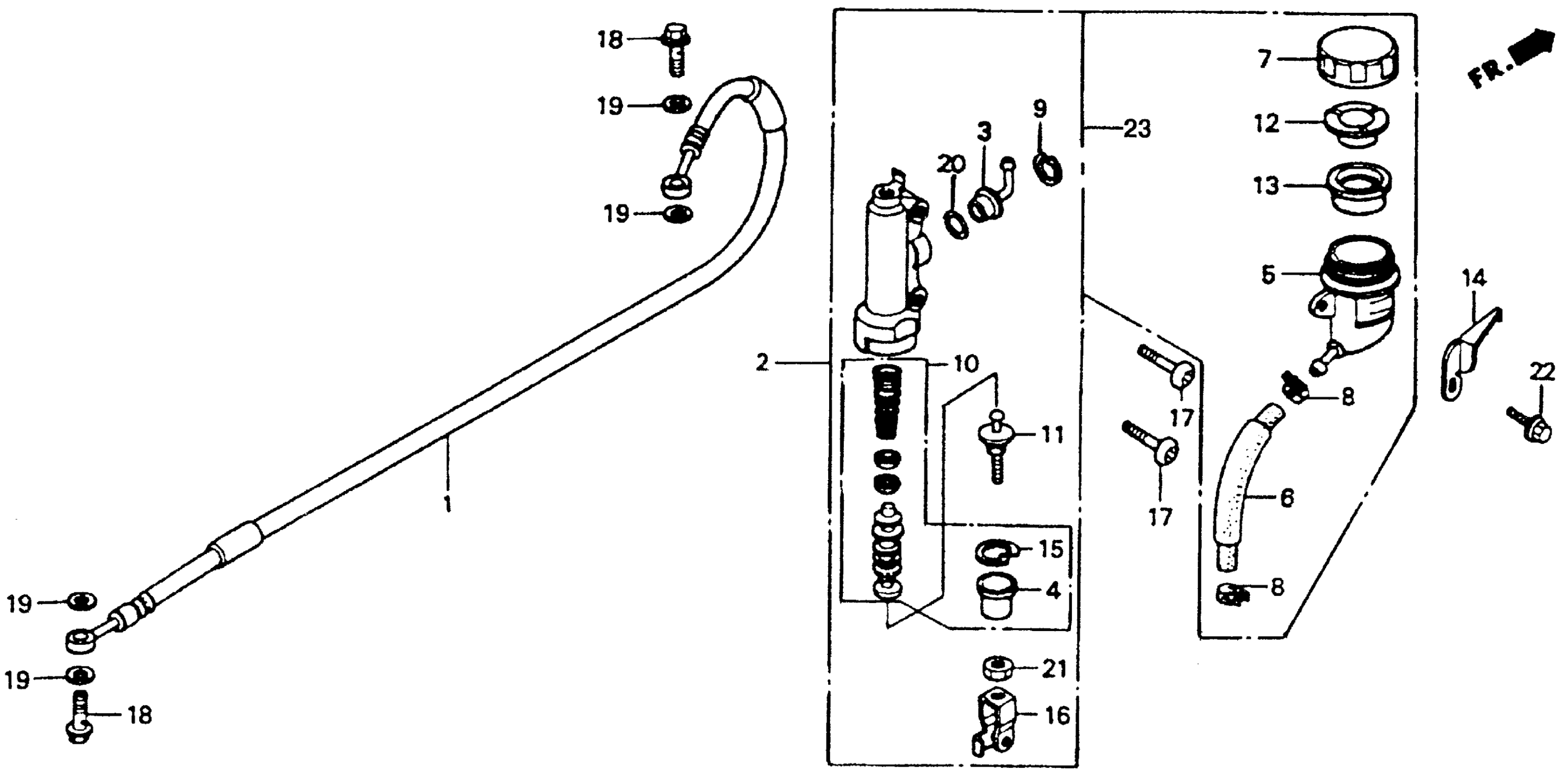

Honda CR80RA (94) MOTORCYCLE, JPN, VIN# JH2HE040-RK100001 TO JH2HE040-RK101555 RR. BRAKE MASTER CYL. 92-95 Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43125-GS2-601

Unavailable

2

MASTER CYLINDER ASSY., RR. BRAKE

43500-GS2-601

Unavailable

3

CONNECTOR

43503-KS6-701

$9.56

4

BOOT

43504-MB2-006

$9.63

5

CUP, MASTER CYLINDER OIL

43511-KS6-702

$24.85

6

HOSE, MASTER CYLINDER

43512-GS2-601

Unavailable

7

CAP, MASTER CYLINDER

43513-KS6-701

$13.98

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.58

9

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.80

10

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$43.39

11

ROD, PUSH (NISSIN)

43530-KS7-831

$26.09

12

PLATE, DIAPHRAGM

45518-GM9-711

$4.46

13

DIAPHRAGM

45520-GM9-711

$8.78

14

HOLDER, MASTER CYLINDER

45535-KW3-000

$14.23

15

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.98

16

JOINT, BRAKE ROD

46504-KV6-702

$7.80

17

BOLT, RR. MASTER CYLINDER

90109-KZ9-000

$3.90

18

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.29

18

BOLT, OIL (10X22)

90145-MS9-612

$7.29

19

WASHER, OIL BOLT

90545-300-000

$6.06

20

O-RING (14.8X2.4)

91212-422-006

$2.48

21

NUT, HEX. (8MM)

94002-08000-0S

$1.37

22

BOLT, FLANGE (6X16)

96001-06016-00

$1.02
