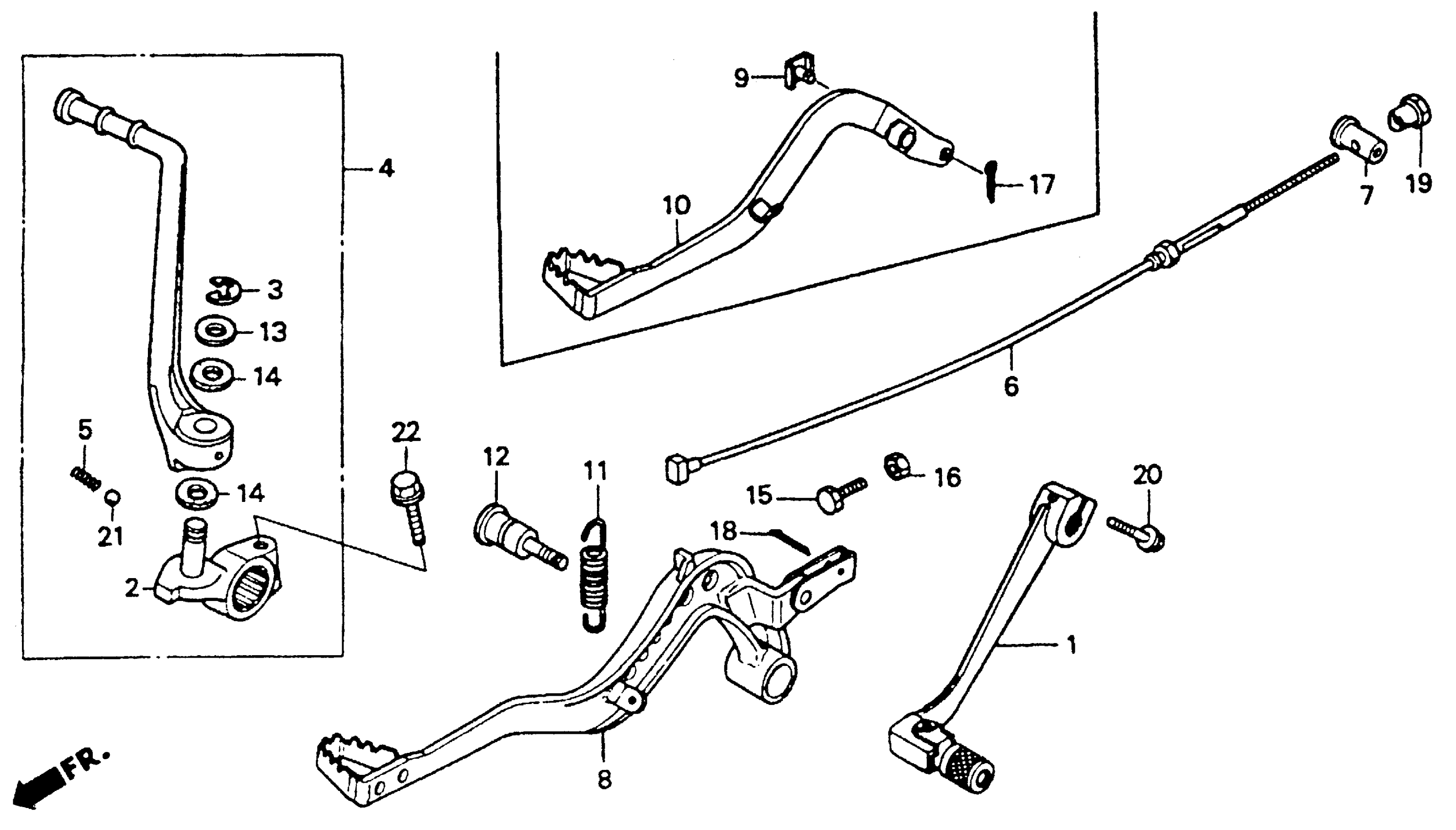

Honda CR80RA (94) MOTORCYCLE, JPN, VIN# JH2HE040-RK100001 TO JH2HE040-RK101555 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24700-GM7-700

Unavailable

3

CLIP, KICK STARTER ARM

28293-333-000

$2.58

4

ARM ASSY., KICK STARTER

28300-GS2-600

Unavailable

5

SPRING, KICK STARTER STOPPER

28333-124-000

Unavailable

9

PIN D, JOINT This part replaces 46503-KW3-000.

95015-54000

$4.22

9

PIN D, JOINT

95015-54000

$4.22

10

PEDAL, BRAKE

46510-GS2-600

Unavailable

11

SPRING, BRAKE PEDAL This part replaces 46511-GC4-830.

46511-MV9-000

$9.60

11

SPRING, BRAKE PEDAL

46511-MV9-000

$9.60

12

SHAFT, BRAKE PIVOT

46513-GS2-600

Unavailable

13

WASHER, SPECIAL

90451-168-000

Unavailable

14

DUST SEAL (13X19)

91303-GC4-831

Unavailable

17

PIN, COTTER (2.0X12)

94201-20120

$1.09

20

BOLT, FLANGE (6X20)

96001-06020-00

$1.20

21

BALL, STEEL (#8) (1/4)

96211-08000

$1.42

22

BOLT, FLANGE (6X22)

90112-KJ2-000

Unavailable
