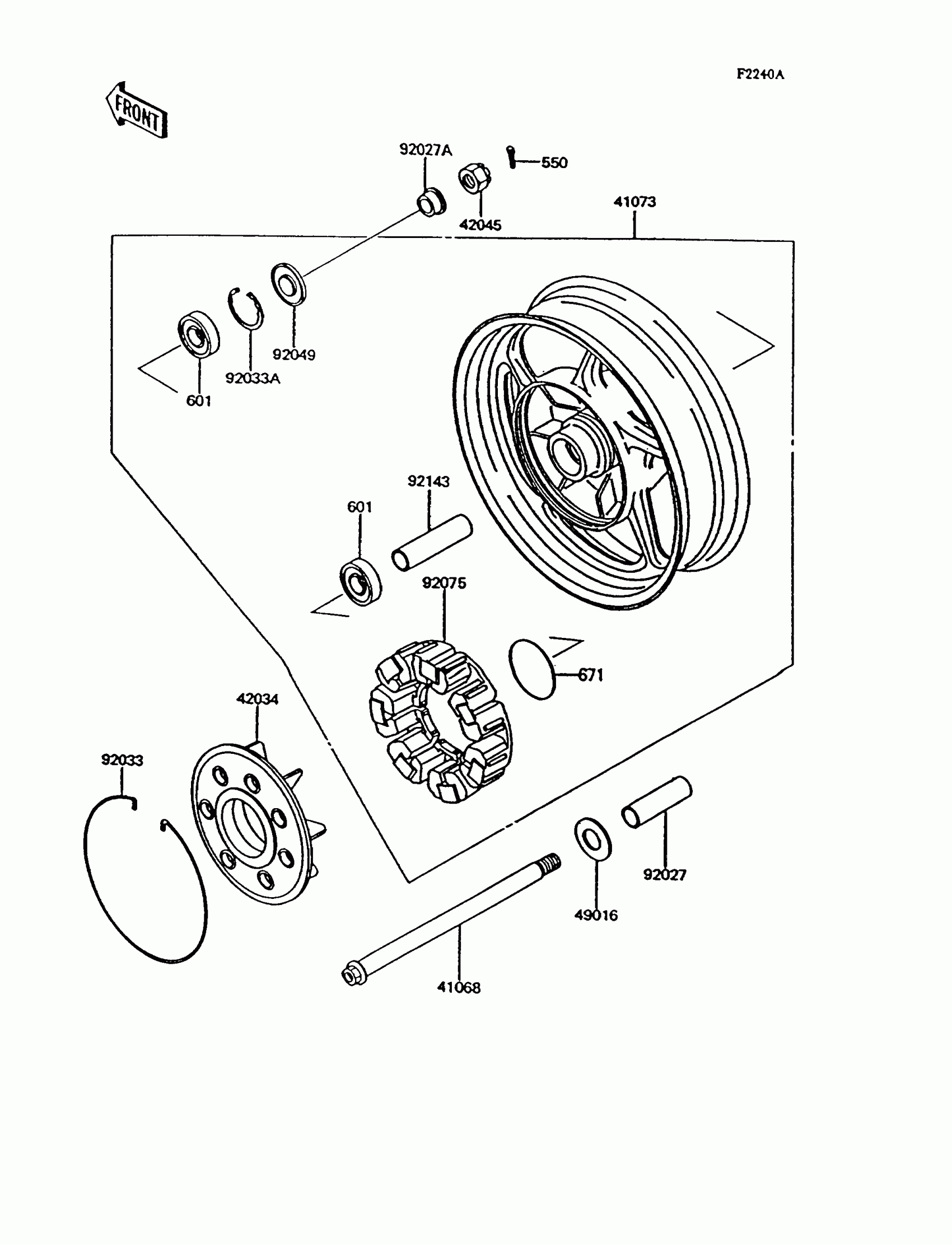

Kawasaki Concours Rear Wheel/Chain(ZG1000-A9) Diagram

Description

Price

41068

AXLE,RR

41068-1197

$120.19

41073

WHEEL-ASSY,RR,G.GRAY

41073-1549-GE

$1,178.27

42034

COUPLING,RR HUB

42034-1011

$283.07

42045

NUT,CASTLE,18MM

42045-018

$7.31

49016

COVER-SEAL

49016-1019

$8.53

92027

COLLAR,20.2X28X89

92027-1553

$30.75

92027A

COLLAR,RR AXLE,L=20

92027-1792

$34.31

92033

RING-SNAP

92033-1019

$15.64

92033A

RING-SNAP,52MM

92033-1043

$6.41

92049

SEAL-OIL,28X52X5

92049-1061

$18.58

92075

DAMPER,SHOCK,RR HUB

92075-1121

$144.96

92143

COLLAR,20.2X28X105.5

92143-1048

$40.28

550

PIN-COTTER,4.0X35

550D4035

$1.81

601

BEARING-BALL,#6304UUC3

601B6304UU

$31.60

671

O RING,80MM

671B2580

$5.45
