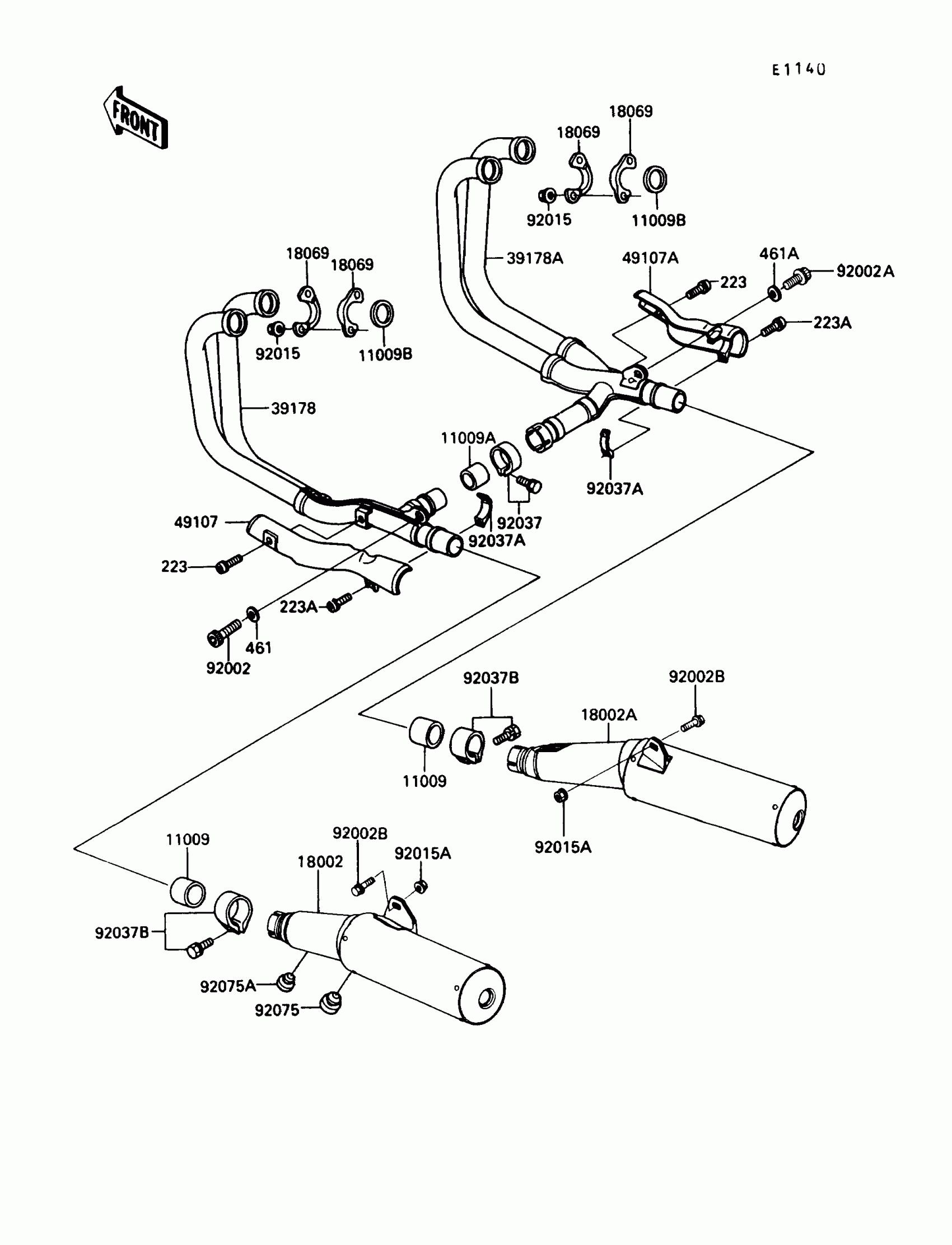

Kawasaki Concours Muffler Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$29.03

11009A

GASKET,EXHAUST MANIFOLD

11009-1668

$27.88

11009B

GASKET,EXHAUST PIPE H

11009-1840

$6.23

18002

BODY-COMP-MUFFLER,LH

18002-1756

$829.69

18002A

BODY-COMP-MUFFLER,RH

18002-1757

$829.69

18069

HOLDER-EXHAUST PIPE

18069-1054

Unavailable

39178

MANIFOLD-COMP-EXHAUST,LH

39178-1105

$548.72

39178A

MANIFOLD-COMP-EXHAUST,RH

39178-1106

$548.72

49107

COVER-EXHAUST PIPE,LH

49107-1053

Unavailable

49107A

COVER-EXHAUST PIPE,RH

49107-1058

Unavailable

92002

BOLT,SOCKET,8X20

92002-1477

$7.72

92002A

BOLT,SOCKET,10X25

92002-1683

$9.56

92002B

BOLT,10X30

92002-1817

$7.15

92015

NUT,LOCK,8MM

92015-1380

$3.32

92015A

NUT,FLANGED,10MM

92015-1387

$3.29

92037

CLAMP,MUFFLER,BLACK

92037-1270

$19.49

92037A

CLAMP,EXHAUST PIPE COVER

92037-1506

Unavailable

92037B

CLAMP,POWER CHAMBER

92037-1537

$19.14

92075

DAMPER

92075-1002

$5.42

92075A

DAMPER,9X24X14

92075-281

$4.67

223

SCREW-PAN-WS-CROS,6X12

223C0612

Unavailable

223A

SCREW-PAN-WS-CROS,6X20

223C0620

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER-SPRING,10MM,BLACK

461K1000

Unavailable
