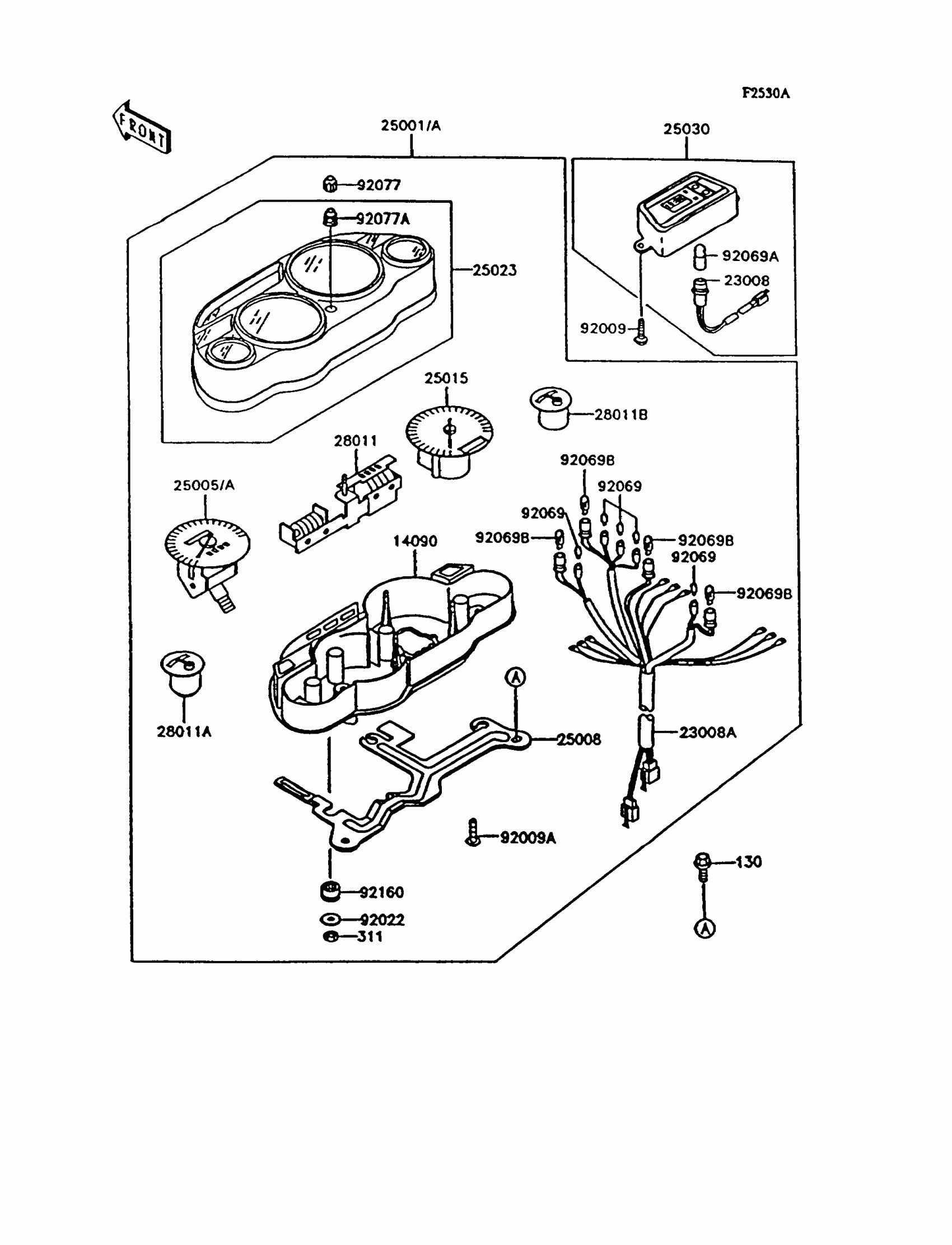

Kawasaki Concours Meter(s)(ZG1000-A9) Diagram

#

Description
Price

14090

COVER,METER HOUSING

14090-1286

Unavailable

23008

SOCKET-ASSY,DEGITAL CLOCK

23008-1529

$35.86

23008A

SOCKET-ASSY,METER

23008-1534

$143.28

25001

METER-ASSY,MPH

25001-1961

$1,172.68

25001A

METER-ASSY,KPH

25001-1962

Unavailable

25005

SPEEDOMETER,MPH

25005-1557

$305.17

25005A

SPEEDOMETER,KPH

25005-1558

Unavailable

25008

BRACKET-METER

25008-1199

$86.76

25015

TACHOMETER,X1000R/MIN

25015-1329

$406.06

25023

COVER-METER CASE,UPP

25023-1201

$176.14

25030

CLOCK,DEGITAL

25030-1002

$656.06

28011

METER,TRIP

28011-1130

$128.17

28011A

METER,FUEL

28011-1145

$87.84

28011B

METER,TEMP

28011-1146

$100.55

92009

SCREW,TAPPING,4X16

92009-1163

$3.26

92009A

SCREW,TAPPING,4X14

92009-1503

$3.20

92022

WASHER,6.2X18X1.2

92022-1369

$3.56

92069

BULB,12V 3.4W,T10

92069-1007

$3.97

92069A

BULB,12V 3W,T7

92069-1020

Unavailable

92069B

BULB,12V 1.7W,T10

92069-1059

$3.94

92077

KNOB,TRIP RESET

92077-1094

$8.80

92077A

KNOB,TRIP RESET

92077-1112

$8.88

92160

DAMPER

92160-1461

$7.39

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

311

NUT 6MM

311B0600

Unavailable
