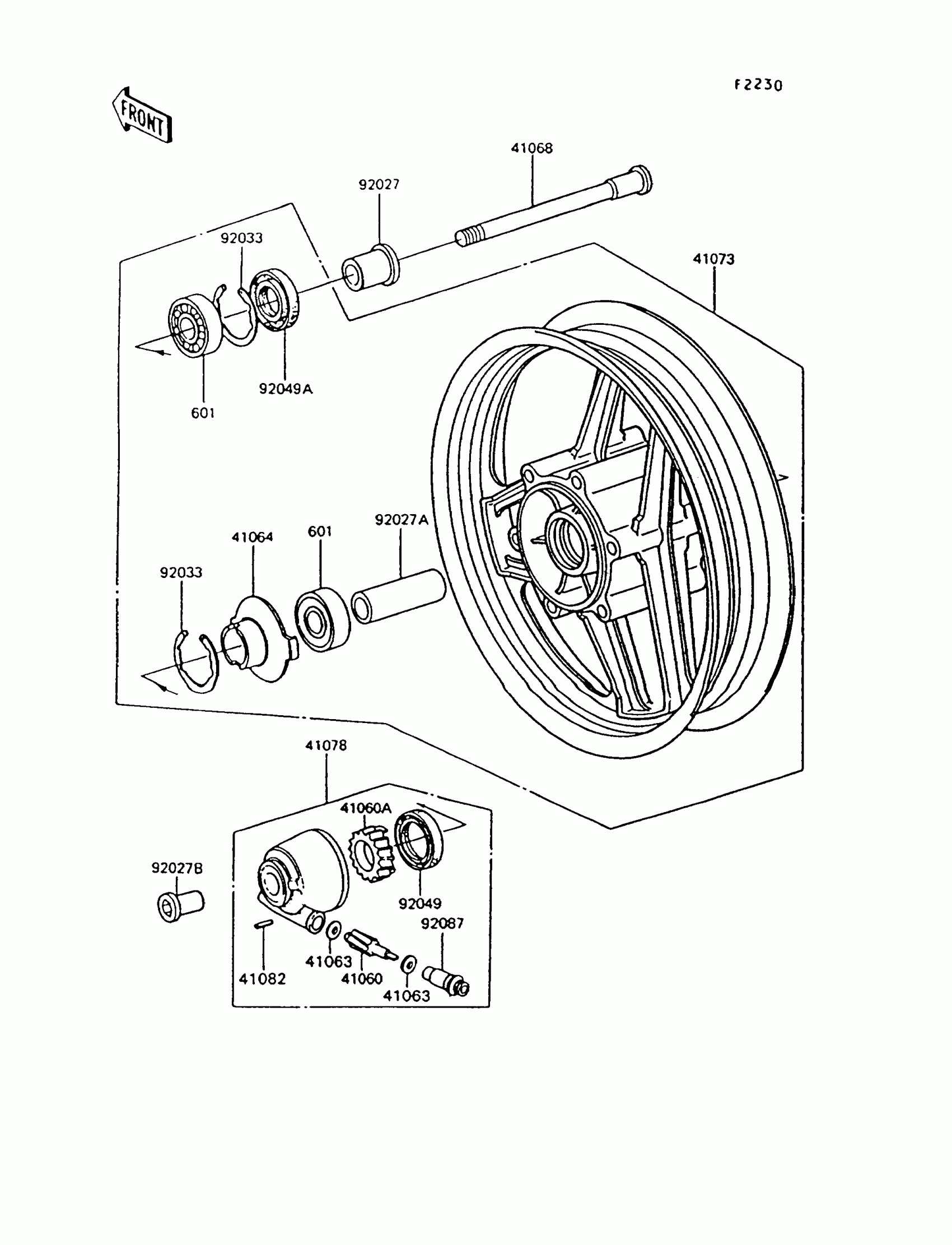

Kawasaki Concours Front Wheel(ZG1000-A7/A8) Diagram

Description

Price

41060

GEAR-METER SCREW,9T

41060-1016

Unavailable

41060A

GEAR-METER SCREW,25T

41060-1041

$19.10

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.81

41068

AXLE,FR

41068-1164

Unavailable

41073

WHEEL-ASSY,FR,SILVER NO.1

41073-1423-CX

$1,024.74

41078

CASE-ASSY-METER GEAR

41078-1061

$151.51

41082

PIN,SPRING

41082-001

$3.53

92027

COLLAR,L=30

92027-1225

$16.49

92027A

COLLAR,L=71

92027-1725

$13.39

92027B

COLLAR,FR AXLE,L=36.5

92027-1726

$26.31

92033

RING-SNAP,42MM

92033-1041

$4.88

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.38

92049A

SEAL-OIL,BJN22425

92049-1058

$7.72

92087

BUSHING-METER GEAR

92087-1002

$22.34

601

BEARING-BALL,#6302UG

601B6302UG

$38.63
