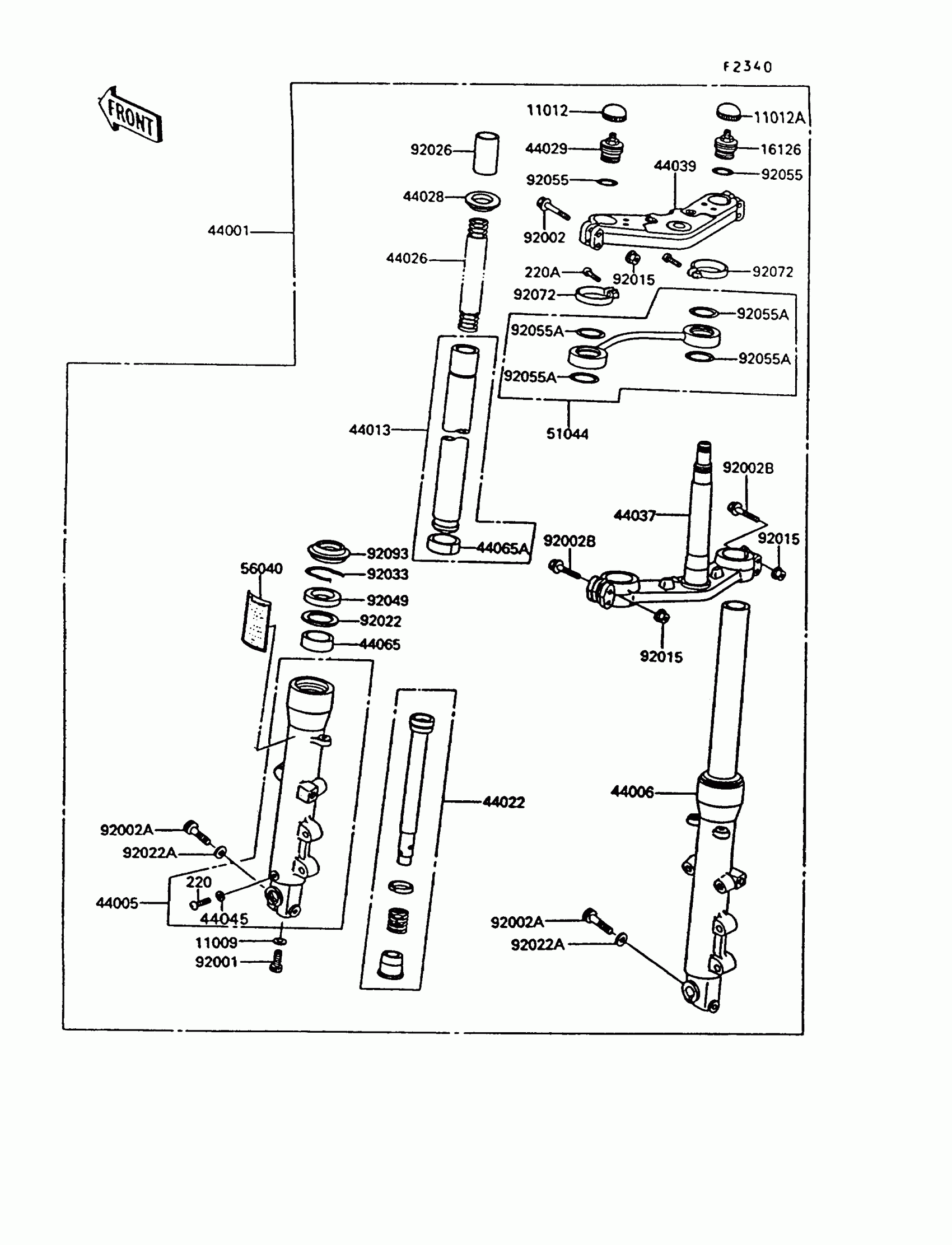

Kawasaki Concours Front Fork(ZG1000-A7/A8) Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$4.12

11012

CAP,FORK TOP

11012-1500

Unavailable

11012A

CAP,FORK TOP

11012-1501

Unavailable

16126

VALVE

16126-1150

Unavailable

44001

FORK-FRONT

44001-1623

$2,233.61

44005

PIPE-LEFT FORK OUTER

44005-1251

$438.31

44006

PIPE-RIGHT FORK OUTER

44006-1250

$501.60

44013

PIPE-FORK INNER

44013-1254

Unavailable

44022

CYLINDER-FORK

44022-1197

Unavailable

44026

SPRING-FRONT FORK

44026-1340

$84.46

44028

GUIDE-FORK SPRING

44028-1059

Unavailable

44029

SEAT-FORK SPRING

44029-1122

$59.26

44037

HOLDER-FORK UNDER

44037-1198

Unavailable

44039

HOLDER-FORK UPPER

44039-1135

$322.77

44045

GASKET,FORK DRAIN PLUG

44045-002

$4.12

44065

BUSHING-FRONT FORK

44065-1064

$34.45

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1081

Unavailable

51044

TUBE-ASSY,FORK,AIR

51044-1083

$149.01

56040

LABEL-WARNING,AIR SUSPENSION

56040-1117

Unavailable

92001

BOLT,FORK CYLINDER

92001-1309

$6.06

92002

BOLT,FLANGED,8X55

92002-1158

$7.33

92002A

BOLT,SOCKET,8X45

92002-1847

$4.56

92002B

BOLT,FLANGED,8X50

92002-1848

Unavailable

92015

NUT,FLANGED,8MM

92015-1408

$4.27

92022

WASHER,FORK OUTER TUBE

92022-1298

$6.82

92022A

WASHER

92022-1598

$8.20

92026

SPACER,FORK SPRING

92026-1277

Unavailable

92033

RING-SNAP

92033-1036

$5.15

92049

SEAL-OIL,FORK OUTER

92049-1273

$15.21

92055

RING-O,FORK TOP

92055-1052

Unavailable

92055A

RING-O,FORK AIR TUBE

92055-1106

Unavailable

92072

BAND

92072-1157

Unavailable

92093

SEAL,FORK OUTER TUBE

92093-1232

$20.09

220

SCREW-PAN-CROS,4X8

220E0408

Unavailable

220A

SCREW-PAN-CROS

220E0412

Unavailable
