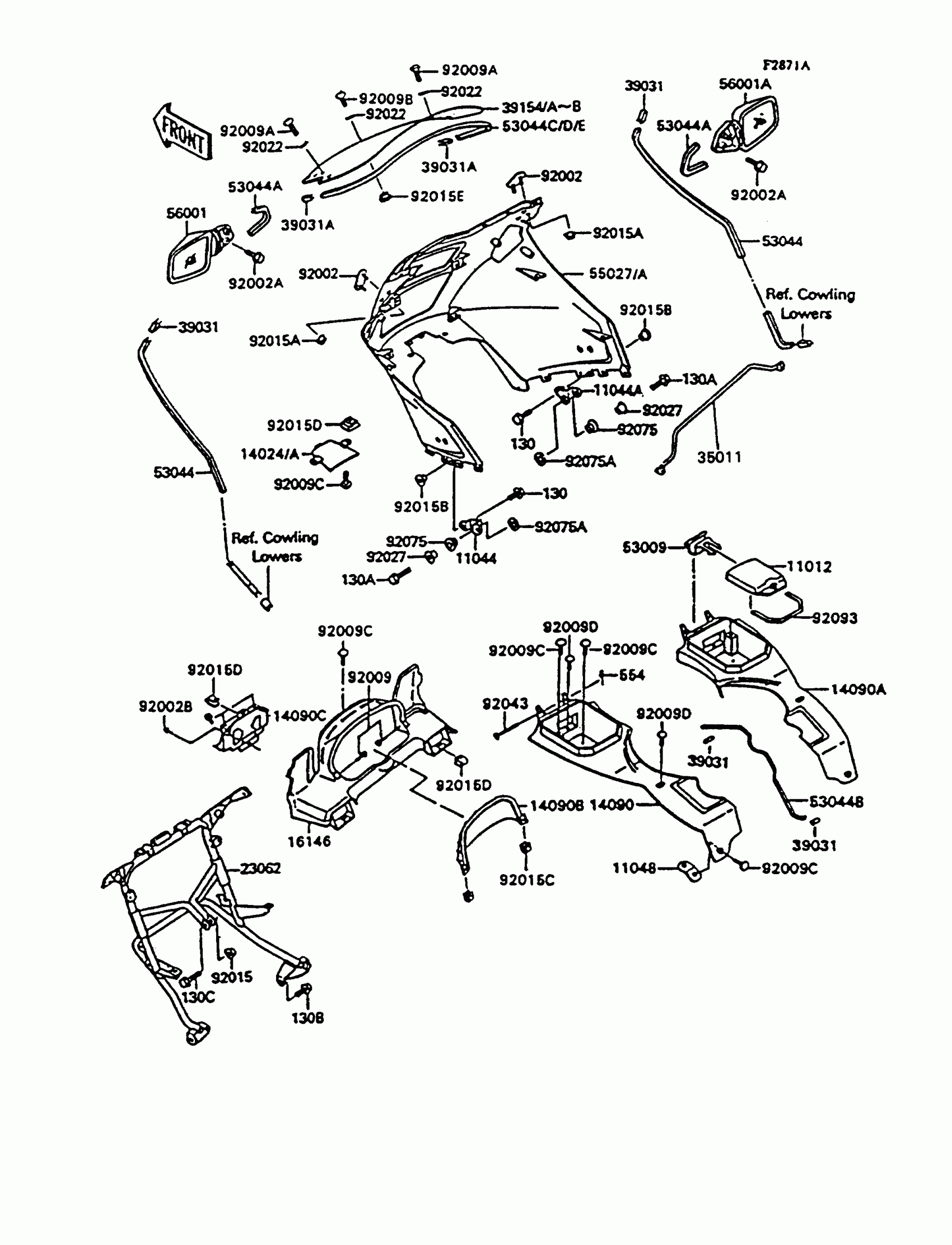

Kawasaki Concours Cowling(ZG1000-A9) Diagram

#

Description
Price

11012

CAP,INNER COWLING COVER

11012-1878

$66.18

11044

BRACKET,UPPER COWLING,LWR,LH

11044-1907

$10.24

11044A

BRACKET,UPPER COWLING,LWR,RH

11044-1908

$10.24

11048

BRACKET,INNER COWLING,FR

11048-1490

Unavailable

14024

COVER,UPPER COWLING,LWR,RED

14024-1252-P5

Unavailable

14024A

COVER,UPPER COWLING,LWR,RED

14024-1252-2T

Unavailable

14090

COVER,INNER COWLING,LH

14090-1424

$130.18

14090A

COVER,INNER COWLING,RH

14090-1425

$130.18

14090B

COVER,METER VISER

14090-1456

$115.69

14090C

COVER,INNER COWLING,CNT

14090-1481

$115.69

16146

COVER-ASSY,INNER COWLING,FR

16146-1158

$165.58

23062

BRACKET-COMP,UPP COWLING

23062-1100

$386.69

35011

STAY,SIDE COWLING

35011-1340

$96.32

39031

CAP-END,TRIM

39031-1055

Unavailable

39031A

CAP-END,TRIM

39031-1063

$3.53

39154

WINDSHIELD,SHORT TYPE

39154-1094

$621.21

39154A

WINDSHIELD,LONG TYPE

39154-1095

$614.73

39154B

WINDSHIELD,SUPER LONG TYPE

39154-1096

Unavailable

53009

HINGE,INNER COVER

53009-1086

$11.68

53044

TRIM,COWLING

53044-1157

$30.28

53044A

TRIM,MIRROR

53044-1173

$8.80

53044B

TRIM,INNER COWLING

53044-1184

$25.68

53044C

TRIM,WINDSHIELD,SHORT TYPE

53044-1272

$30.37

53044D

TRIM,WINDSHIELD,LONG TYPE

53044-1273

$34.76

53044E

TRIM,WINDSHIELD,SUPER LONG TYP

53044-1274

$36.85

55027

COWLING-ASSY,UPP,OUTER,L.V.RED

55027-1083-P5

Unavailable

55027A

COWLING-ASSY,UPP,OUTER,RED/BLK

55027-1083-3K

Unavailable

56001

MIRROR-ASSY,LH

56001-1333

$167.07

56001A

MIRROR-ASSY,RH

56001-1334

$167.07

92002

BOLT,"U"

92002-1800

$10.24

92002A

BOLT,6X16

92002-1852

$3.92

92002B

BOLT,UPSET-WP,6X12

92002-1884

$3.68

92009

SCREW,4X16

92009-1500

$3.92

92009A

SCREW,5X16,BLACK

92009-1654

$2.51

92009B

SCREW,5X20,BLACK

92009-1656

$3.16

92009C

SCREW,6X14

92009-1662

$3.12

92009D

SCREW,6X18

92009-1663

Unavailable

92015

NUT,FLANGED,8MM,BLACK

92015-1183

$4.27

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015B

NUT,STAY,6MM

92015-1394

$3.80

92015C

NUT,4MM

92015-1593

$7.49

92015D

NUT,6MM

92015-1602

$5.84

92015E

NUT,WELL,5MM

92015-1757

$5.81

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.93

92043

PIN,4X70

92043-1501

$5.47

92075

RUBBER,FENDER COVER

92075-174

$3.80

92075A

DAMPER,FEMALE

92075-175

$3.49

92093

SEAL,INNER COWLING CAP

92093-1368

$8.88

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

130B

BOLT-FLANGED,8X12

130J0812

Unavailable

130C

BOLT-FLANGED,8X30

130J0830

Unavailable

554

PIN-SNAP

554A0400

Unavailable
