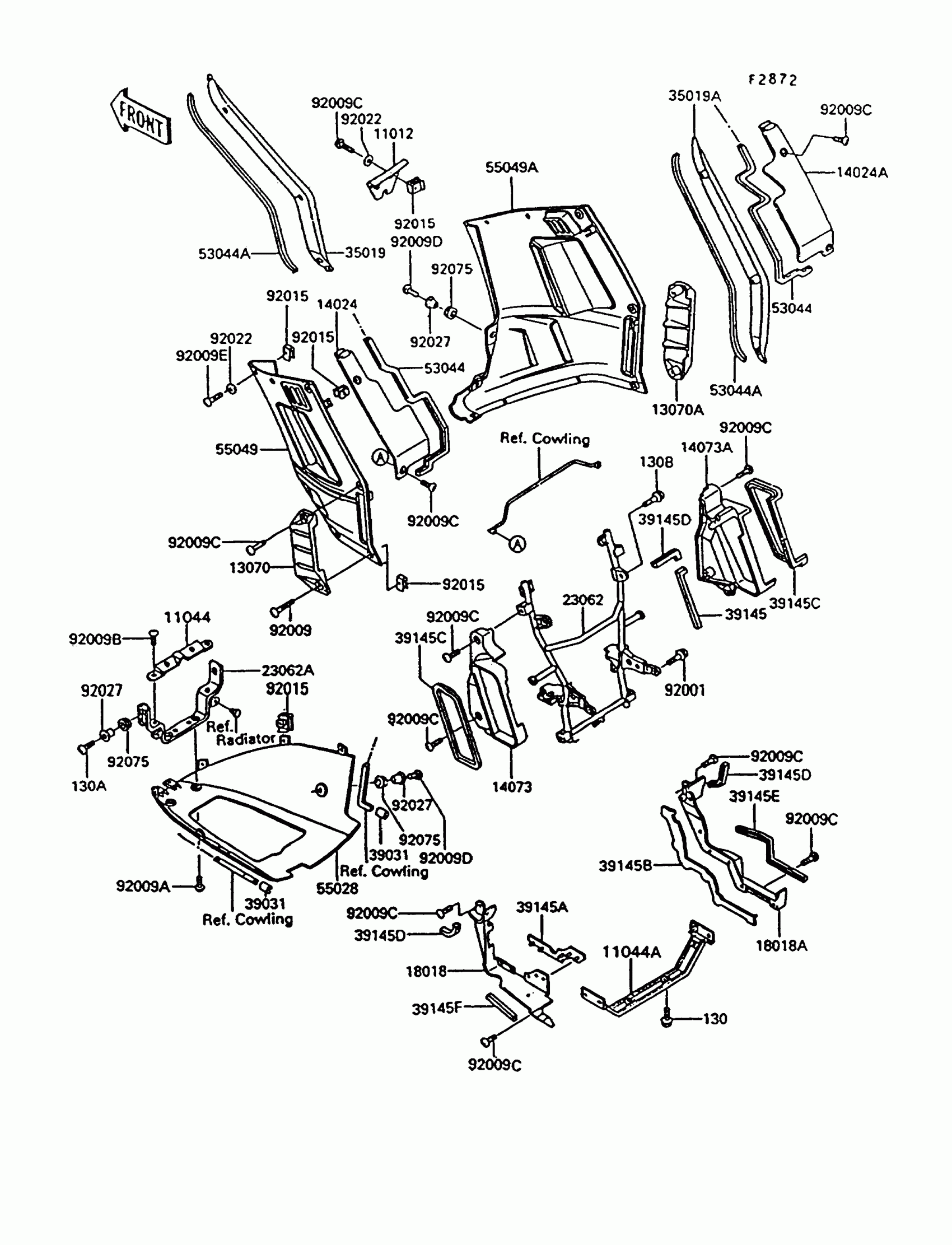

Kawasaki Concours Cowling Lowers(ZG1000-A7/A8) Diagram

CAP,RESERVOIR INSPECTION,EBONY

11012-1534-H8

Unavailable

BRACKET,RESERVOIR TANK,UPP

11044-1919

$14.00

BRACKET,LOWER COWLING,RR

11044-1920

$40.69

GUIDE,SIDE COWLING,LH

13070-1171

Unavailable

GUIDE,SIDE COWLING,RH

13070-1172

Unavailable

COVER,INNER COWLING,SIDE,LH

14024-1460

Unavailable

COVER,INNER COWLING,SIDE,RH

14024-1461

Unavailable

DUCT,RADIATOR,RR,LH

14073-1276

$137.89

DUCT,RADIATOR,RR,RH

14073-1284

$137.89

PLATE-HEAT GUARD,SIDE,LH

18018-1068

$108.98

PLATE-HEAT GUARD,SIDE,RH

18018-1069

$123.74

BRACKET-COMP,RADIATOR

23062-1064

$286.31

BRACKET-COMP,LOWER COWLING,FR

23062-1065

$38.93

FLAP,SIDE COWLING,LH

35019-1193

$69.32

FLAP,SIDE COWLING,RH

35019-1194

$69.32

CAP-END,TRIM

39031-1055

Unavailable

TRIM-SEAL,SIDE COWLING

39145-1056

$14.56

TRIM-SEAL,HEAT GUARD PLATE,LH

39145-1076

$23.36

TRIM-SEAL,HEAT GUARD PLATE,RH

39145-1077

$46.11

TRIM-SEAL,DUCT

39145-1078

$39.96

TRIM-SEAL,HEAT GUARD

39145-1079

$8.80

TRIM-SEAL,HEAT GUARD,RH

39145-1080

$22.63

TRIM-SEAL,HEAT GUARD,LH

39145-1084

$20.73

TRIM,INNER COWLING

53044-1184

$25.68

TRIM,INNER COWLING

53044-1184

$25.68

COWLING,LWR,EBONY

55028-1124-H8

$477.05

COWLING.,SIDE,LH,EBONY

55049-5098-H8

$628.21

COWLING.,SIDE,RH,EBONY

55049-5099-H8

$709.11

BOLT,FLANGED,10X41,BLACK

92001-1844

$8.05

SCREW,6X28,BLACK

92009-1400

$4.18

SCREW,6X10

92009-1402

$1.73

SCREW,5X10

92009-1651

$3.92

SCREW,6X14

92009-1662

$2.99

SCREW,6X18

92009-1663

Unavailable

SCREW

92009-1664

$3.43

NUT,6MM

92015-1602

$5.61

WASHER,6X16X1

92022-1818

$2.25

COLLAR,L=9.1,BLACK

92027-1935

$4.83

DAMPER

92075-1634

$3.57

BOLT-FLANGED,6X10

130B0610

Unavailable

BOLT-FLANGED,6X18

130C0618

Unavailable

BOLT-FLANGED,8X12

130J0812

Unavailable
