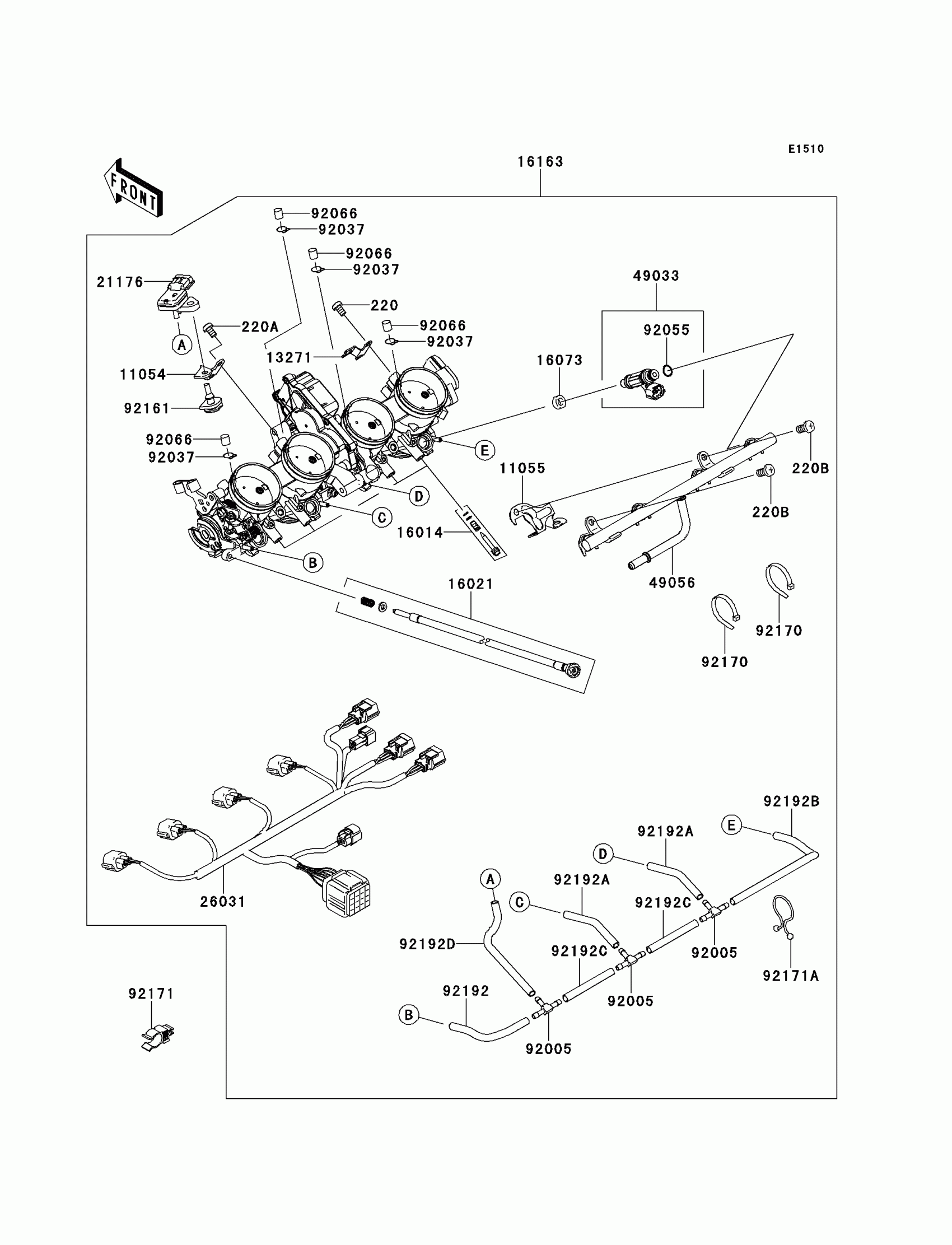

Kawasaki Concours™ 14 Throttle Diagram

#

Description
Price

220

SCREW-PAN-CROS,5X6

220AA0506

$1.86

220A

SCREW-PAN-CROS,5X8

220AA0508

$0.47

220B

SCREW-PAN-CROS,6X12

220AA0612

$0.95

11054

BRACKET

11054-0556

$20.88

11055

BRACKET

11055-0395

$33.98

13271

PLATE

13271-0792

$12.95

16014

SCREW-PILOT AIR

16014-0005

$31.36

16021

SCREW-THROTTLE STOP

16021-0007

$120.75

16073

INSULATOR,INJECTER

16073-1123

$7.41

16163

THROTTLE-ASSY,40EIDW

16163-0093

$2,192.22

21176

SENSOR,PRESSURE

21176-0058

$126.04

26031

HARNESS

26031-0547

$194.93

49033

NOZZLE-INJECTION

49033-0011

$81.81

49056

PIPE-INJECTION

49056-0017

$216.16

92005

FITTING

92005-1380

$15.71

92037

CLAMP,BREATHER TUBE

92037-174

$1.42

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92066

PLUG,FITTING

92066-1549

$5.98

92161

DAMPER

92161-0041

$4.59

92170

CLAMP

92170-2044

$2.25

92171

CLAMP

92171-0687

$11.29

92171A

CLAMP

92171-1680

$4.31

92192

TUBE,3.2X7.4X115

92192-0131

$3.68

92192A

TUBE,3.2X7.4X60

92192-0576

$3.71

92192B

TUBE,3.2X7.4X175

92192-0577

$6.56

92192C

TUBE,3.2X7.4X50

92192-0578

$3.71

92192D

TUBE,3.2X7.4X160

92192-0579

$8.73
