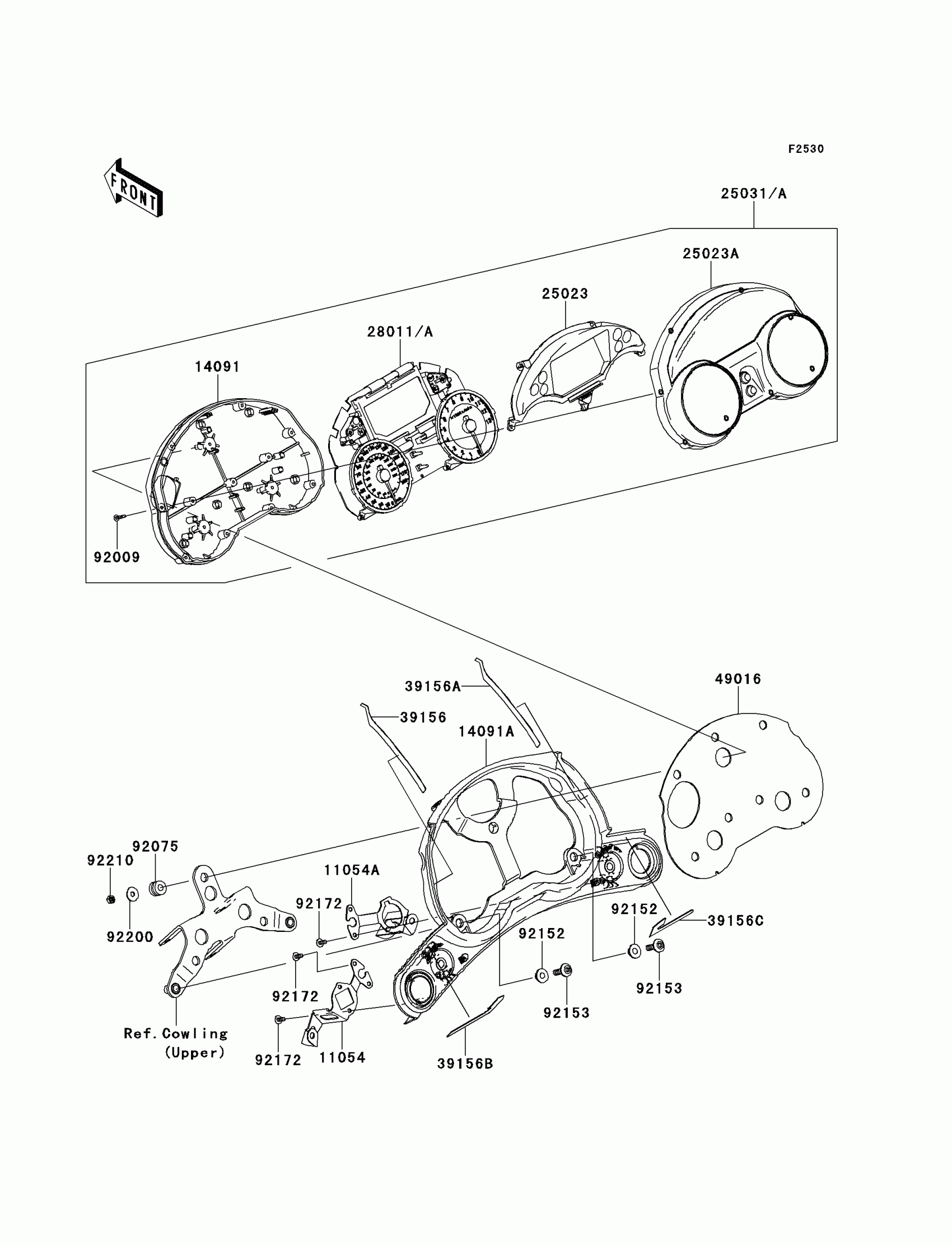

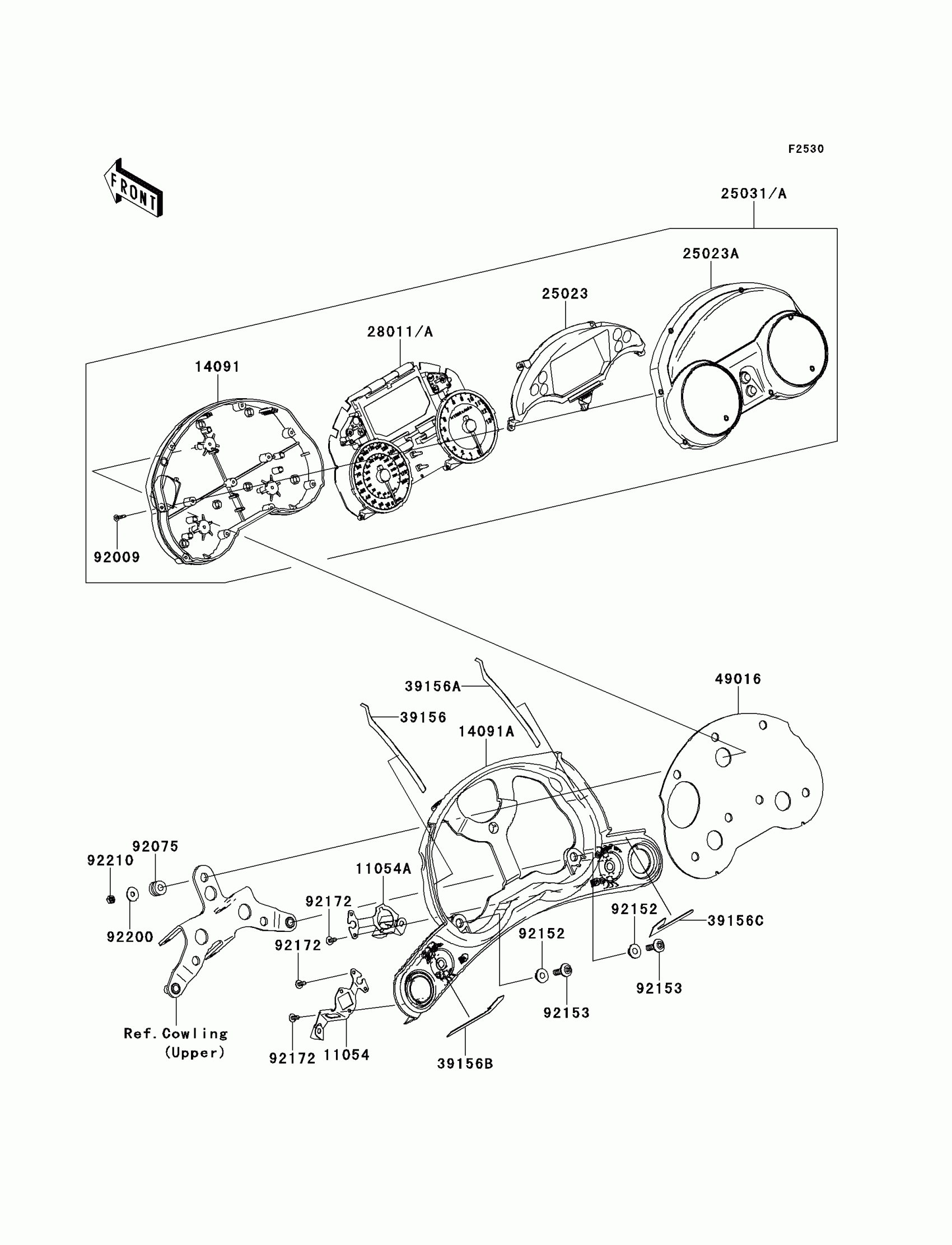

Kawasaki Concours™ 14 Meter(s) Diagram

#

Description
Price

11054

BRACKET,METER COVER,LH

11054-1786

$13.75

11054A

BRACKET,METER COVER,RH

11054-1787

$17.00

14091

COVER,METER,LWR

14091-0546

$136.14

14091A

COVER,METER

14091-0890

$77.39

25023

COVER-METER CASE,VISOR

25023-0021

$129.01

25023A

COVER-METER CASE,UPP

25023-0034

$142.65

39156

PAD,METER COVER,LH

39156-0374

$11.02

39156A

PAD,METER COVER,RH

39156-0375

$11.02

39156B

PAD,METER COVER,LH

39156-0376

$11.02

39156C

PAD,METER COVER,RH

39156-0377

$11.02

49016

COVER-SEAL,SPEEDOMETER

49016-0046

$5.54

92009

SCREW,TAPPING,3X16

92009-1164

$2.76

92075

DAMPER

92075-1435

$4.84

92152

COLLAR,6.5X10X5.6

92152-0445

$3.74

92153

BOLT,SOCKET,6X22

92153-0574

$1.85

92172

SCREW,TAPPING,4X10

92172-0172

$3.71

92200

WASHER

92200-0288

$1.20

92210

NUT,5MM

92210-0290

$1.04

25031

METER-ASSY,SPEED&TACHO&LCD

25031-0199

$1,468.80

25031A

METER-ASSY,SPEED&TACHO&LCD

25031-0200

Unavailable

28011

METER,SPEED&TACHO&LCD

28011-0080

$1,085.46

28011A

METER,SPEED&TACHO&LCD

28011-0081

Unavailable
