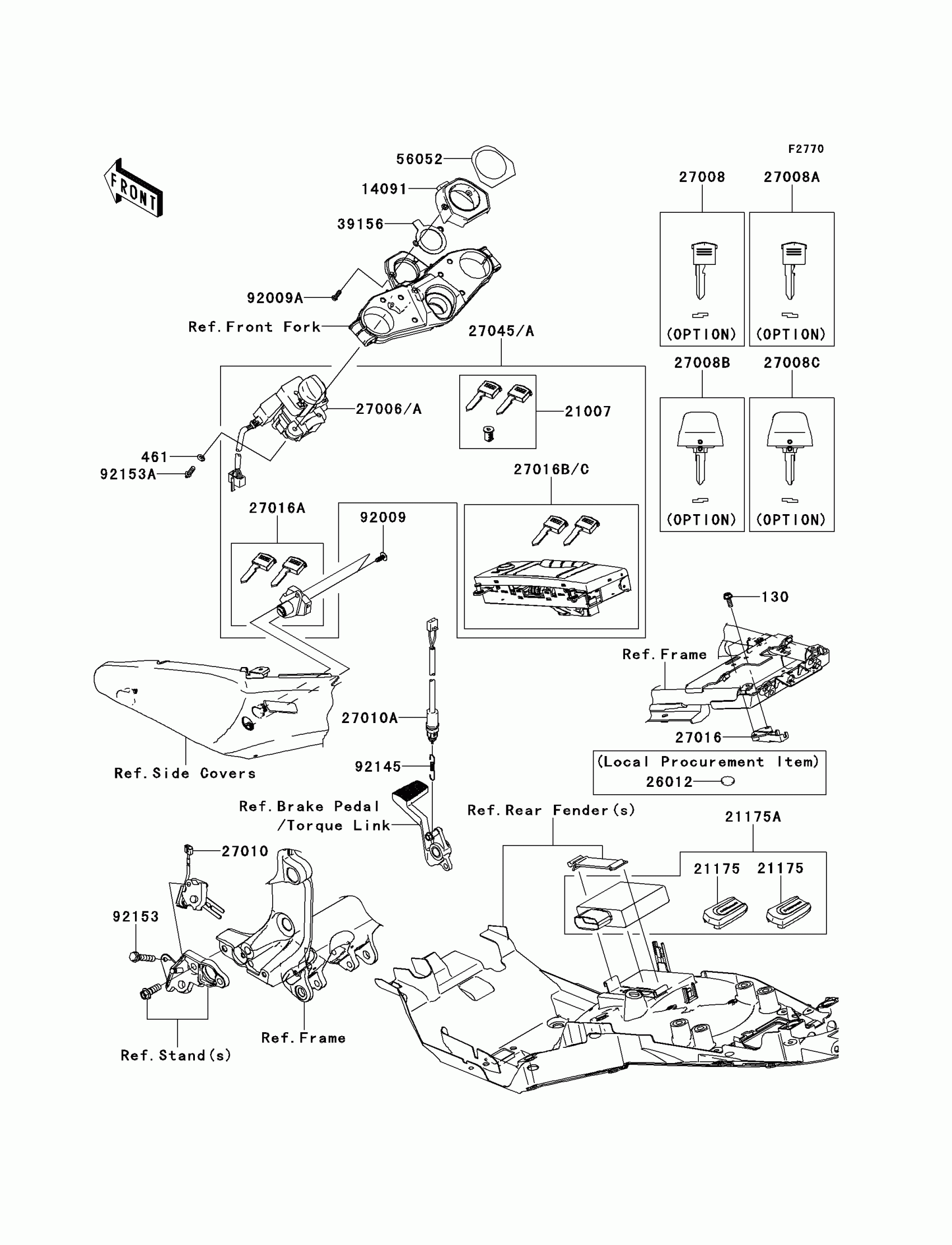

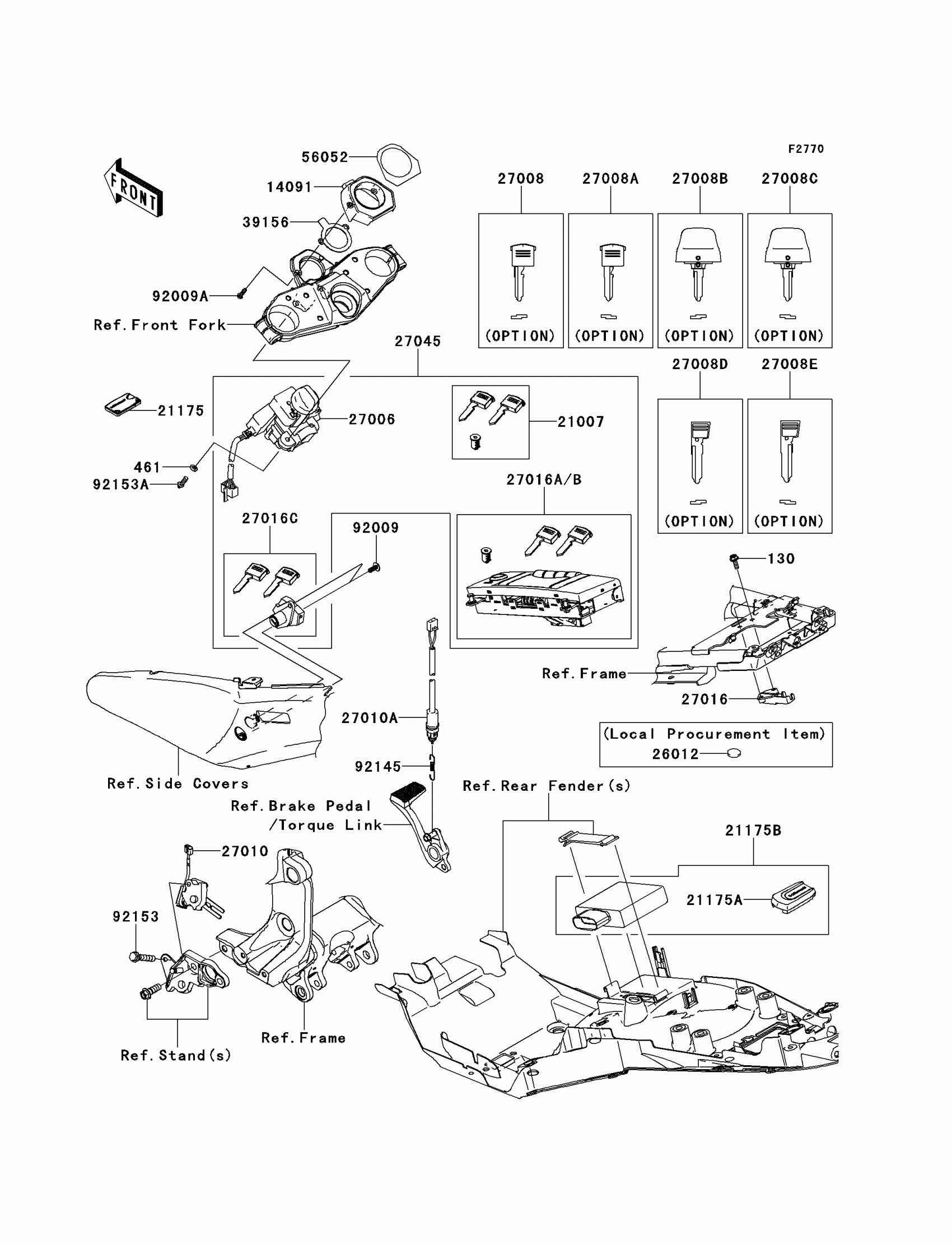

Kawasaki Concours™ 14 Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

461

WASHER-SPRING,6MM

461DA0600

$0.66

14091

COVER,KEY CYLINDER

14091-0659

$13.68

21007

ROTOR,LOCK TANK CAP

21007-5062

$130.81

21175

FOB KEY

21175-0181

Unavailable

21175A

CONTROL UNIT-ELECTRONIC

21175-0183

Unavailable

26012

Not Available As Spare Part - Friction Washer

Unavailable

27006A

SWITCH-IGNITION

27006-0060

$859.04

27008

KEY-LOCK,BLANK,#A

27008-0048

$21.88

27008A

KEY-LOCK,BLANK,#B

27008-0049

$21.88

27008B

KEY-LOCK,BLANK,#A,MAIN SWITCH

27008-0050

$25.88

27008C

KEY-LOCK,BLANK,#B,MAIN SWITCH

27008-0051

$25.88

27010

SWITCH,SIDE STAND

27010-0064

$137.18

27010A

SWITCH,REAR BRAKE

27010-1479

$26.58

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$29.14

27016A

LOCK-ASSY,SEAT

27016-5350

Unavailable

27016B

LOCK-ASSY,SIDE BAG,LH

27016-5355

$397.01

27016C

LOCK-ASSY,SIDE BAG,RH

27016-5356

$397.01

27045A

SWITCH-ASSY

27045-5395

$1,442.11

39156

PAD,KEY CYLINDER

39156-0319

$5.03

56052

MARK,IGNITION SWITCH

56052-1946

$39.98

92009

SCREW,TAPPING

92009-1113

$2.99

92009A

SCREW,TAPPING,5X16

92009-1264

$2.51

92145

SPRING,REAR BRAKE SWITCH

92145-0471

$5.03

92153

BOLT,FLANGED,6X30

92153-1425

$1.81

92153A

BOLT,TORX,6X16

92153-1426

$3.51
