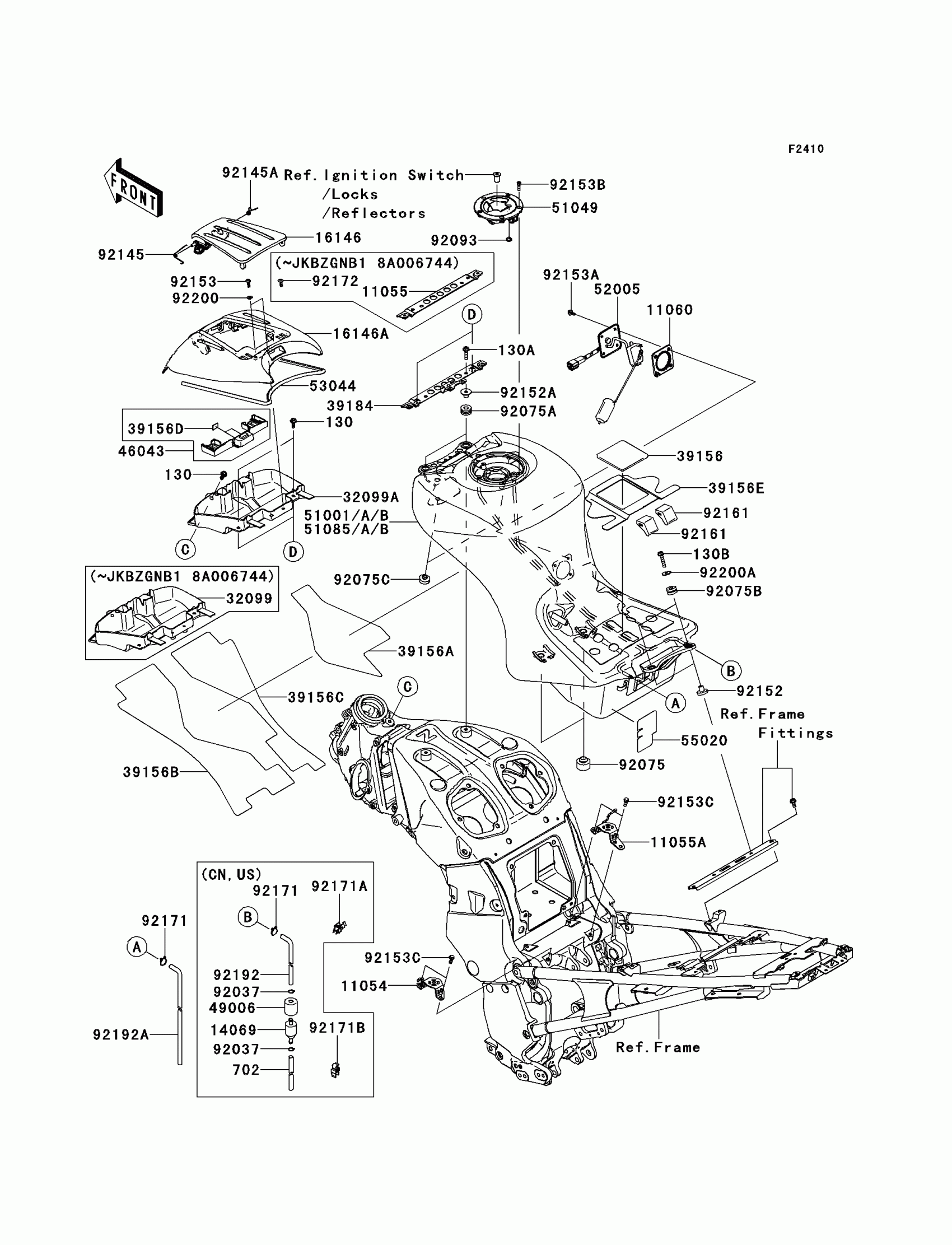

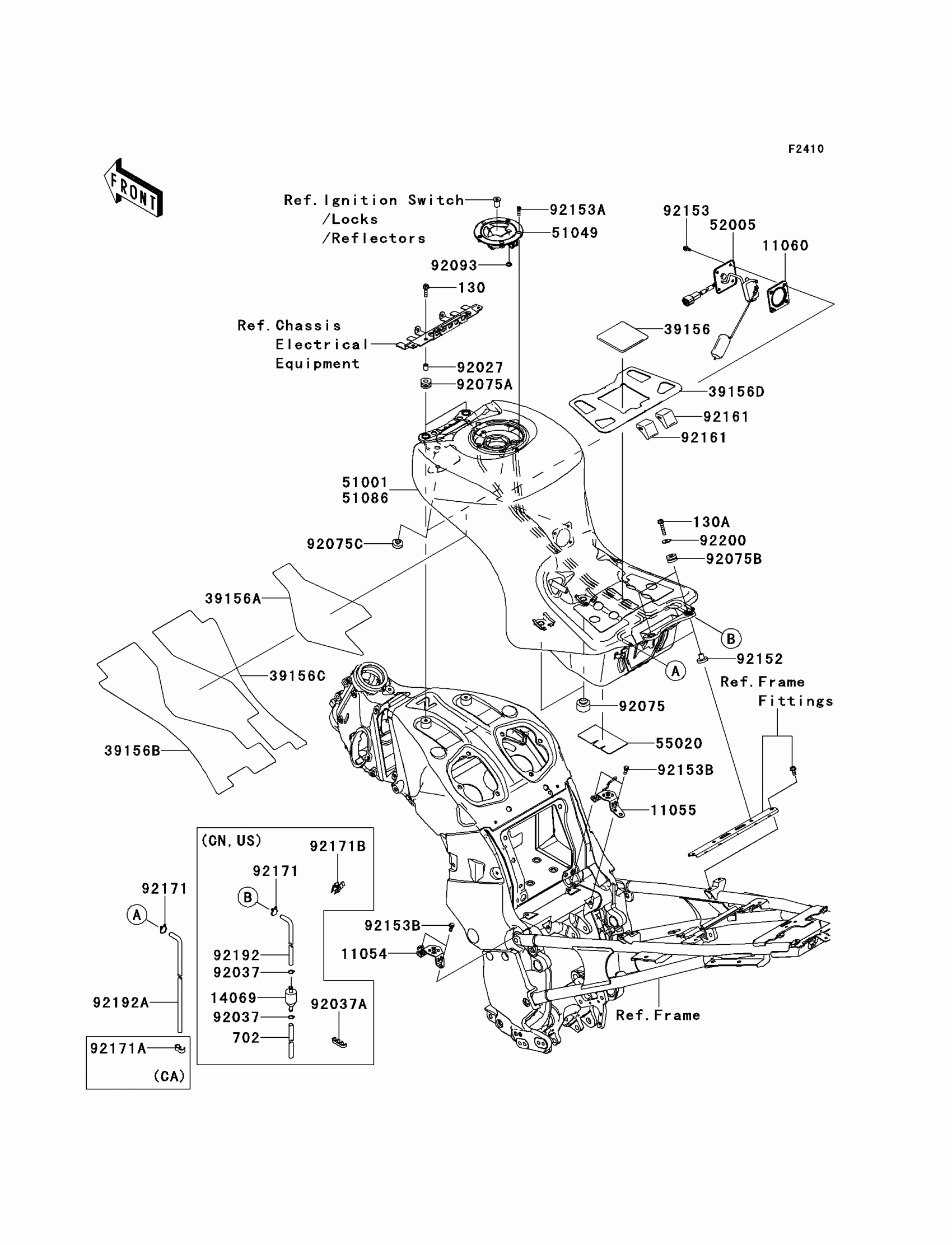

Kawasaki Concours™ 14 Fuel Tank Diagram

#

Description
Price

11054

BRACKET,FUEL TANK,CNT,LH

11054-0681

$9.37

11055A

BRACKET,FUEL TANK,CNT,RH

11055-0348

$16.39

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

16146

COVER-ASSY

16146-0081

$35.93

16146A

COVER-ASSY

16146-0084

$119.86

32099A

CASE

32099-0039

$95.50

39156

PAD,SEAT

39156-0129

$5.36

39156A

PAD,FUEL TANK,CNT

39156-0147

$8.76

39156B

PAD,FUEL TANK,LH

39156-0173

$45.07

39156C

PAD,FUEL TANK,RH

39156-0174

$45.07

39156D

PAD

39156-0176

$1.66

39156E

PAD,FUEL TANK

39156-0373

Unavailable

39184

BRACKET-ASSY,CASE

39184-0012

$31.36

46043

KNOB-ASSY

46043-0005

$42.71

51049

CAP-TANK,FUEL

51049-0012

Unavailable

52005

GAUGE,FUEL

52005-0026

$220.16

53044

TRIM

53044-0028

$43.10

55020

GUARD,FUEL TANK

55020-0290

$16.36

92075

DAMPER

92075-015

$3.81

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER RUBBER,RR FENR

92075-209

$3.57

92075C

DAMPER,9X24X14

92075-281

$4.67

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92145

SPRING

92145-0474

$5.46

92145A

SPRING

92145-0475

$5.46

92152

COLLAR

92152-0364

$10.85

92152A

COLLAR

92152-0365

$1.04

92153

BOLT,SOCKET,5X16

92153-1244

$1.73

92153A

BOLT,FLANGED,5X12

92153-1421

$1.32

92153B

BOLT,SOCKET,5X16

92153-1616

$1.04

92153C

BOLT,FLANGED,6X20

92153-1694

$1.81

92161

DAMPER

92161-0458

$8.85

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X25

130BA0625

$0.97

130B

BOLT-FLANGED,6X30

130BA0630

$1.13

92192A

TUBE,DRAIN

92192-0693

$19.49

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,6.5X20X1.6

92200-0283

$1.08

14069

BREATHER

14069-1051

$7.76

51001

TANK-COMP-FUEL,M.D.BLACK

51001-0216-17K

Unavailable

51001B

TANK-COMP-FUEL,C.D.RED

51001-0216-25T

Unavailable

51085

TANK-COMP-FUEL,M.D,BLACK

51085-5280-17K

$1,297.61

51085B

TANK-COMP-FUEL,C.D.RED

51085-5280-25T

$1,297.61

92037

CLAMP,TUBE

92037-147

$5.61

92171

CLAMP

92171-0573

$1.20

92171

CLAMP

92171-0573

$1.20

92171A

CLAMP

92171-1708

$4.31

702

TUBE-RUBBER,7X10X200

702A07200

$10.11

92171B

CLAMP

92171-1709

$4.19

92192

TUBE

92192-0611

$16.46
