Partiron

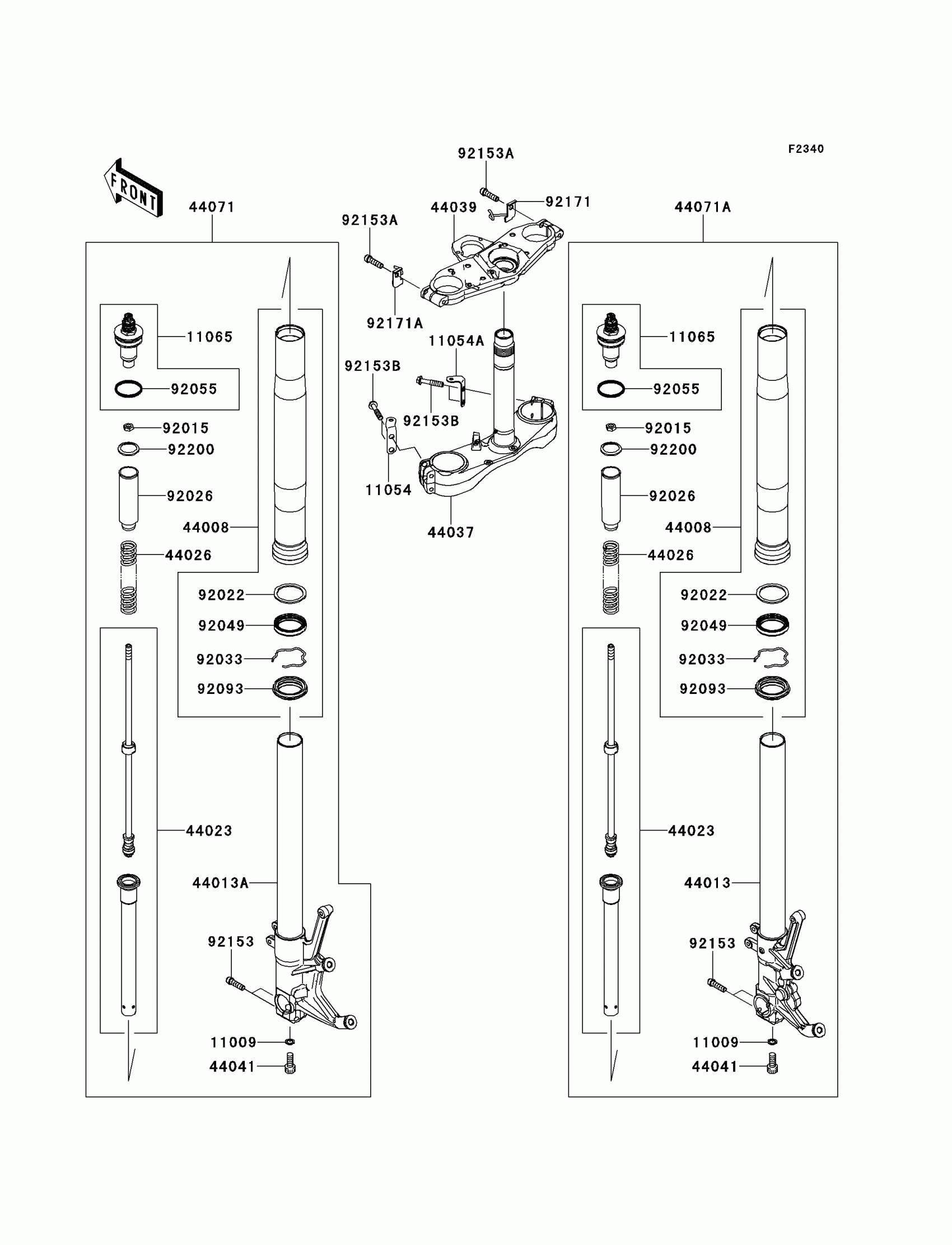

Kawasaki Concours™ 14 Front Fork Diagram

#

Description
Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

11054

BRACKET,HARNESS CLAMP,LH

11054-0480

$9.93

11054A

BRACKET,UNDER BRACKET,RH

11054-1223

$10.58

11065

CAP,FORK,GRAY

11065-0337-11G

$177.43

44008

PIPE-FORK OUTER,SILVER

44008-0052-KX

$514.12

44013

PIPE-FORK INNER,RH,F.S.BLACK

44013-0151-18R

$707.20

44013A

PIPE-FORK INNER,LH,F.S.BLACK

44013-0155-18R

$649.05

44023

CYLINDER-SET-FORK

44023-0081

$452.30

44026

SPRING-FRONT FORK

44026-0107

$164.97

44037

HOLDER-FORK UNDER

44037-0061

$767.18

44039

HOLDER-FORK UPPER,P.SILVER

44039-0052-458

$338.67

44041

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

44071

DAMPER-ASSY,FORK,LH,SILVER

44071-5106

$1,246.91

44071A

DAMPER-ASSY,FORK,RH,SILVER

44071-5108

$1,331.25

92015

NUT

92015-1795

$4.85

92022

WASHER

92022-1299

$6.55

92026

SPACER,FORK

92026-0045

$10.65

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL,FORK OUTER TUBE

92049-1522

$18.69

92055

RING-O,FORK,AIR TUBE

92055-1333

$4.53

92093

SEAL,FORK OUTER TUBE

92093-1480

$14.02

92153

BOLT,SOCKET,8X40

92153-0006

$2.27

92153A

BOLT,SOCKET,8X40

92153-0506

$7.46

92153B

BOLT,FLANGED,8X40

92153-1884

$7.84

92171

CLAMP,CABLE,RH

92171-1632

$13.49

92171A

CLAMP,CABLE,LH

92171-1634

$13.49

92200

WASHER

92200-0085

$7.51
