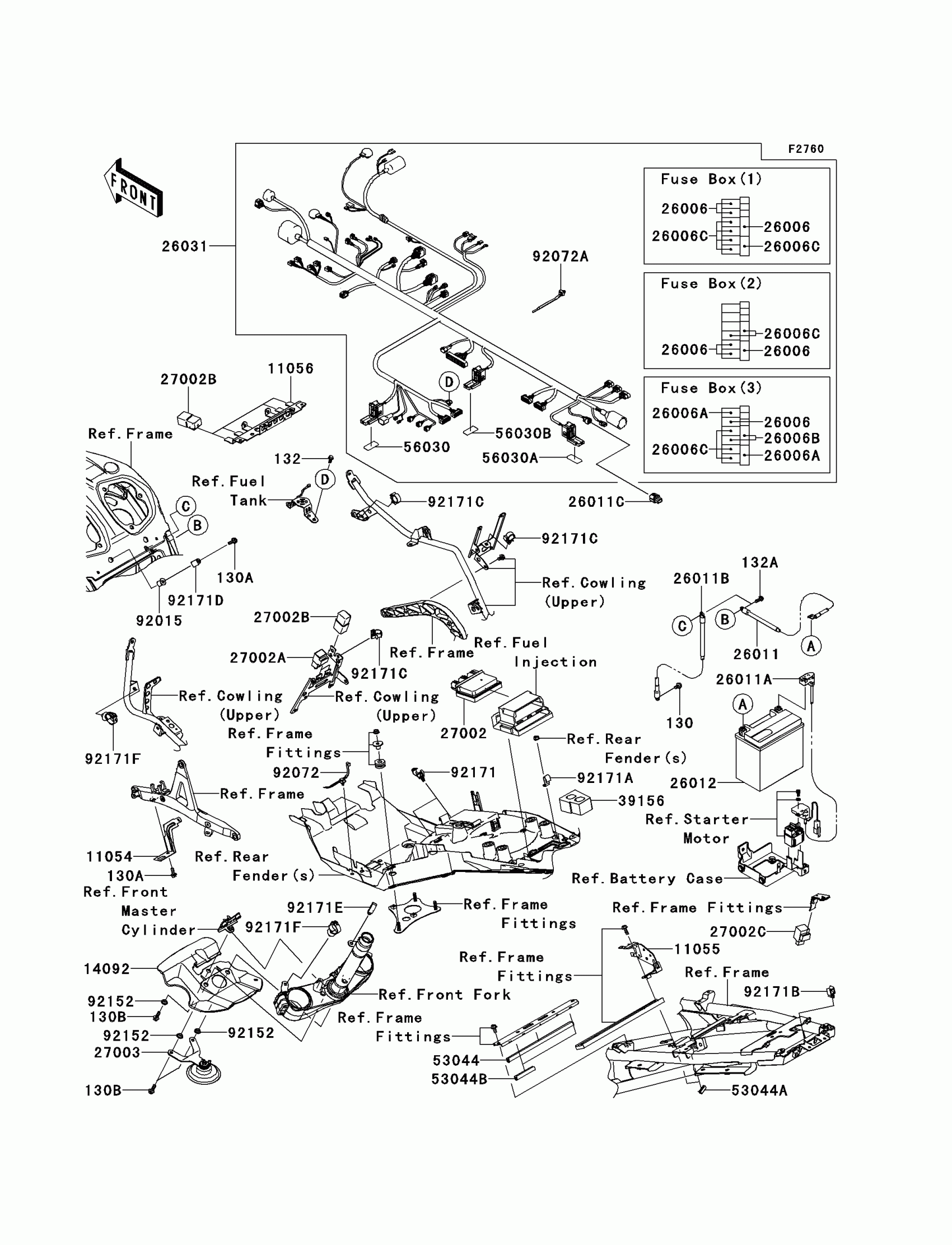

Kawasaki Concours™ 14 Chassis Electrical Equipment Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X18

130BA0618

$1.17

11054

BRACKET,SUB FRAME,FR

11054-1131

$8.85

11055

BRACKET,COUPLER

11055-1824

$23.41

11056

BRACKET,RELAY

11056-0152

$28.68

14092

COVER,RADIATOR

14092-0021

$45.23

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.32

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26011

WIRE-LEAD,BATTERY(-)

26011-0087

$30.00

26011A

WIRE-LEAD,BATTERY(+)

26011-0120

$57.94

26011B

WIRE-LEAD,BATTERY(-)

26011-0255

$30.33

26011C

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26012

BATTERY,FTZ14-BS,12V 14AH

26012-1409

Unavailable

26031

HARNESS,MAIN

26031-0911

$1,331.58

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-0012

$43.03

27002B

RELAY-ASSY

27002-1086

$32.97

27002C

RELAY-ASSY,TURN SIGNAL

27002-1090

$84.30

27003

HORN

27003-0069

$82.19

39156

PAD

39156-0597

$6.69

53044

TRIM,L=220

53044-0022

$12.95

53044A

TRIM,L=22

53044-0031

$2.71

53044B

TRIM,L=60

53044-1249

$5.71

56030

LABEL,FUSE BOX1

56030-0110

$3.58

56030A

LABEL,FUSE BOX

56030-0112

$3.76

56030B

LABEL,FUSE BOX3

56030-0363

$3.88

92015

NUT

92015-1700

$6.55

92072

BAND

92072-0066

$2.71

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92152

COLLAR,6.5X10X5.6

92152-0445

$3.74

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.29

92171A

CLAMP,HARNESS

92171-0255

$7.75

92171B

CLAMP

92171-0290

$3.29

92171C

CLAMP

92171-0782

$3.51

92171D

CLAMP

92171-0813

$8.46

92171E

CLAMP

92171-0864

$4.14

92171F

CLAMP

92171-1706

$10.34

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16
